To fit

  1. Slide in the parcel shelf trim, ensure that the locating lugs fully engage in their mountings on the parcel shelf panel.

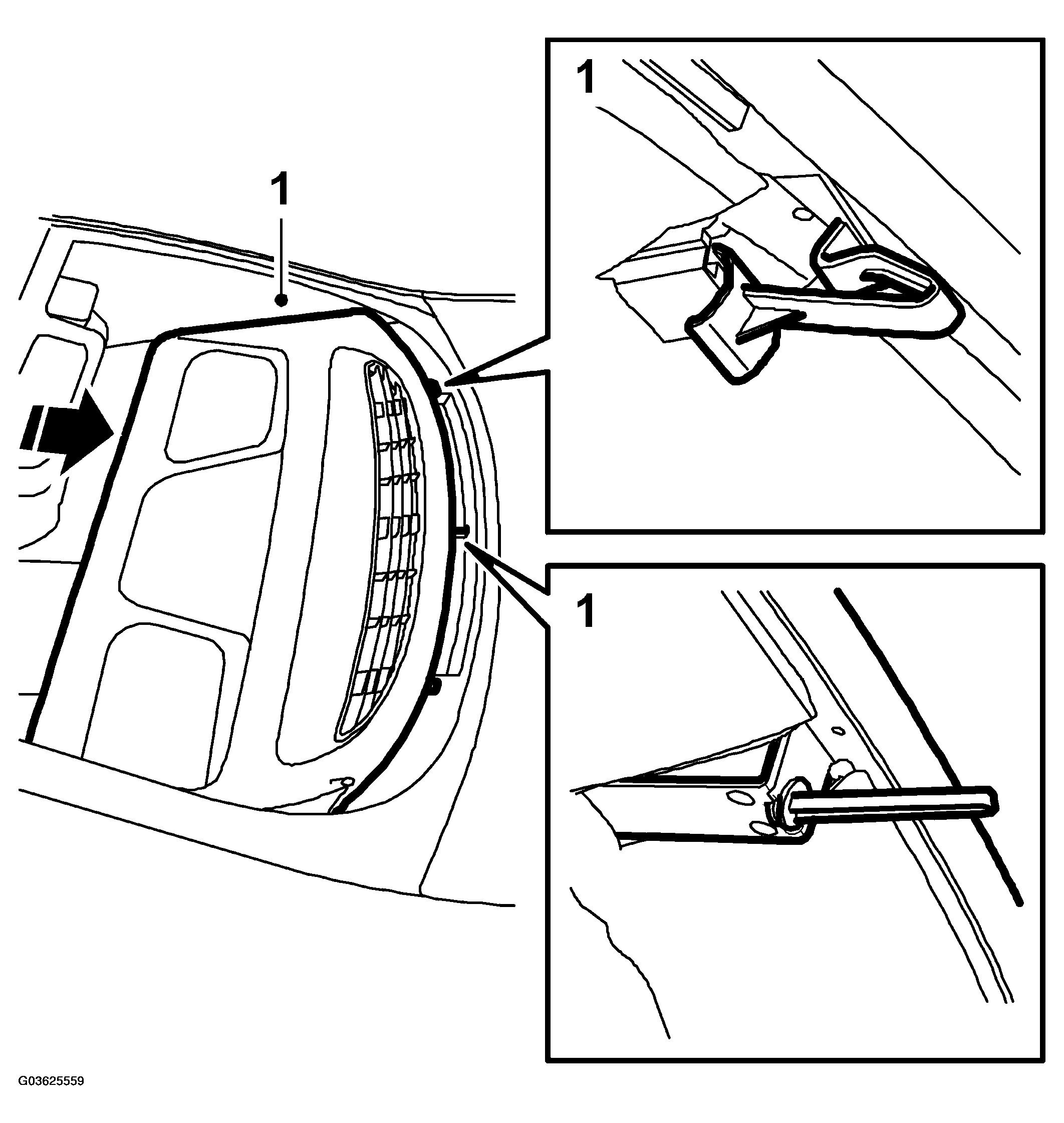

    Fig 1: Illustration For Step 1
    G03625559Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the parcel shelf trim clips.

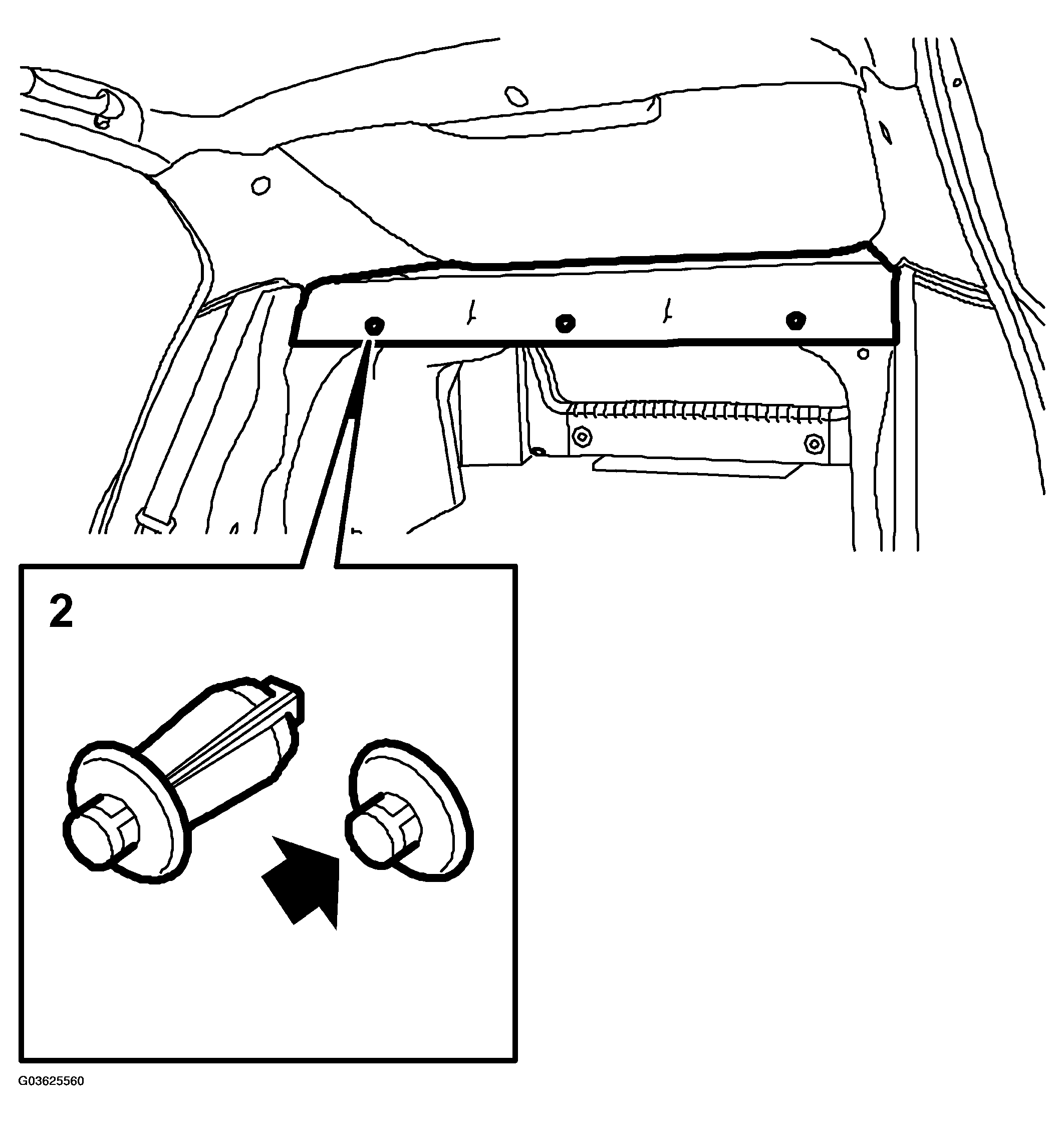

    Fig 2: Illustration For Step 2
    G03625560Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Raise the backrest. Check that the back rests are locked.
