Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Glove box >> To remove

To remove

  1. Remove the lower glove box screws.

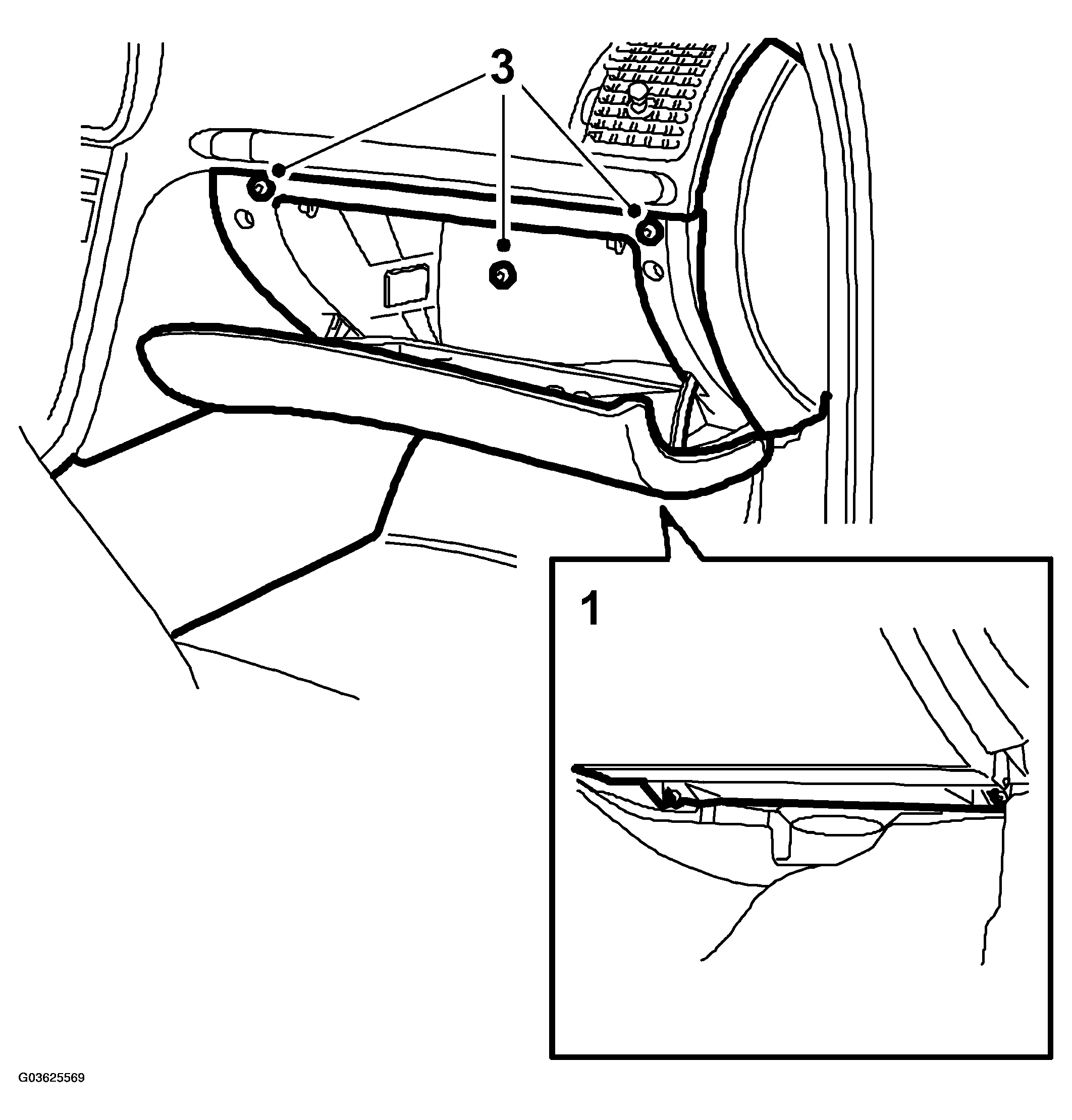

    Fig 1: Illustration For Steps 1, 3
    G03625569Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Open the glove box.
  3. Remove the upper screws and the screws inside the glove box.
  4. Lift out the glove box.
  5. Disconnect the glove box lighting cables.

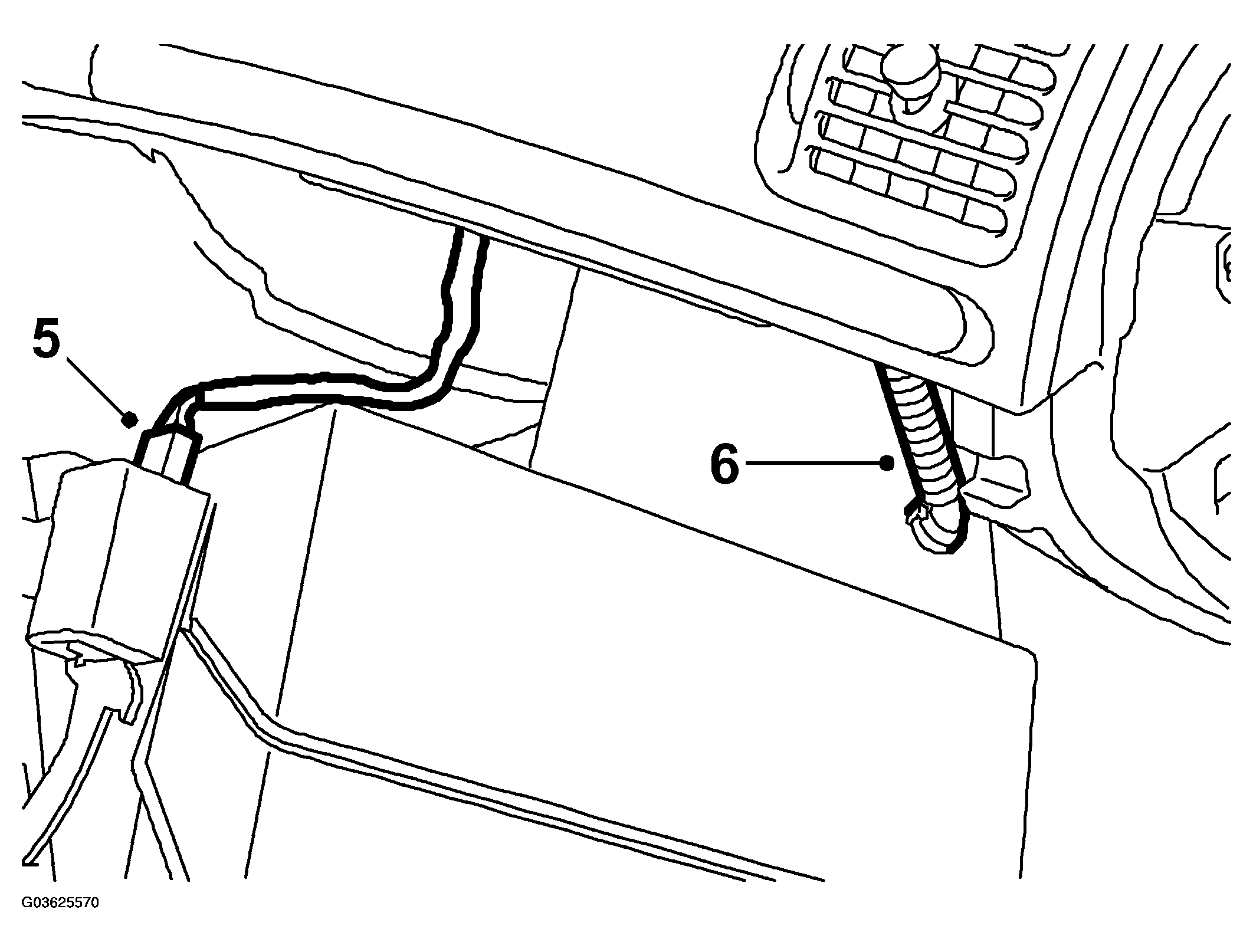

    Fig 2: Illustration For Steps 5-6
    G03625570Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. For vehicles with ACC:

    Detach the cooling hose from the glove box.
