To fit

  1. For vehicles with ACC:

    Attach the cooling hose to the glove box.

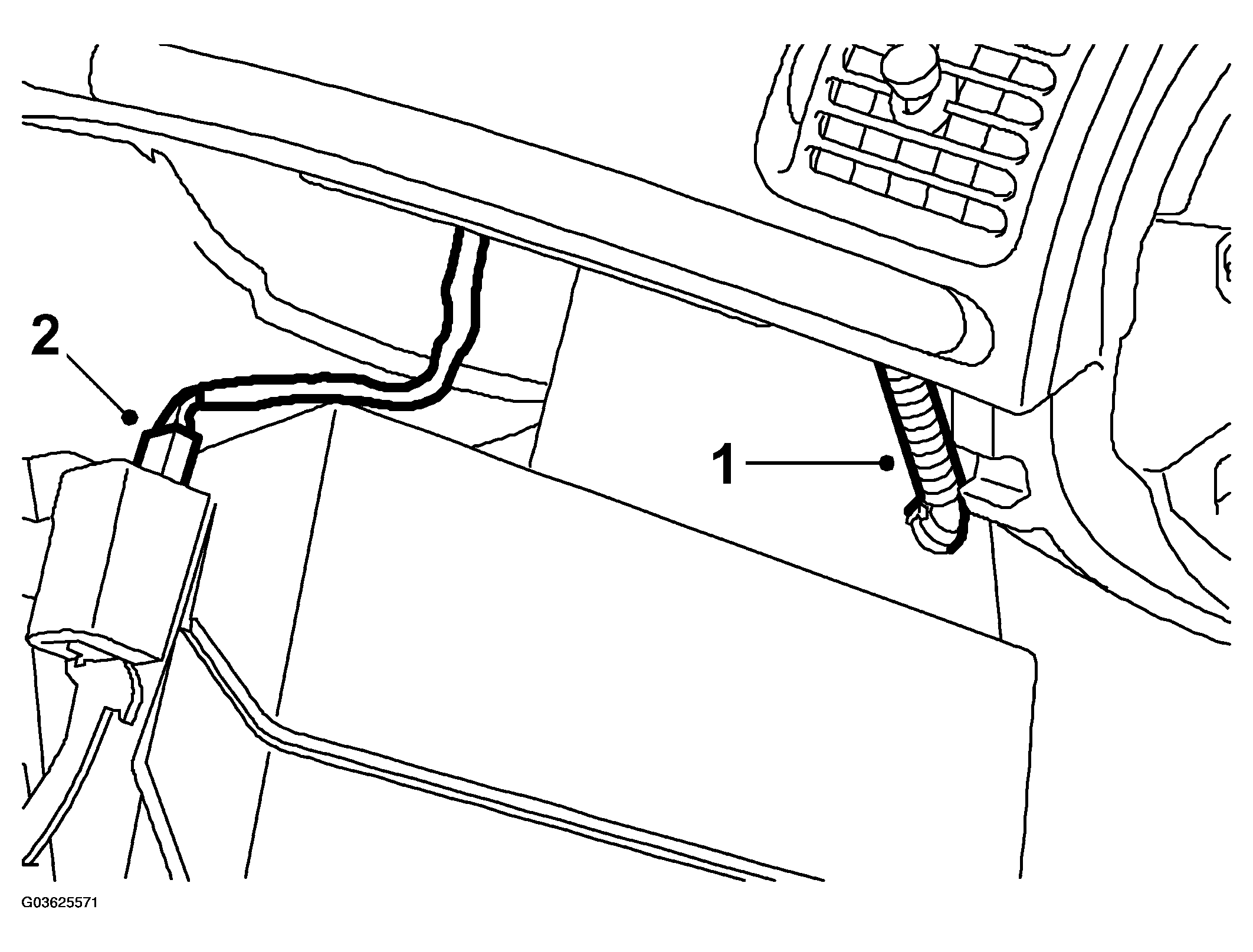

    Fig 1: Illustration For Steps 1-2
    G03625571Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the glove box lighting cables.
  3. Insert the glove box.
  4. Fit the inside and upper glove box mounting screws.

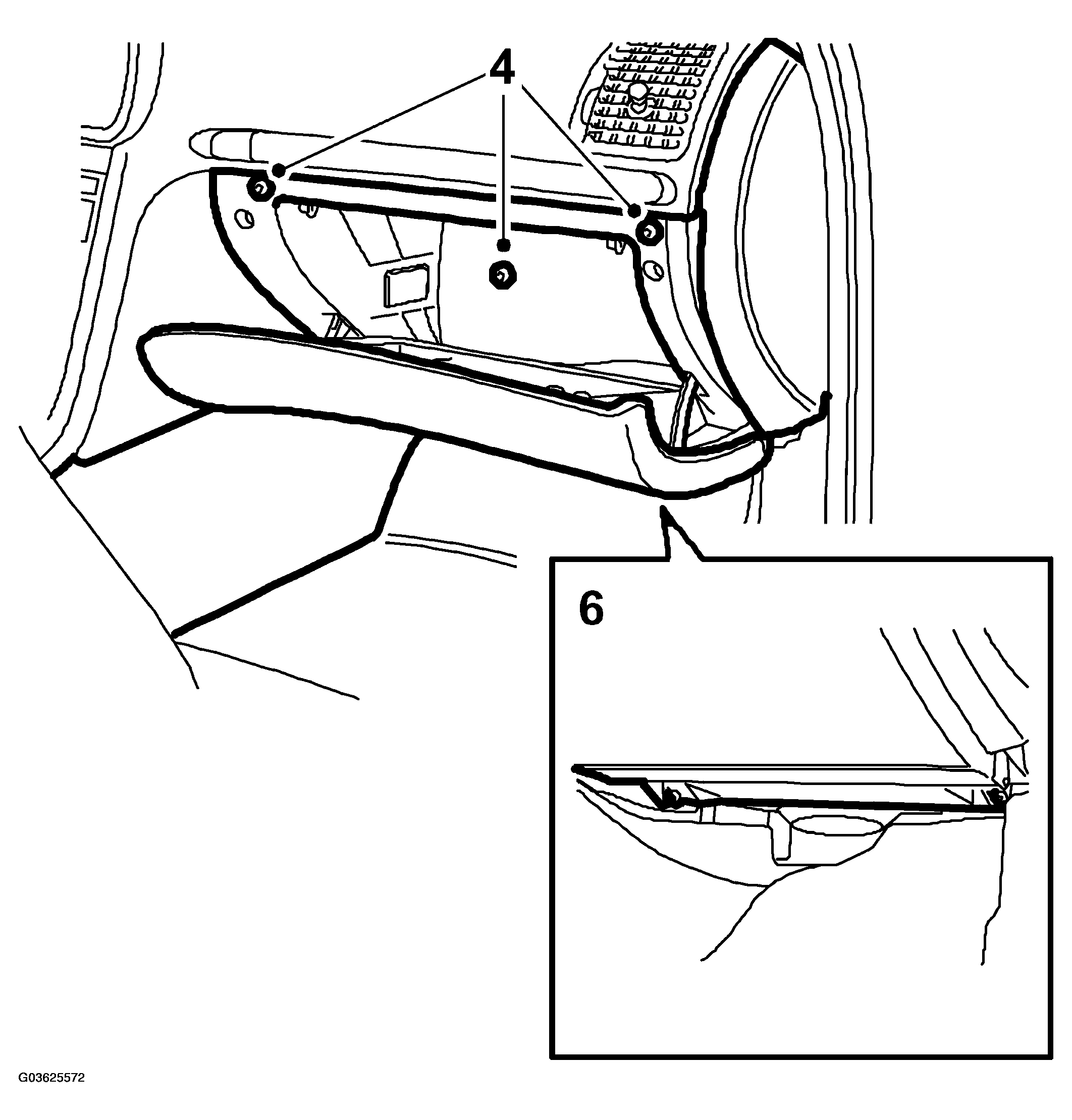

    Fig 2: Illustration For Steps 4, 6
    G03625572Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Shut the glove box.
  6. Fit the lower glove box screws.
