To remove

  1. Remove the GLOVE BOX ..

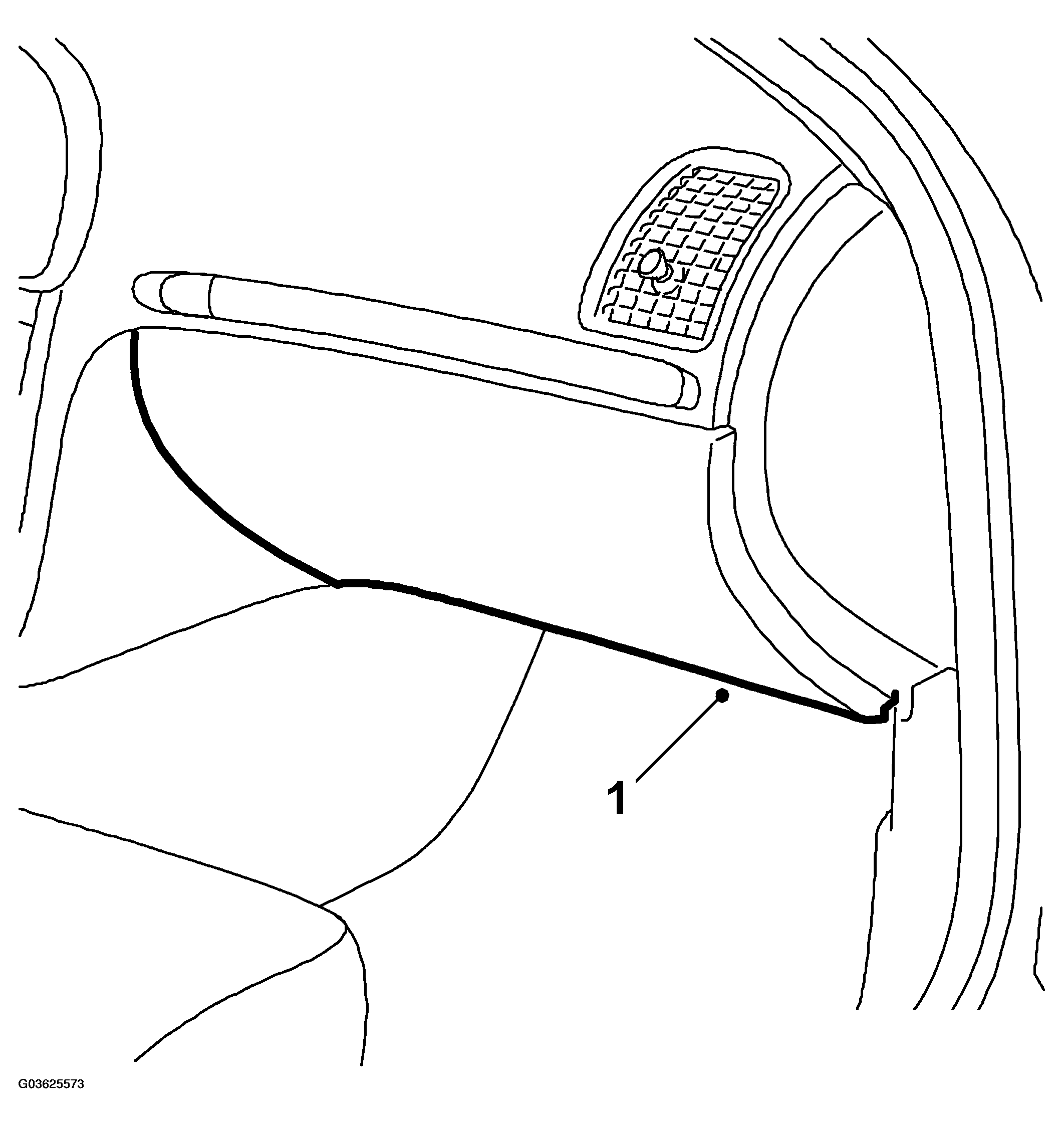

    Fig 1: Illustration For Step 1
    G03625573Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws from the glove box lock.

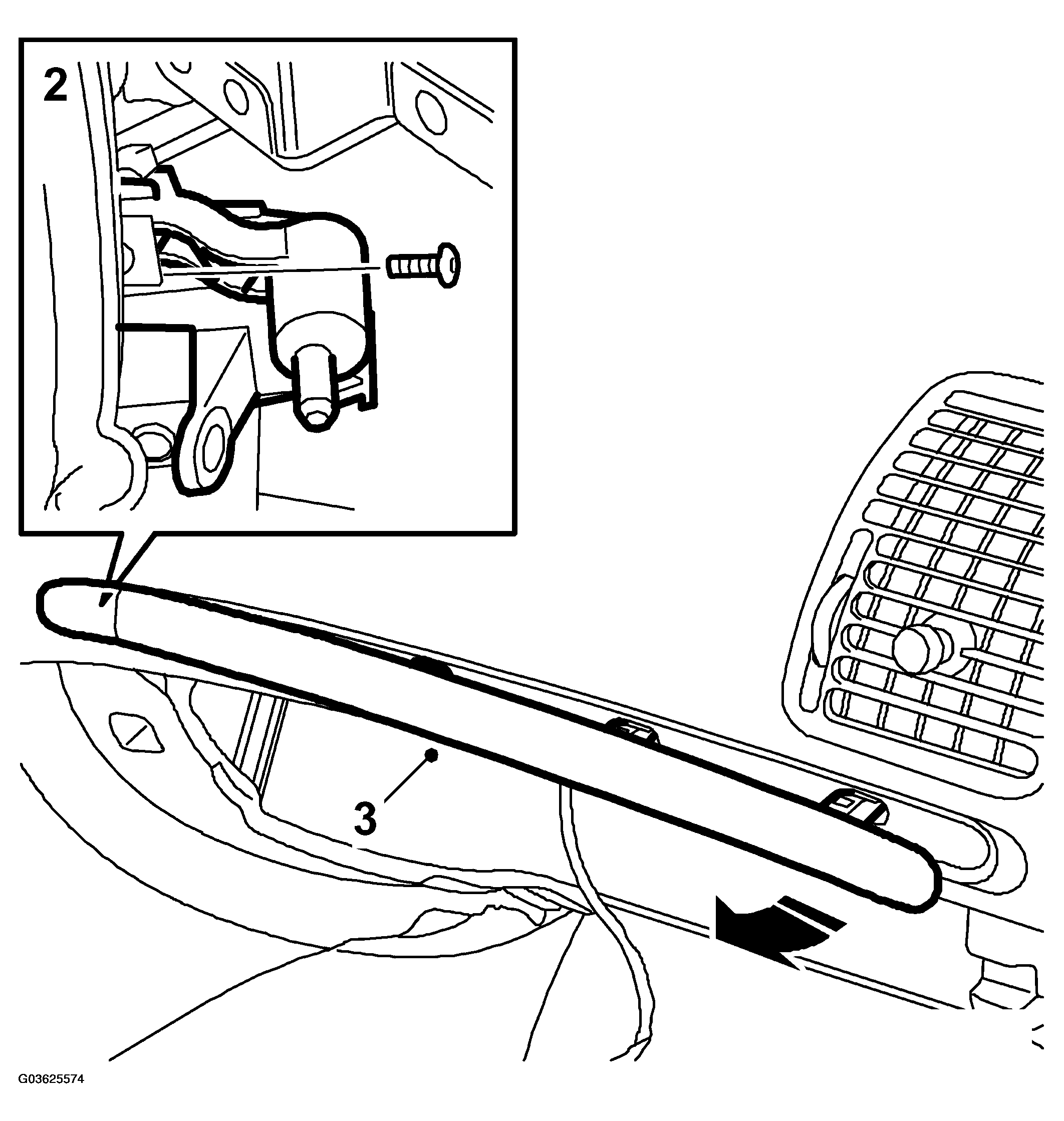

    Fig 2: Illustration For Step 3
    G03625574Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the dashboard trim moulding by pushing out the trim clips from the inside of the dashboard.
