Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Dashboard cup holder >> To fit

To fit

  1. Cars with OnStar panel:  Fit the OnStar panel to the cup holder.
  2. Cars with OnStar panel:  Insert the cup holder into the dashboard and connect the OnStar panel.
  3. Fit the cup holder into dashboard. Make sure the catches engage.

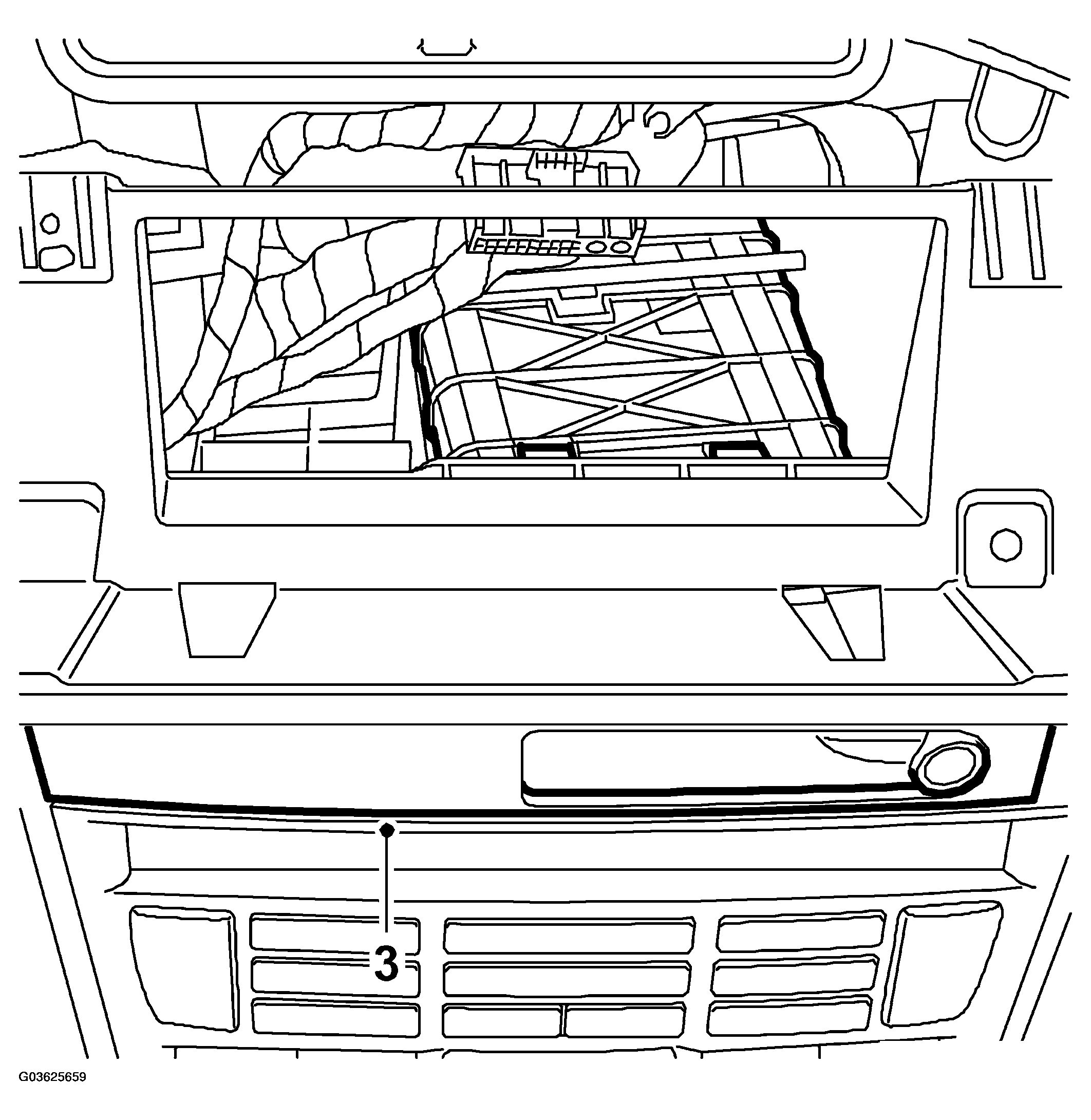

    Fig 1: Illustration For Step 3
    G03625659Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the MIU frame.
