Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Courtesy handle >> To remove

To remove

  1. Remove the end pieces from the courtesy handle. Use 82 93 474 REMOVAL TOOL  and prise outwards.

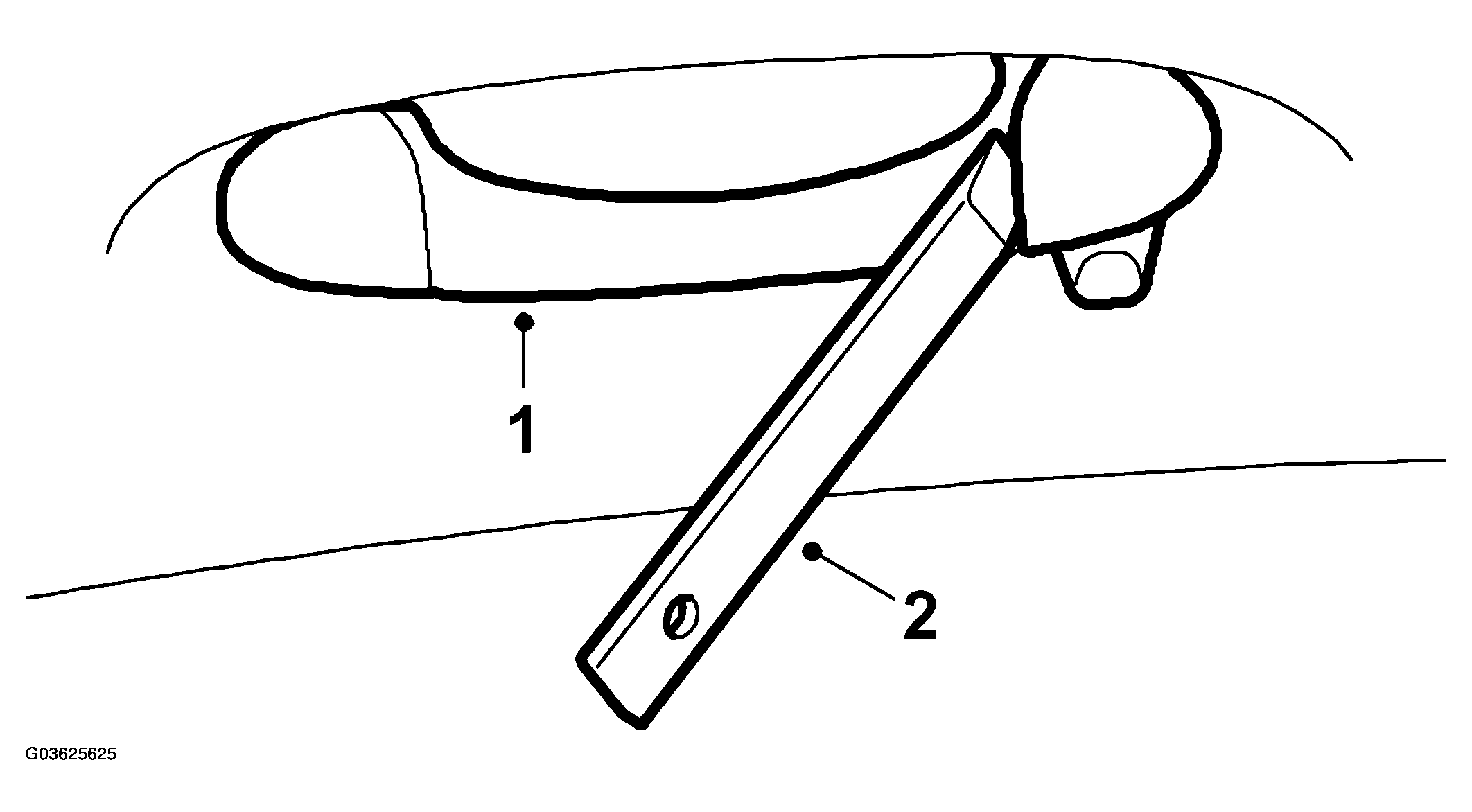

    Fig 1: Illustration For Steps 1-2
    G03625625Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Pull the courtesy handle straight out.
