Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> C-pillar trim >> To remove

To remove

  1. Fold down the rear seat back rest.
  2. Remove the PARCEL SHELF TRIM .
  3. Remove the screw cover from the C-pillar trim. Use 82 93 474 REMOVAL TOOL .

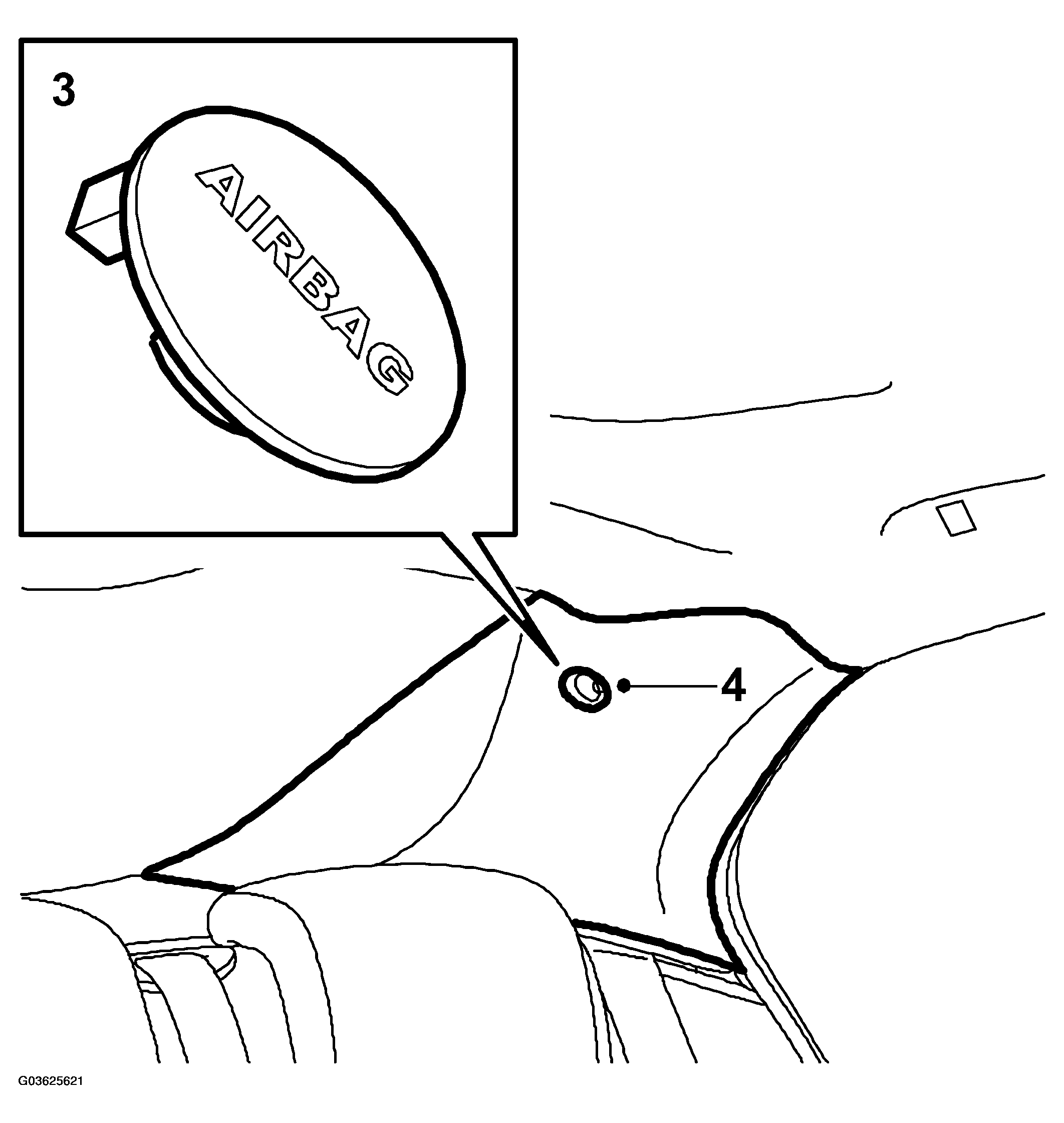

    Fig 1: Illustration For Steps 3-4
    G03625621Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the screw from the C-pillar trim.
  5. Remove the C-pillar trim by pulling the trim straight out to release the clips from the C-pillar.
