To fit

  1. Put the C-pillar trim in place and press it onto the two clips.
    WARNING: Take care not to damage the inflatable curtain.
    Any damage can prevent the inflatable curtain from providing the intended protection for passengers in the event of a collision.
  2. Tighten the screws.

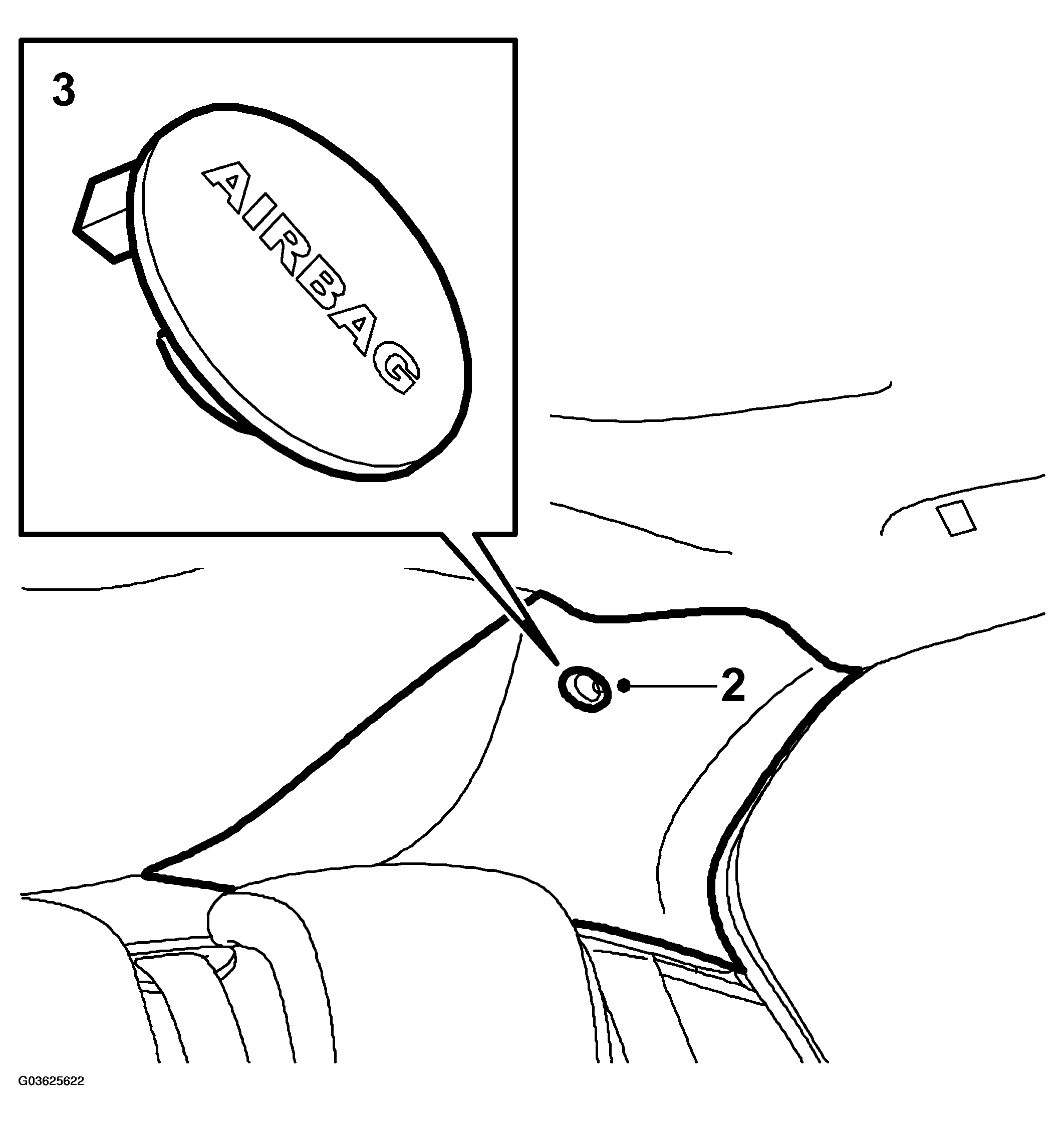

    Fig 1: Illustration For Steps 2-3
    G03625622Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 2 Nm (1 lbf ft)

  3. Fit the cover plate to the C-pillar trim.
  4. Fit the PARCEL SHELF TRIM .
  5. Raise the rear seat back-rest.
