Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Boot lid trim >> To remove

To remove

  1. Open the boot lid.
  2. Remove the inside handle.

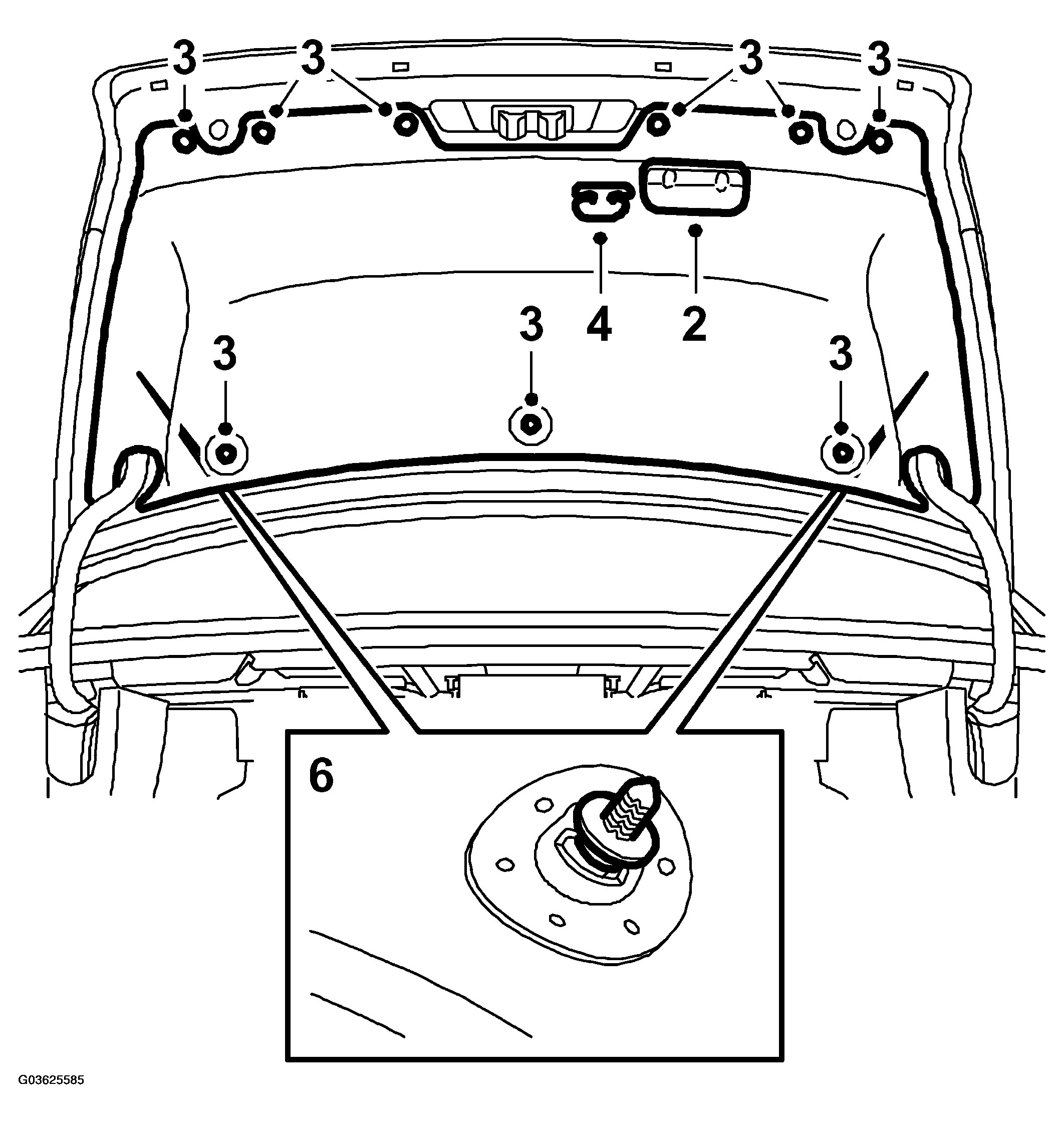

    Fig 1: Illustration For Steps 2-4, 6
    G03625585Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the trim clips.
  4. US/CA: Detach the emergency opening handle from the trim. Detach the wire from the handle.
  5. Slightly fold aside the trim from the lock cover.
  6. Free the trim clips.
  7. Remove the trim from the boot lid.
