To fit

  1. Lift up the trim.
  2. US/CA: Manoeuvre the wire of the emergency opening handle in through the trim.
  3. Guide the trim in towards the lock cover.
  4. Guide in and fasten the locating clips.

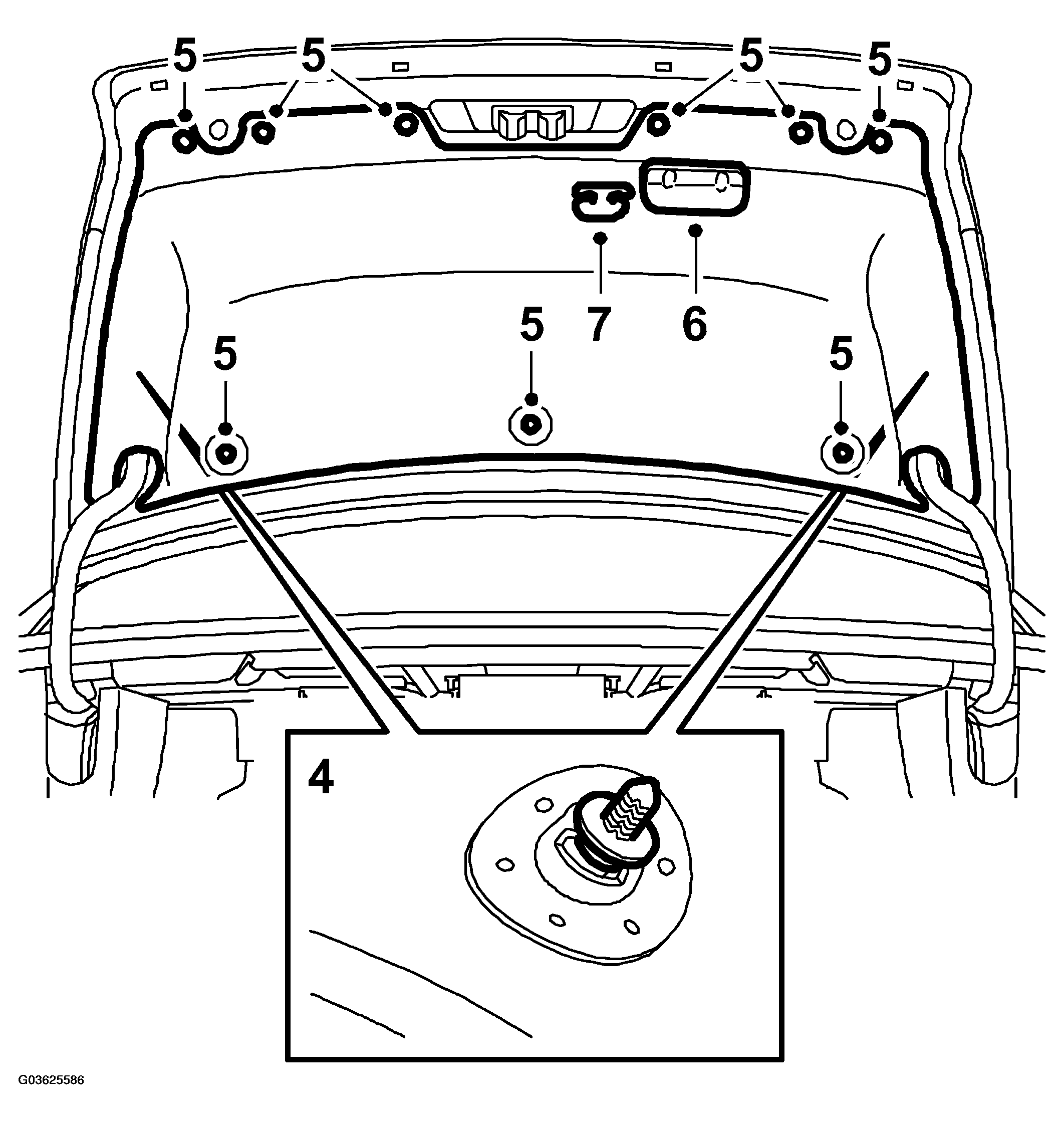

    Fig 1: Illustration For Steps 4-7
    G03625586Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the clips.
  6. Fit the inner handle.
  7. US/CA: Assemble the emergency opening handle to the wire. Fit the handle to the trim. Check that the emergency opening handle functions correctly.
  8. Shut the boot lid.
