To remove

  1. Move the seat all the way forward and tip the backrest forward.
  2. Remove the cover and seatbelt mounting from the seat.

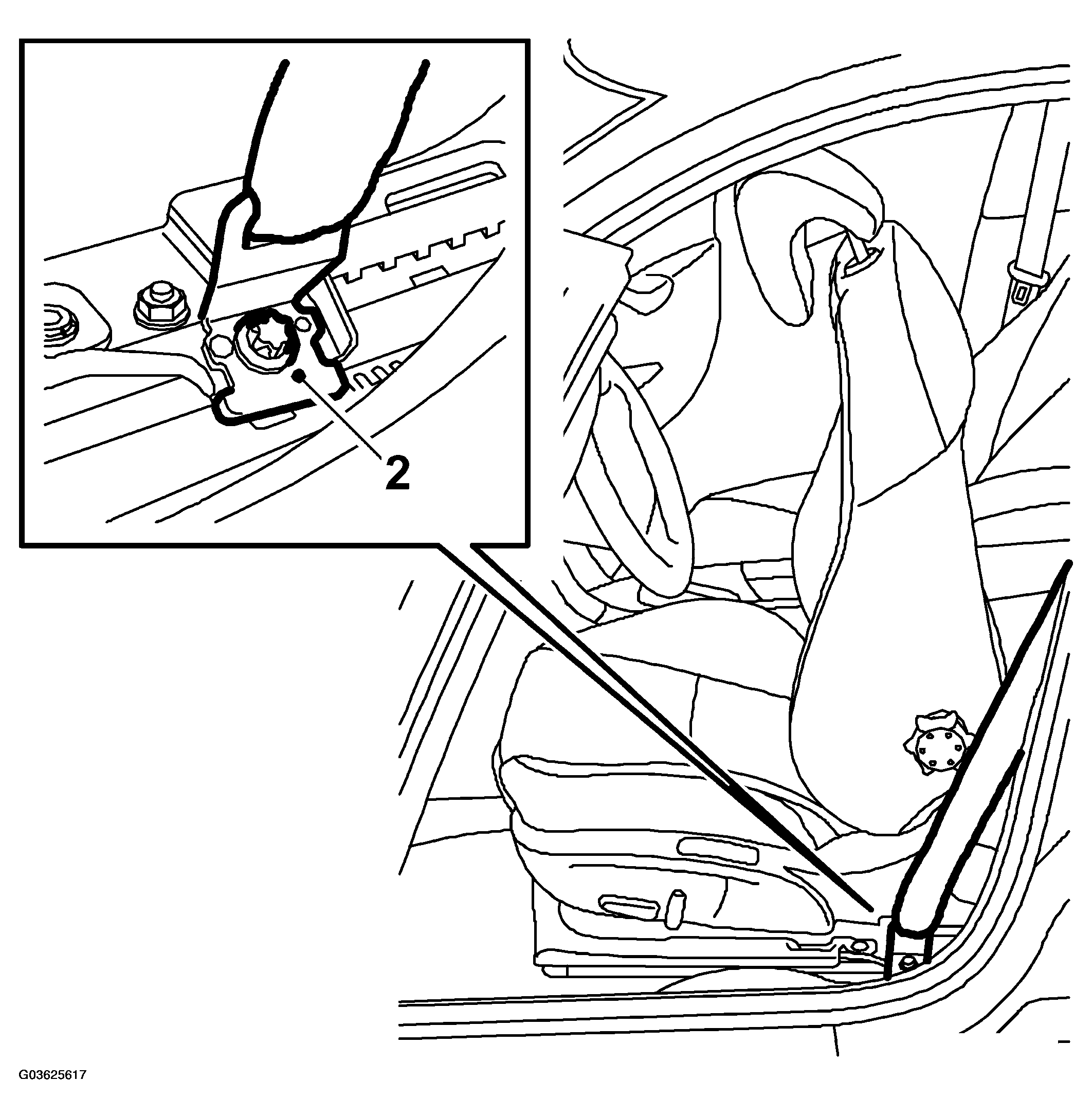

    Fig 1: Illustration For Step 2
    G03625617Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the rear seat by lifting it at its front edge. Remove the seat.
  4. Remove the front and rear scuff plates. Lift up the bottom edge of the backrest bolster to remove the rear scuff plate.

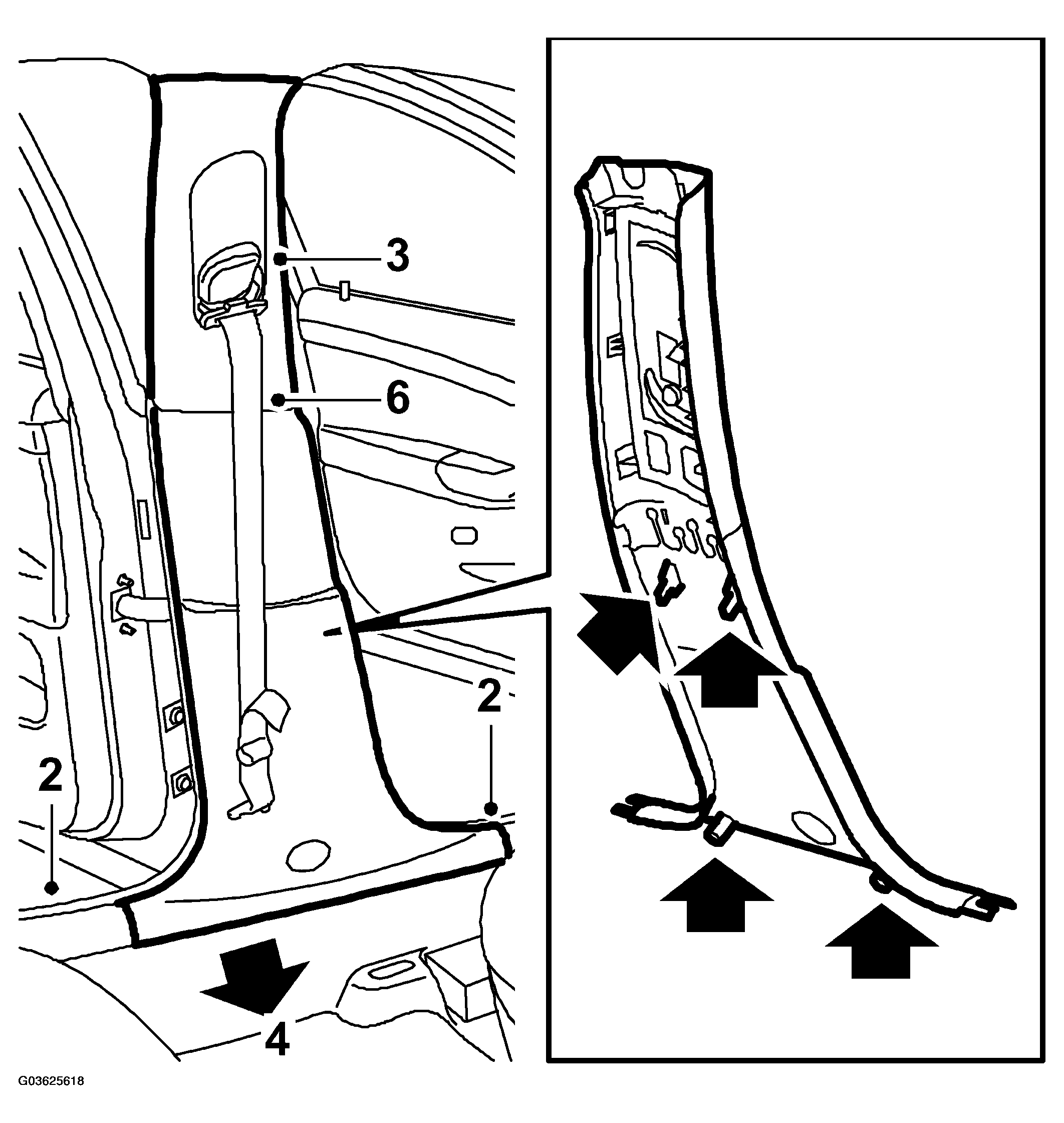

    Fig 2: Illustration For Steps 2-4, 6
    G03625618Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Adjust the belt height to the lowest position.
  6. Remove the B-pillar trim by pulling outwards from the bottom.
  7. Maneuver the B-pillar trim downwards.
  8. Thread the belt out through the belt slot.
