To fit

  1. Thread the belt in through the belt slot in the B-pillar trim.

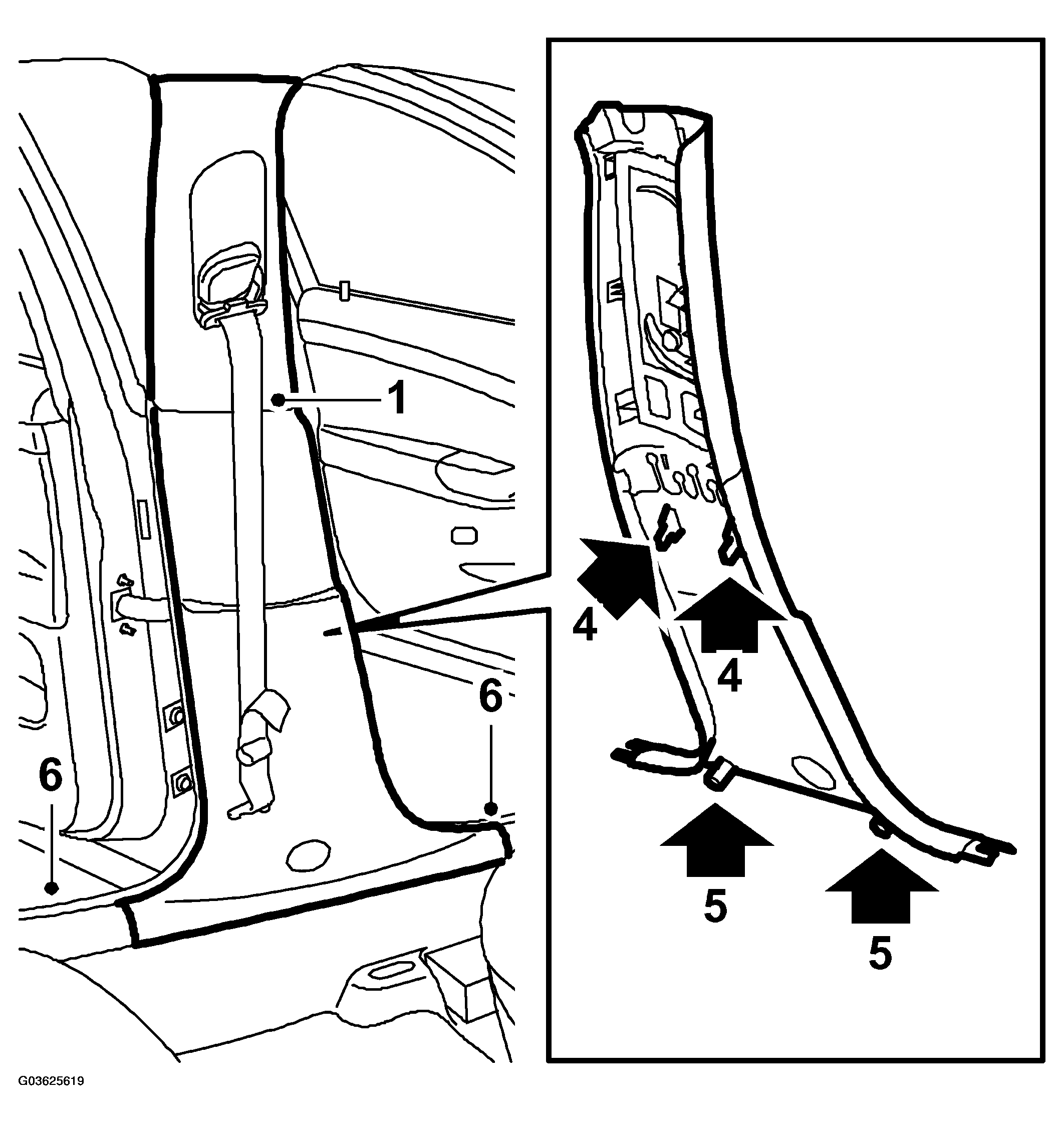

    Fig 1: Illustration For Steps 1, 4-6
    G03625619Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Push up the upper section of the B-pillar trim so that it engages in the fastenings on the headlining.
  3. Adjust the trim vertically so that it aligns with the B-pillar.
  4. Push in the trim against the middle of the B-post so as to engage the centre clip.

    Ensure that the clip engages correctly.

  5. Push in the trim at the bottom so as to engage the lower clip. Be careful not pinch the rubber moulding around the door frame.
  6. Fit the seatbelt mounting and cover to the seat.

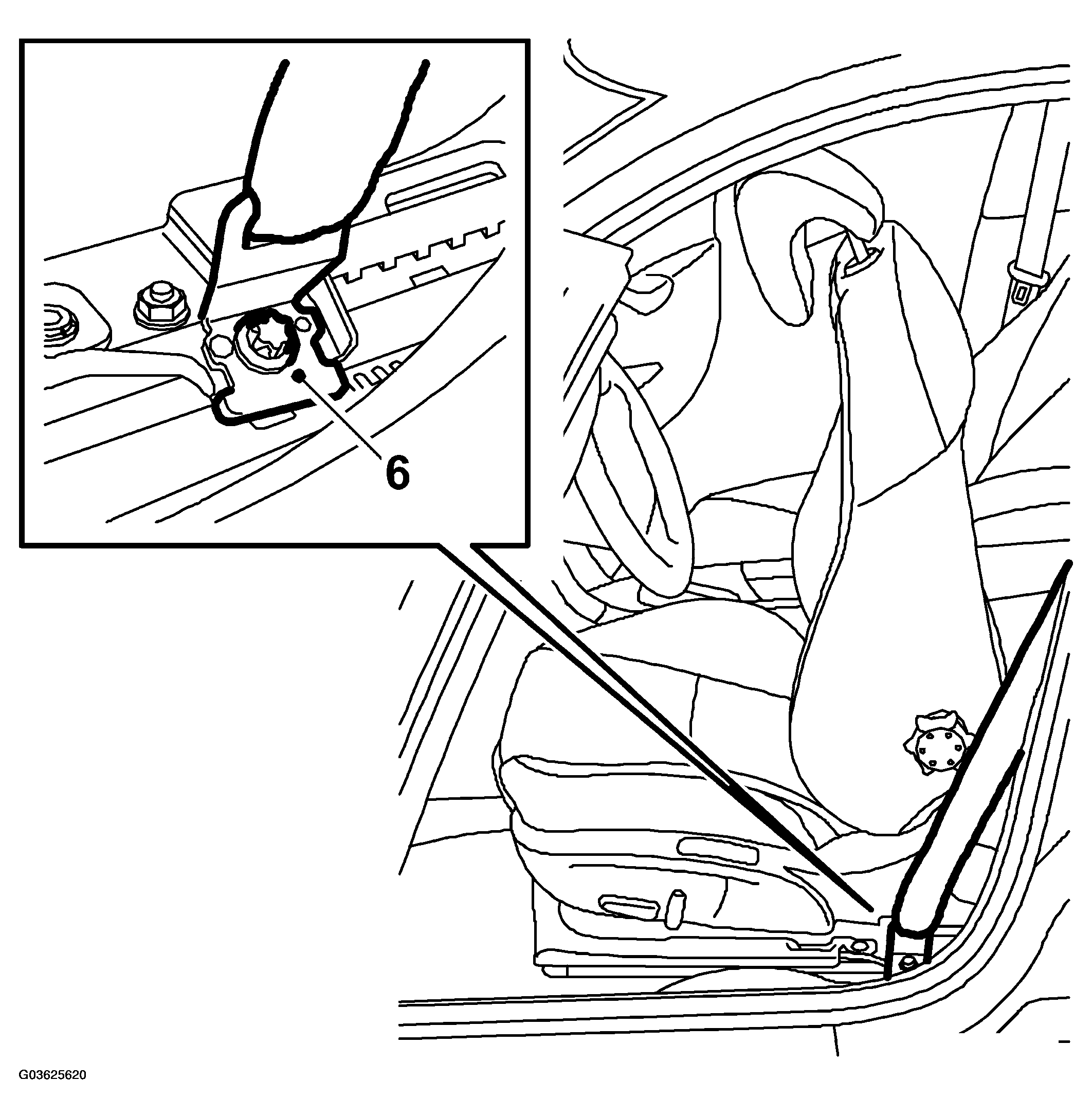

    Fig 2: Illustration For Step 6
    G03625620Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the forward scuff plate, 4 clips. Fit the rear scuff plate by guiding its rear section up behind the bolster. Secure the bolster by engaging its fixing lug.
  8. Fit the rear seat.
