Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Ashtray >> To fit

To fit

  1. Reconnect the cigarette lighter and lighting connections.

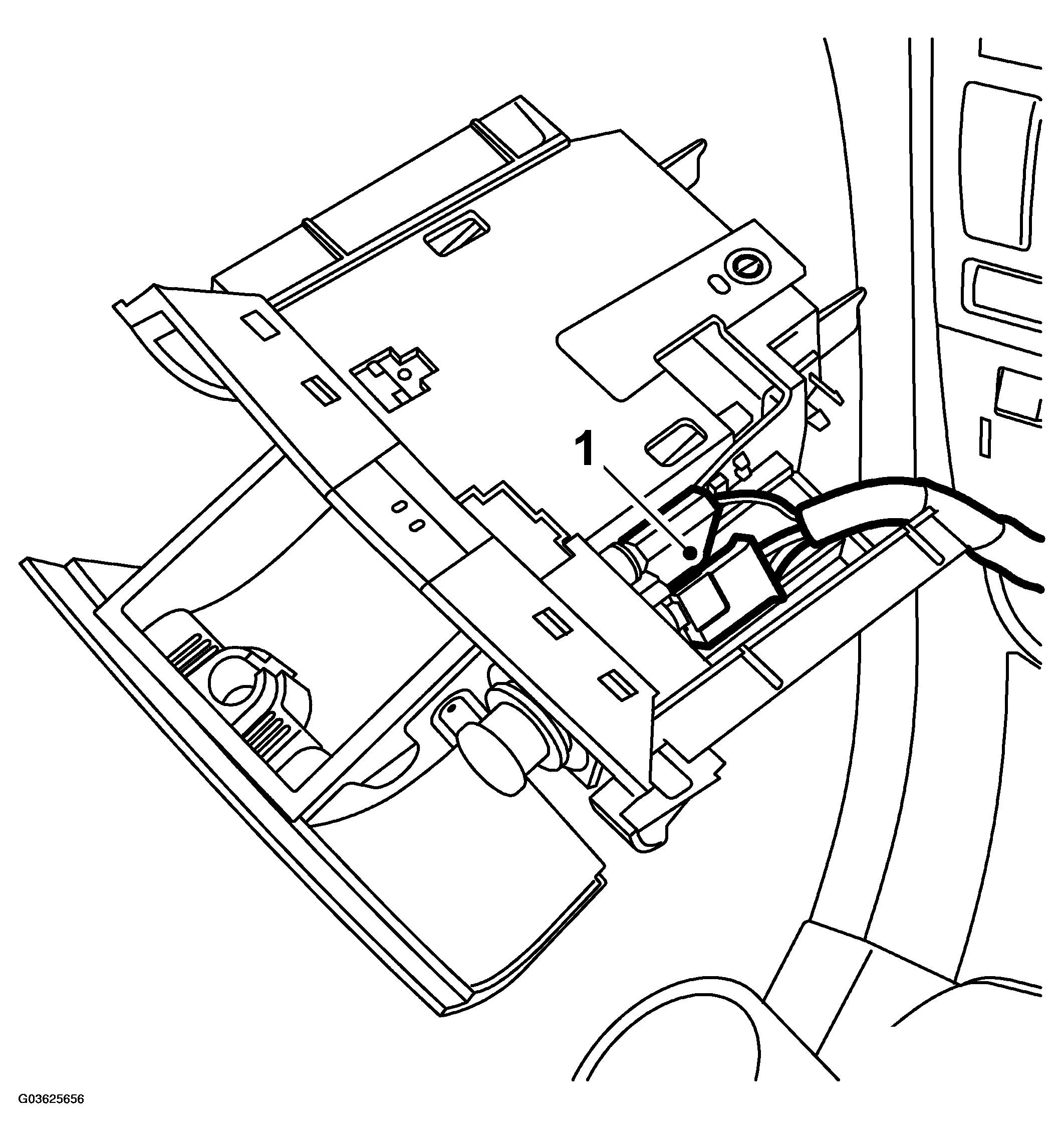

    Fig 1: Illustration For Step 1
    G03625656Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Push the ashtray straight in to its fitting.

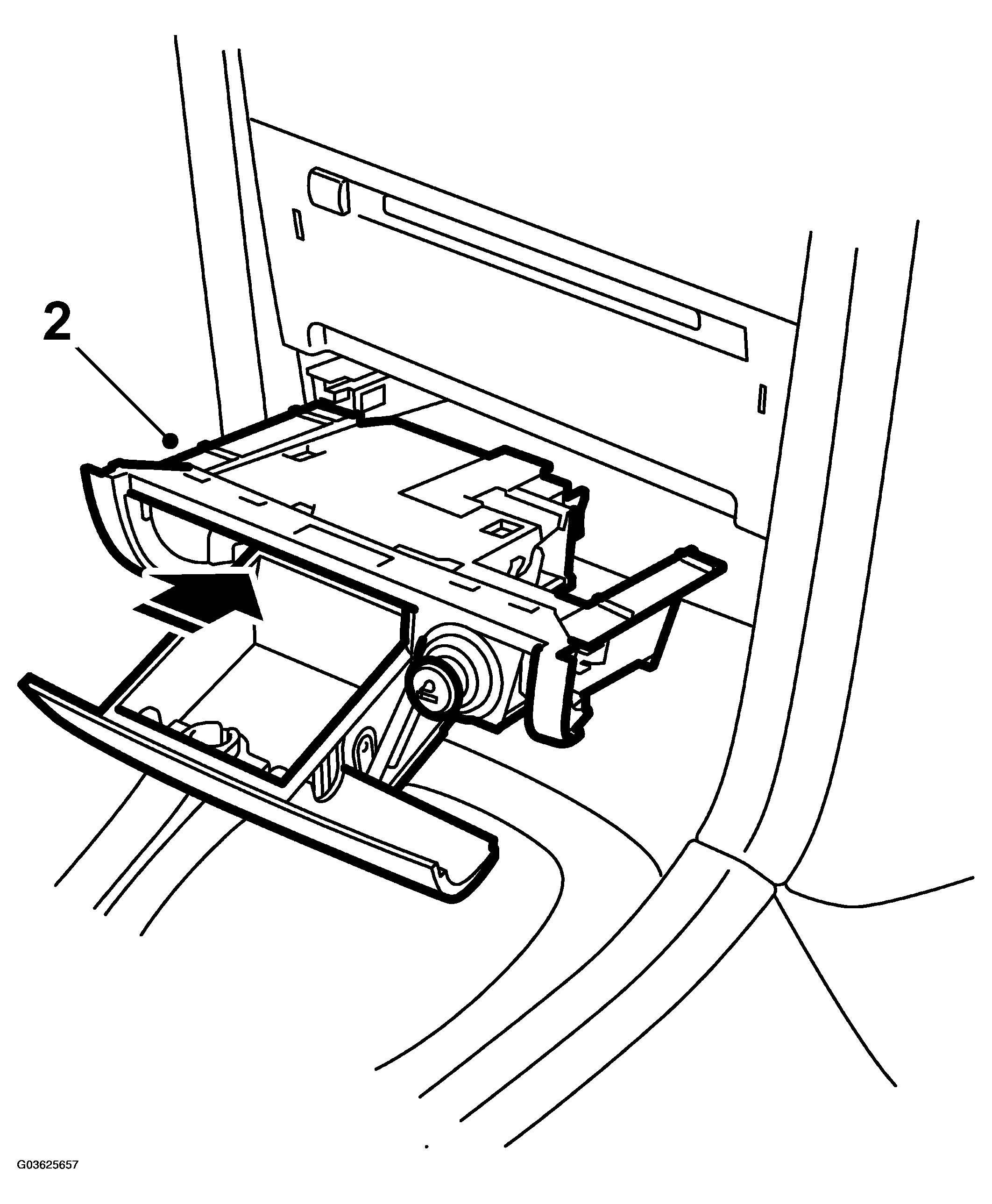

    Fig 2: Illustration For Step 2
    G03625657Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Check that the locking clips engage on both sides.
