Home >> Saab >> 2003 >> 9-3 SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Interior Equipment (Late; 9440) >> Adjustment/Replacement >> Air vent, panel, passenger >> To fit

To fit

  1. Position the panel vent. Ensure that the side defroster air channel is correctly located.
  2. Clip in the panel vent. Make sure that the locking tabs are properly engaged.

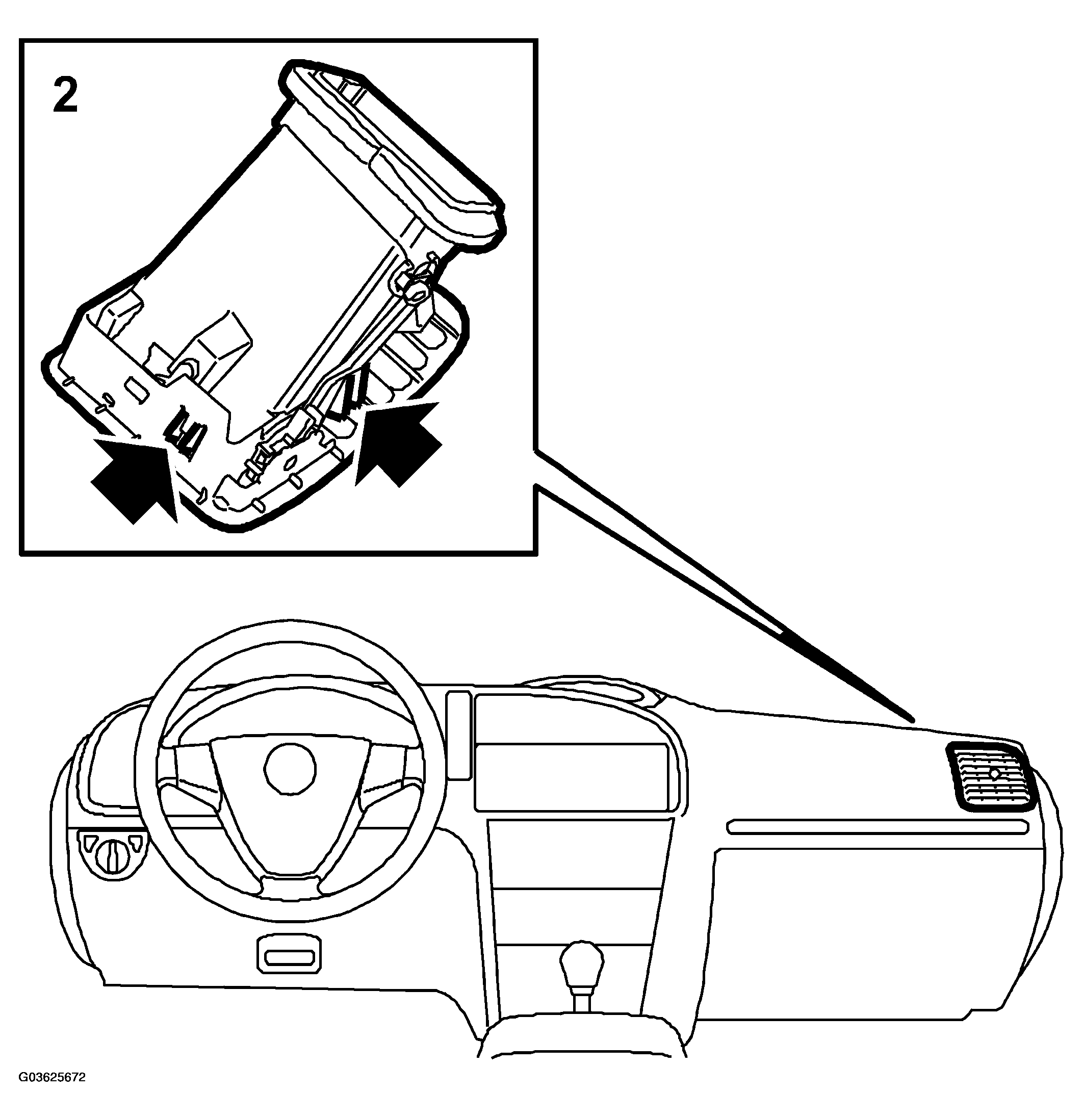

    Fig 1: Illustration For Step 2
    G03625672Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Refit the glove box.
