To remove

  1. Remove the driver air vent by carefully bending in the lugs which are accessible through the grille.

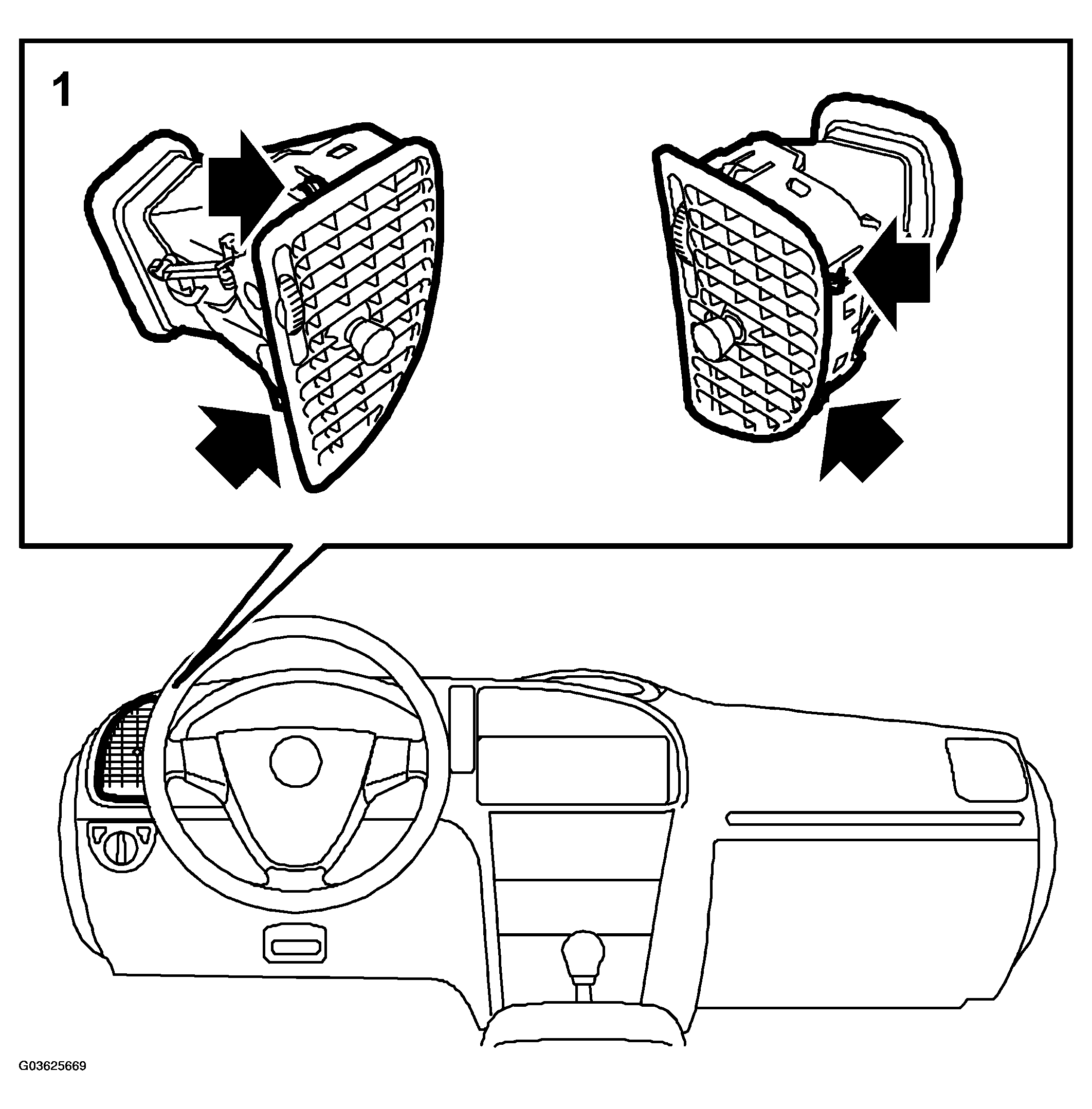

    Fig 1: Illustration For Step 1
    G03625669Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: It is important to bend the correct lugs. The lugs which retain the air vent can be seen through the grille.
