To remove

  1. Open the window fully.
  2. Remove rear door trim.

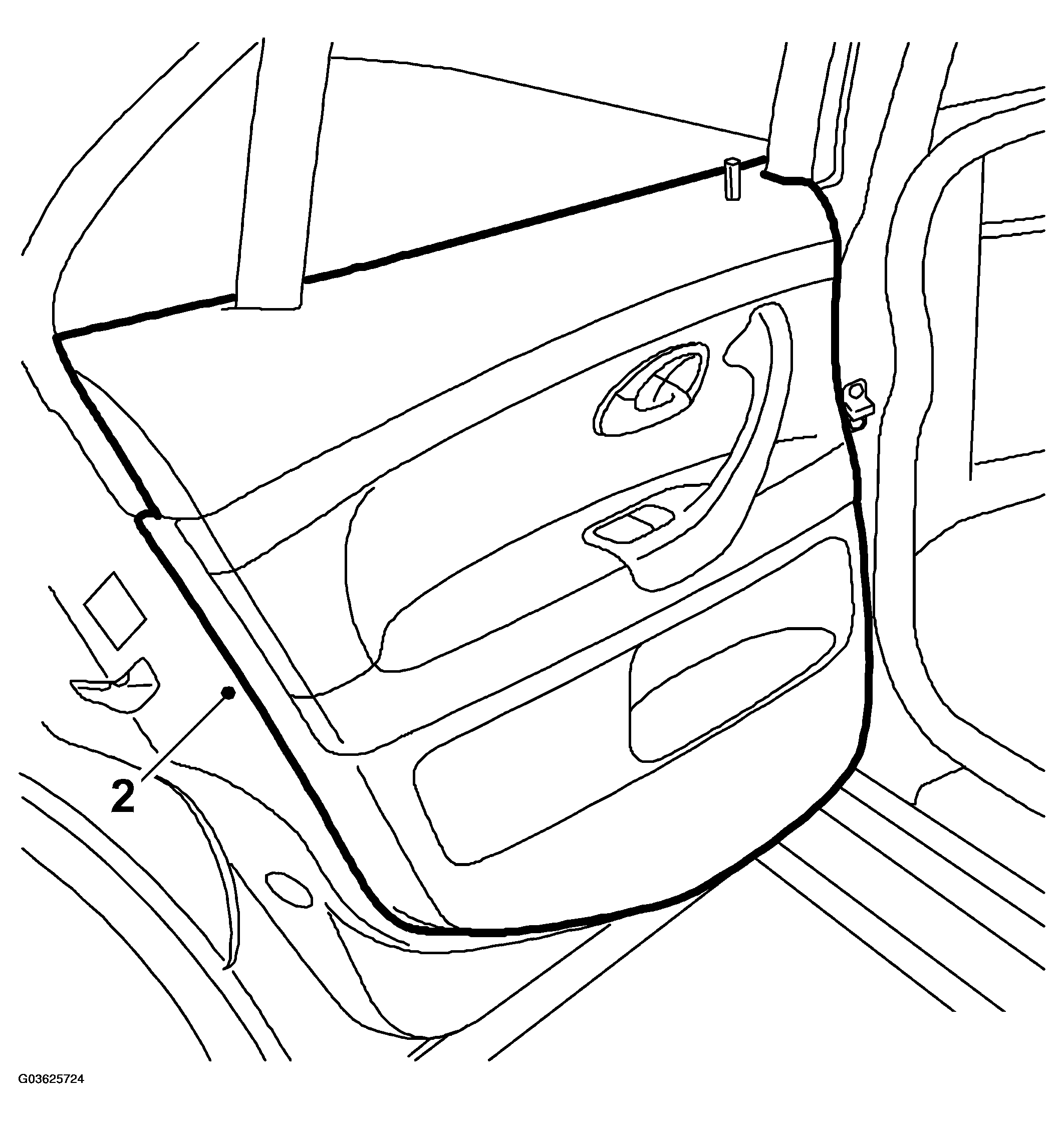

    Fig 1: Illustration For Step 2
    G03625724Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Carefully free the lower part of the centre leg of the frame cover.

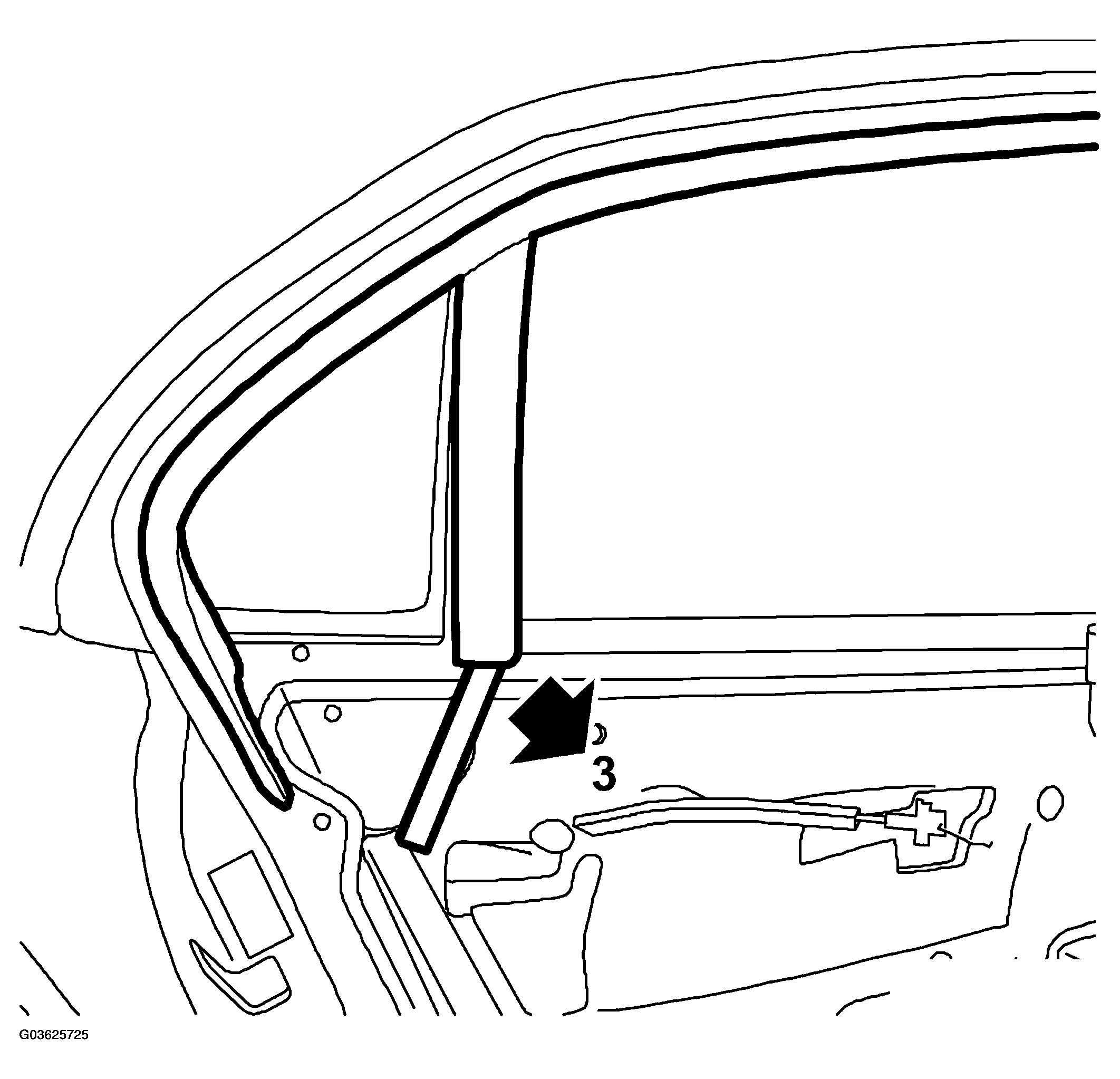

    Fig 2: Illustration For Step 3
    G03625725Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Free the lower front section of the frame cover. Carefully free the end part and pull it backwards so that the frame cover is released from the front corner of the door frame.

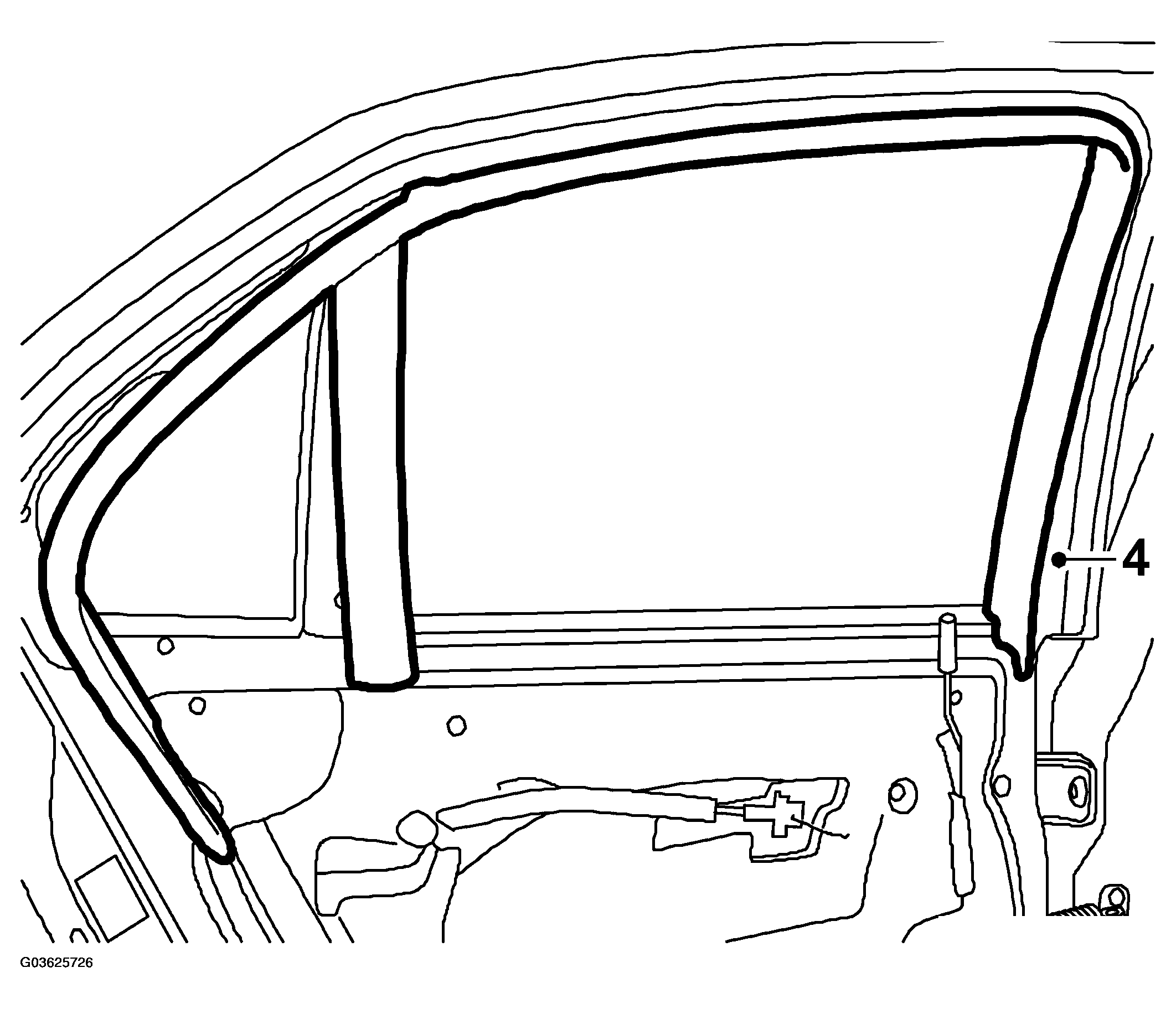

    Fig 3: Illustration For Step 4
    G03625726Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Release the rest of the cover by pulling it straight out.

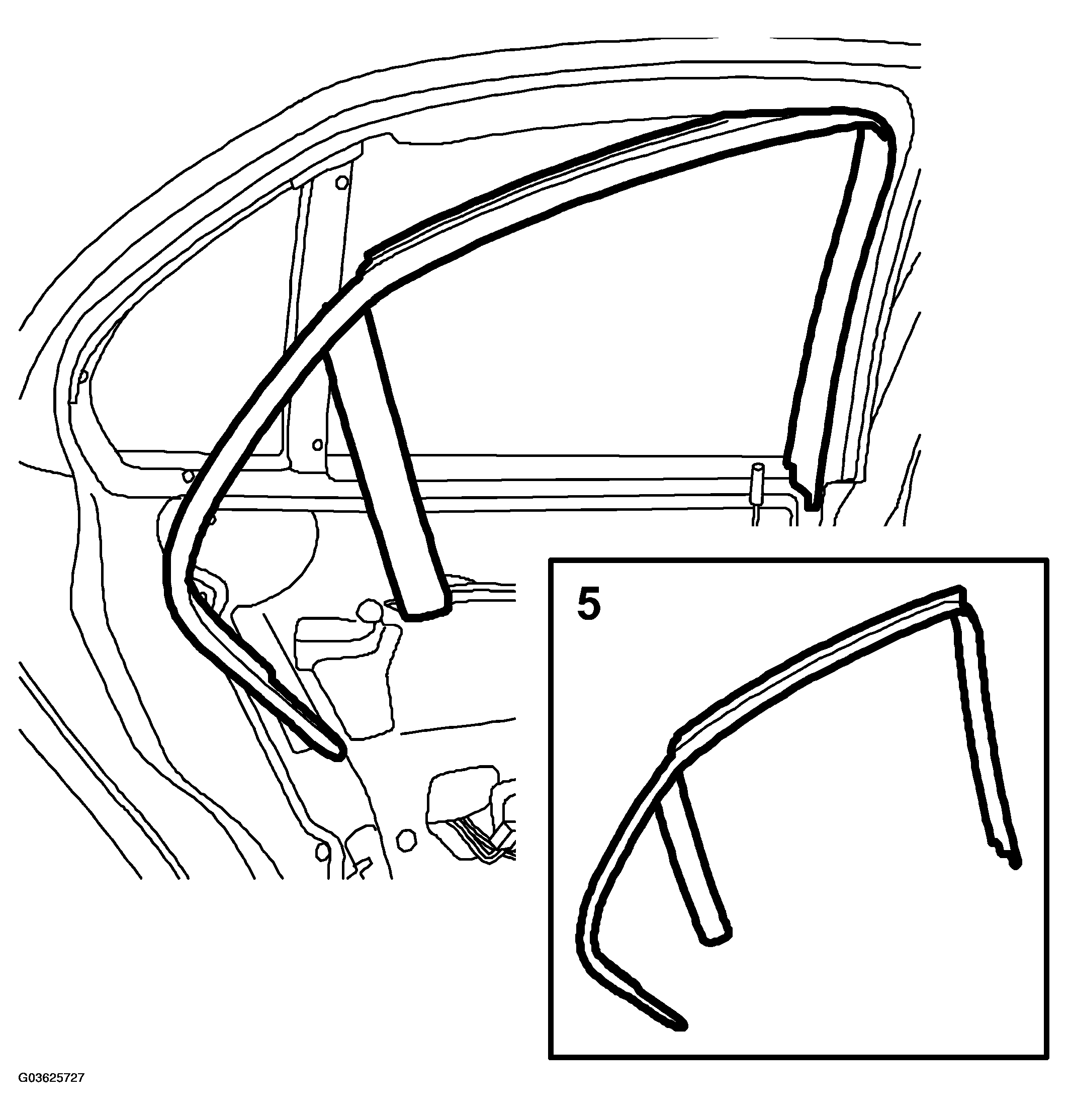

    Fig 4: Illustration For Step 5
    G03625727Courtesy of SAAB-SCANIA OF AMERICA, INC.
