To fit

  1. Fit the window frame cover by first locating it in the front corner of the door frame and then attaching the lower front section of the cover.

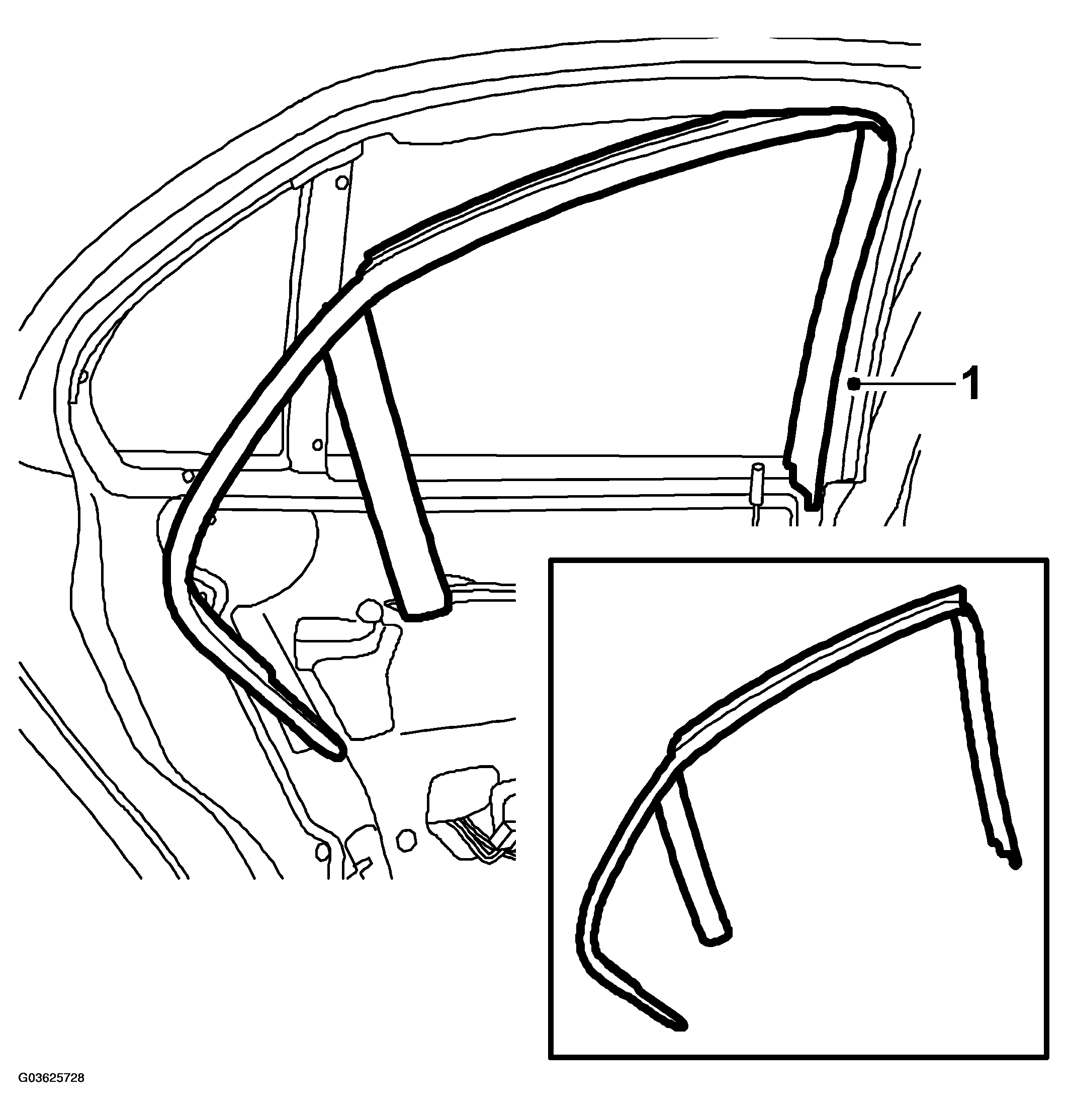

    Fig 1: Illustration For Step 1
    G03625728Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Attach the rear section and the centre leg of the cover. Ensure that the rubber strip is correctly located.

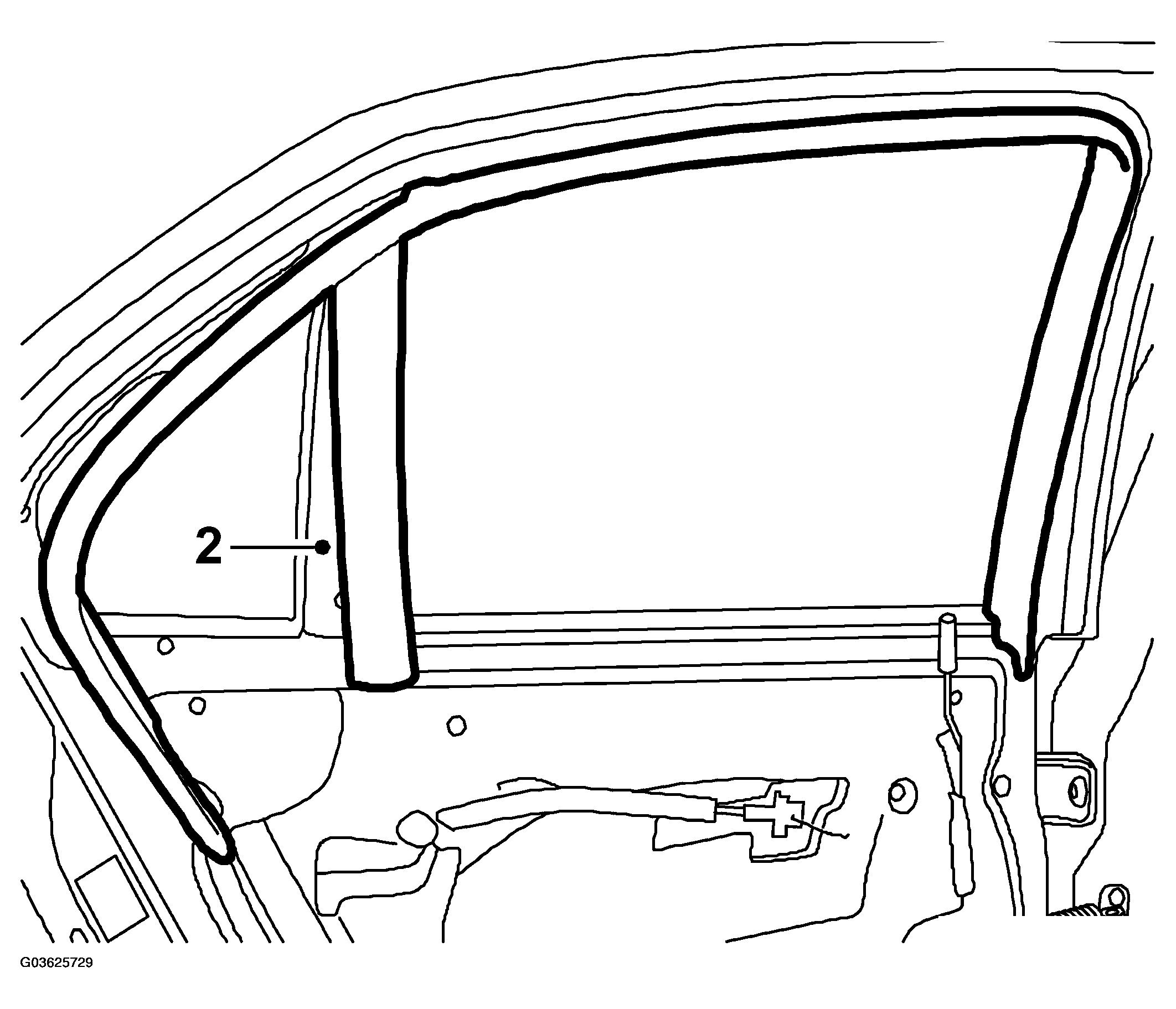

    Fig 2: Illustration For Step 2
    G03625729Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit Rear door trim.

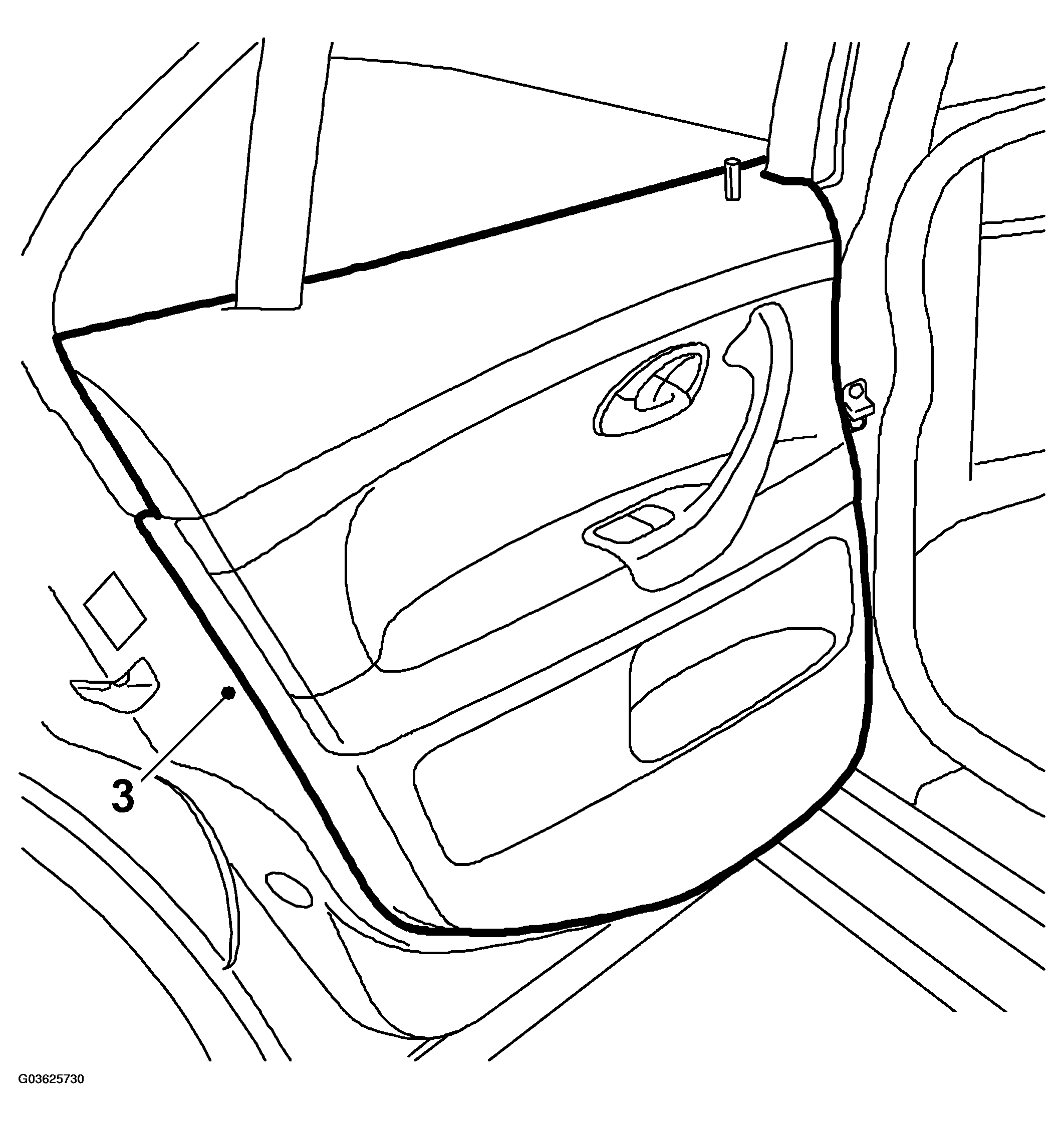

    Fig 3: Illustration For Step 3
    G03625730Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Close the rear door window.
  5. Cars with pinch protection:  Perform programming of the pinch protection.
