To fit

  1. Fit the window frame cover by carefully locating it at the lower rear section of the door frame. Then push the rear edge of the cover into position on the door frame channel.

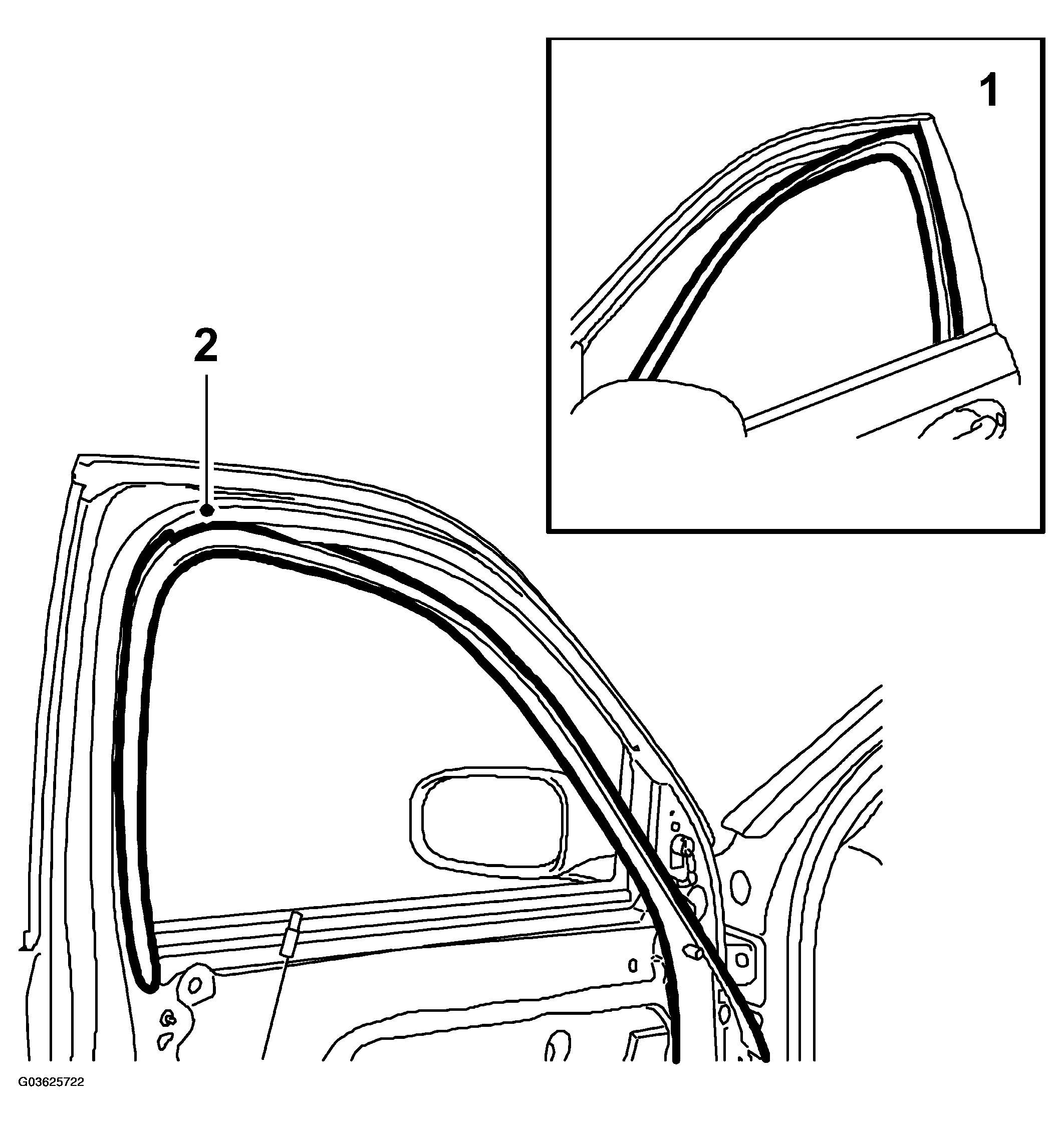

    Fig 1: Illustration For Steps 1-2
    G03625722Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully fasten the cover at the upper corner of the door frame. Ensure that the rubber strip is correctly positioned.
  3. Fit the front part of the window frame cover. Make sure the cover is lying correctly on the weatherstrip.

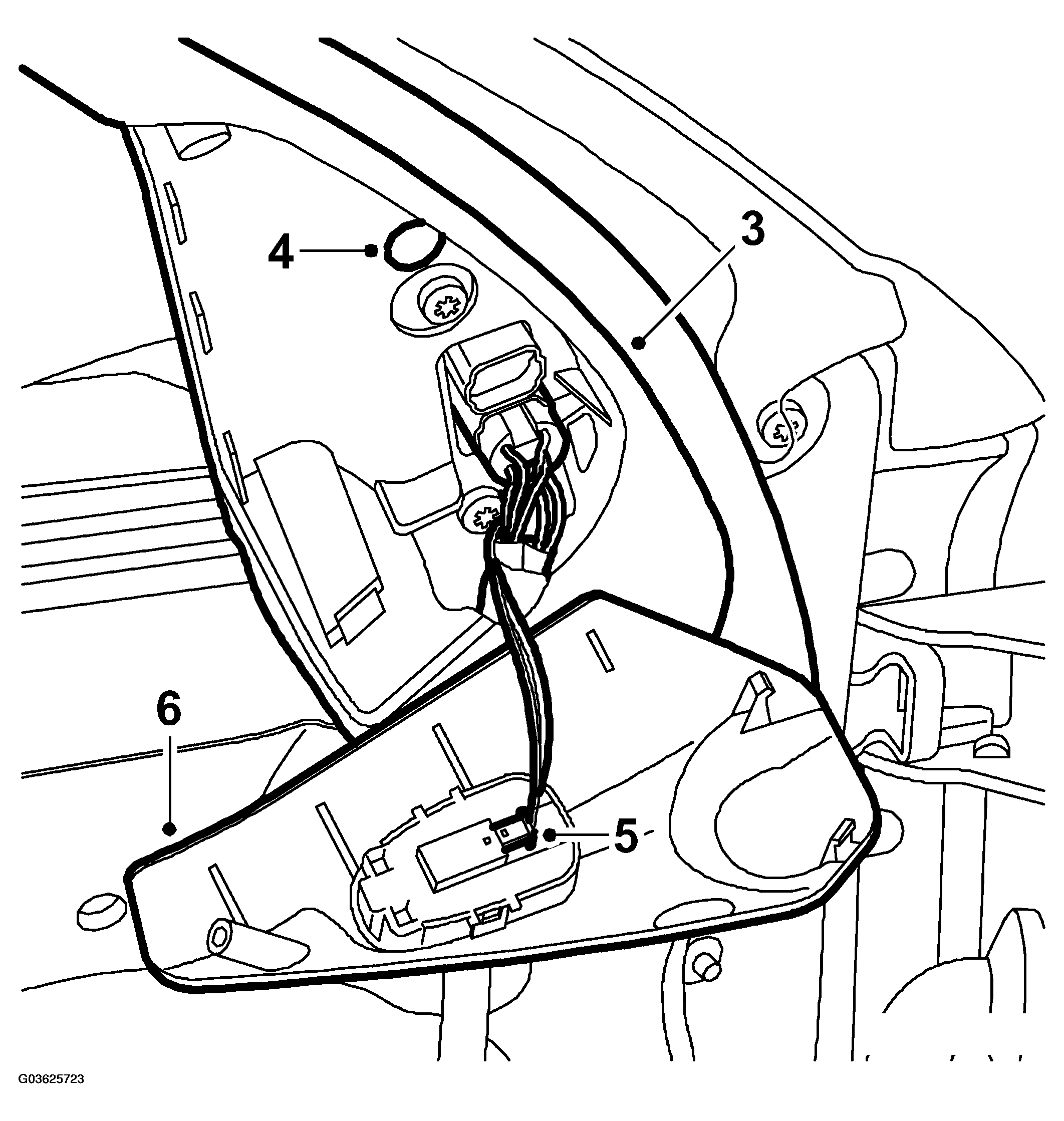

    Fig 2: Illustration For Steps 3-6
    G03625723Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the clips fastening the window frame cover at the front.
  5. Plug in the switch connector.
  6. Fit the cover to the window frame cover.
  7. Fit the DOOR TRIM .
  8. Close the front door window.
