Transport protection covers in the cabin.

Remove the transport protection covers from the following interior items:

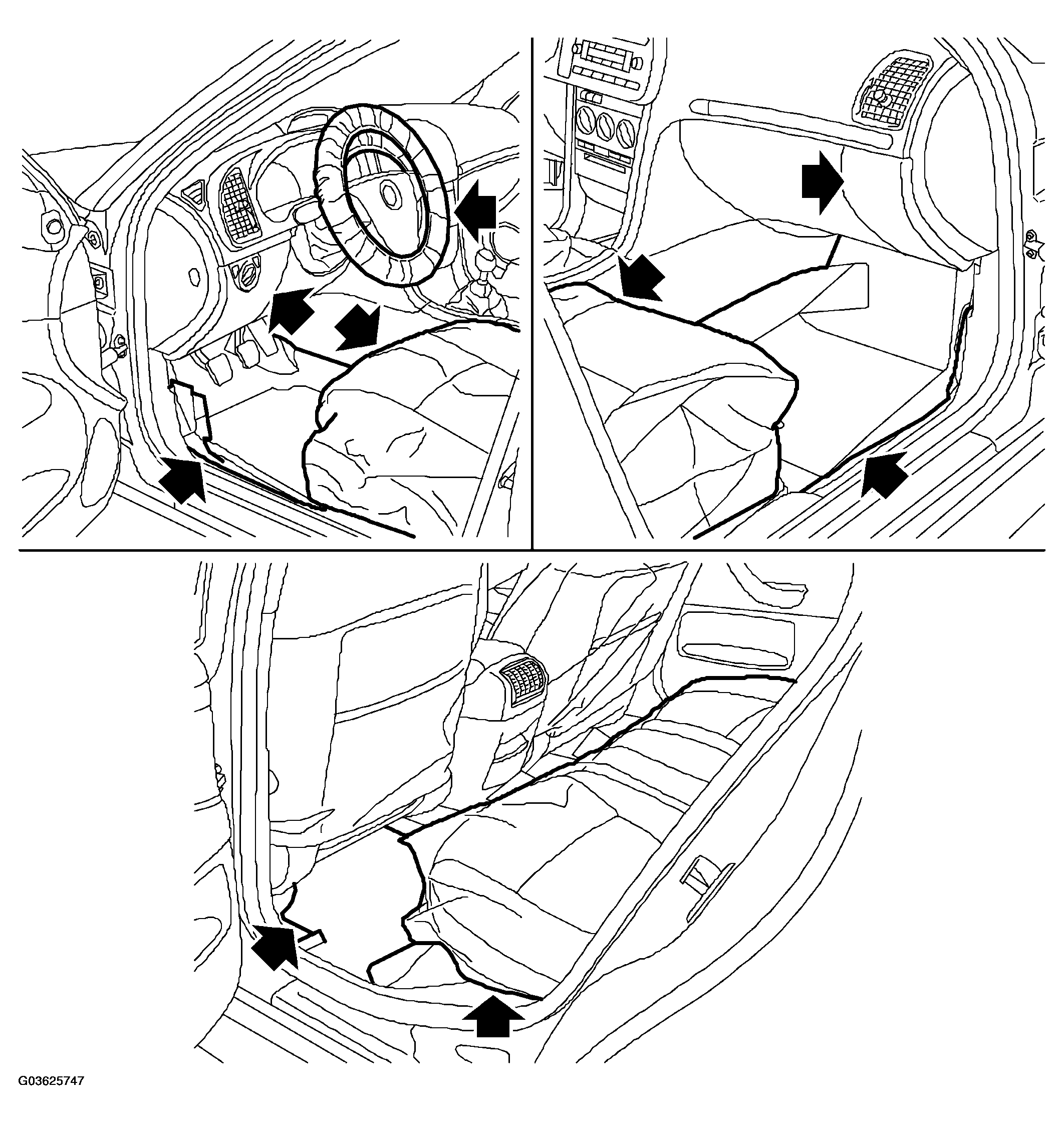

Fig 1: Locating Transport Protection Covers Removal Point

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. seats
   • back rest
   • cushions
2. rear seat
   • back rest
   • cushions
   • side bolster
3. gear lever/selector lever
4. steering wheel
5. floor
   • front
   • rear
6. lower dashboard panel
7. lower section of door trim

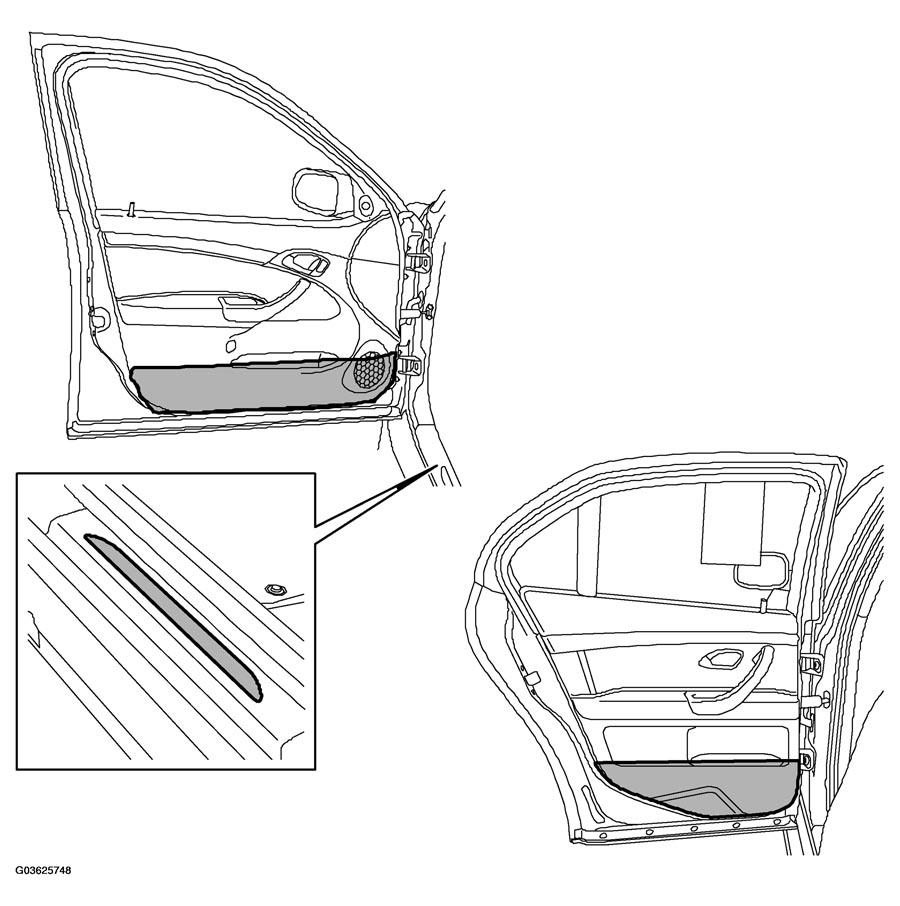

   Fig 2: Locating Transport Protection Cover Removal Point

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
8. front scuff plates
   • driver side
   • glove box lid
9. Vehicle with ICM2 or ICM3:  The display
