To remove

  1. Open and fold down the right-hand rear inspection cover.

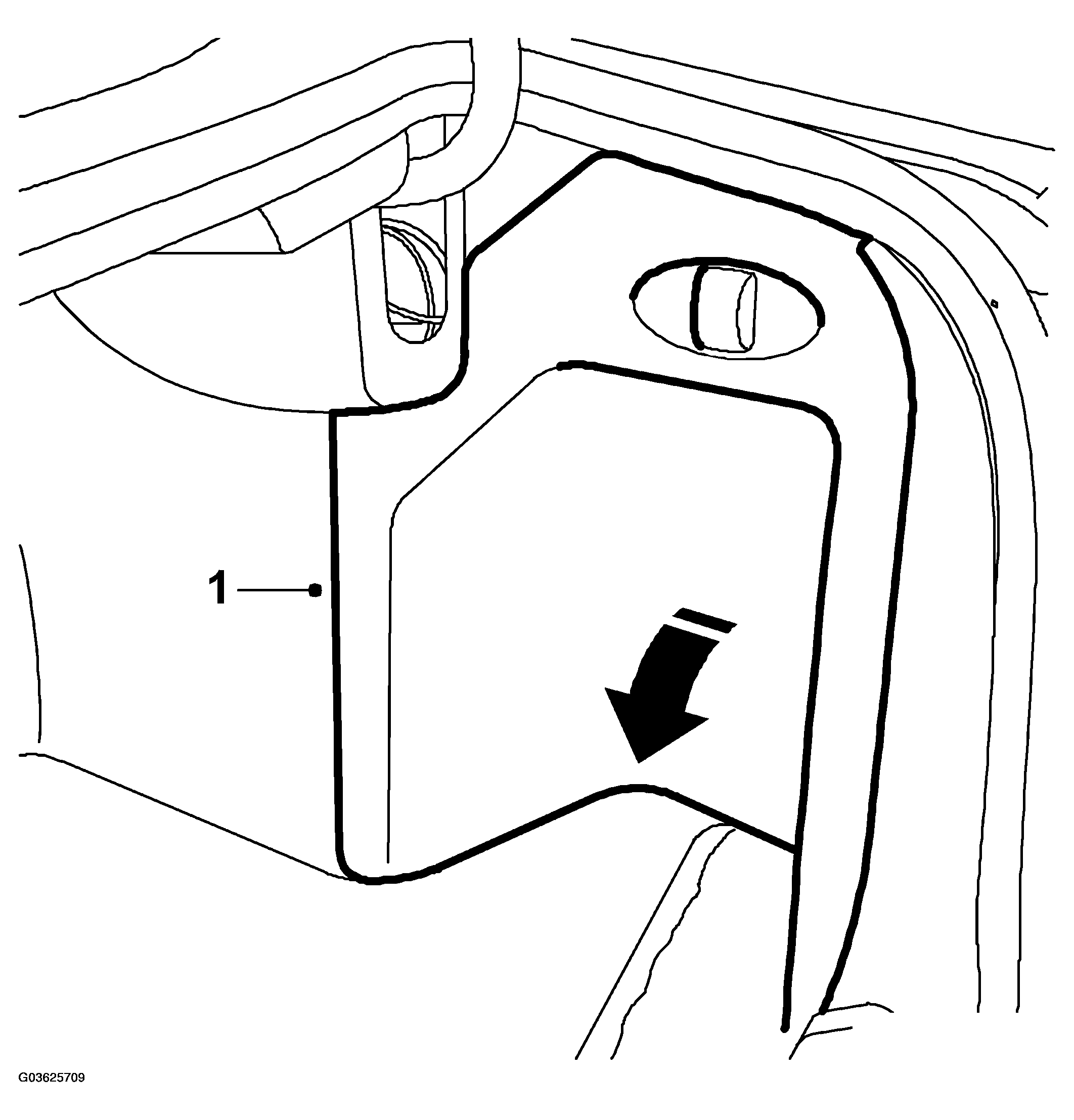

    Fig 1: Illustration For Step 1
    G03625709Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the two-stage rivets and the cable clip which hold the sound insulation to the body.

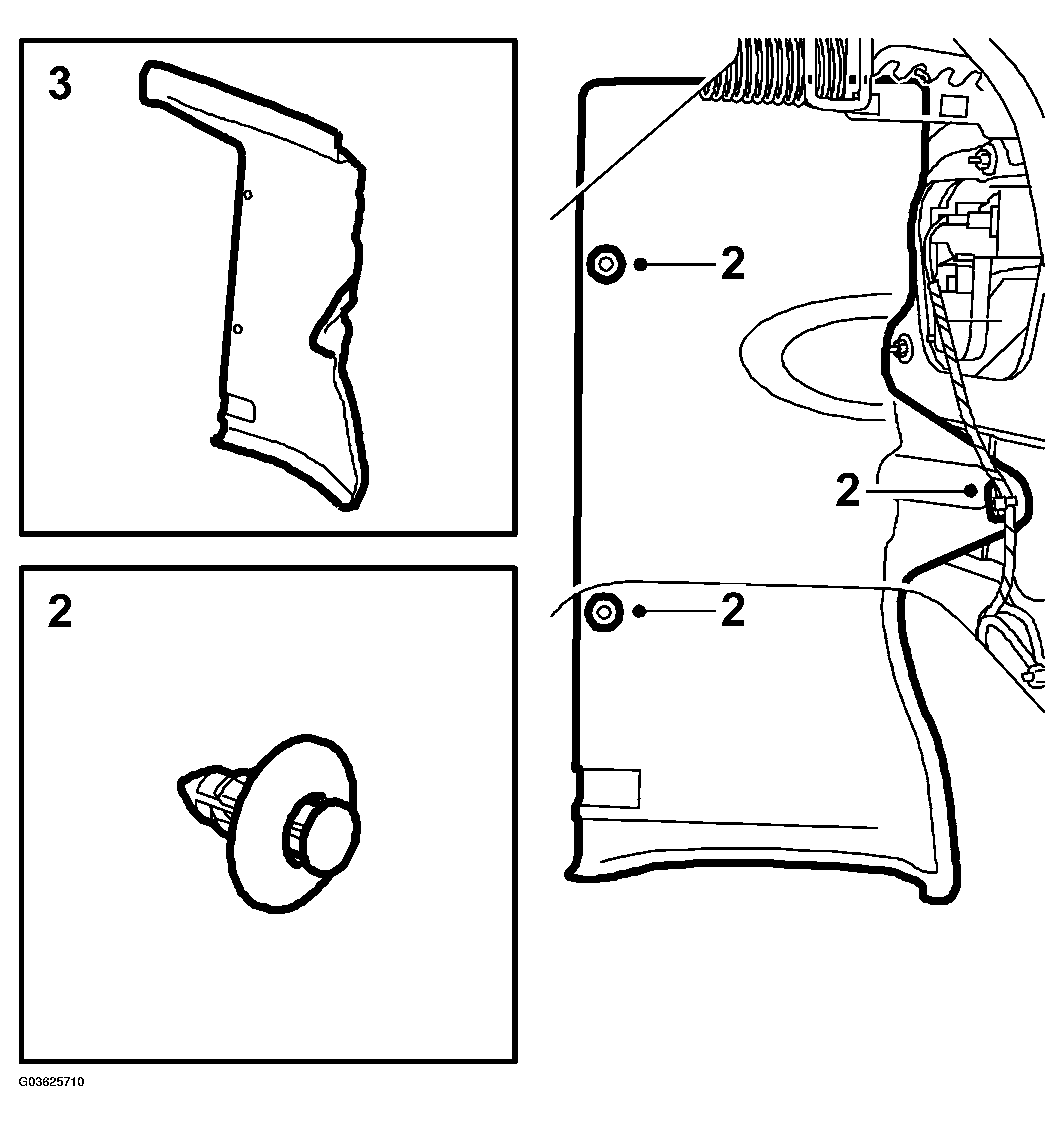

    Fig 2: Illustration For Steps 2-3
    G03625710Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the sound insulation.
