To fit

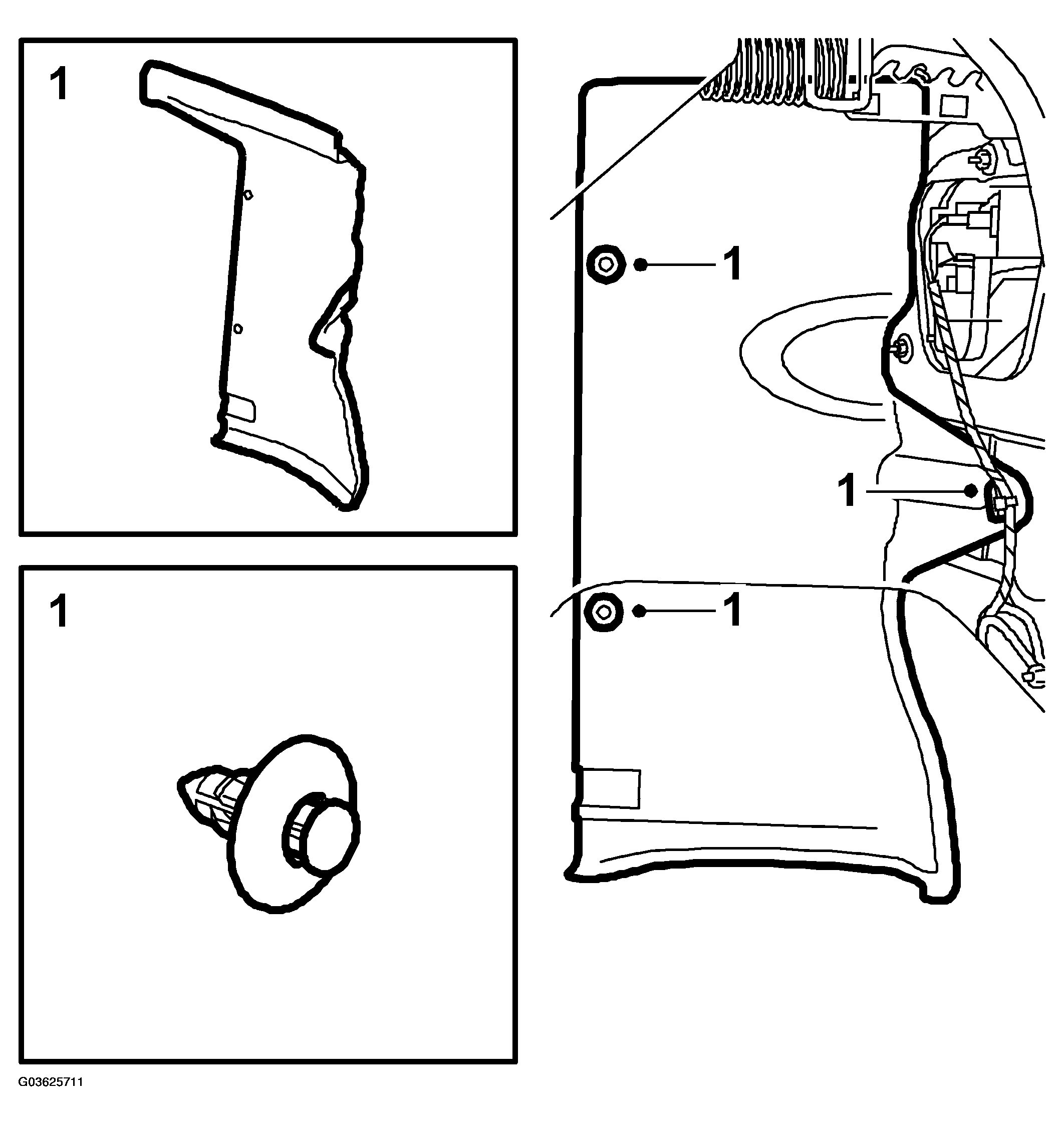

  1. Fit the sound insulation to the body, use the two-stage rivets and the cable clip.
    Fig 1: Illustration For Step 1
    G03625711Courtesy of SAAB-SCANIA OF AMERICA, INC.

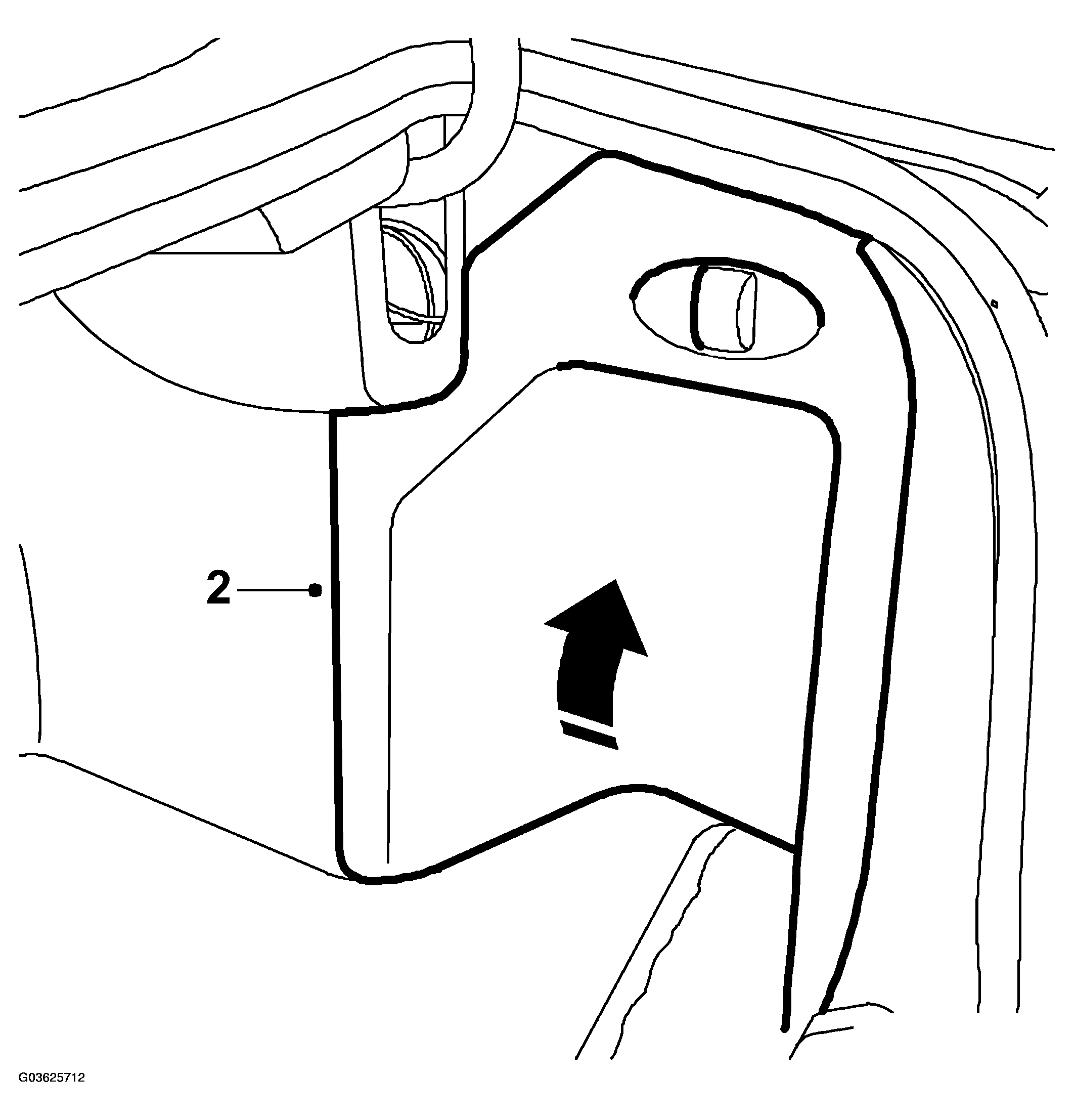

  2. Fold up and close the inspection cover.
    Fig 2: Illustration For Step 2
    G03625712Courtesy of SAAB-SCANIA OF AMERICA, INC.
