To remove

  1. Open and fold down the left-hand rear inspection cover.

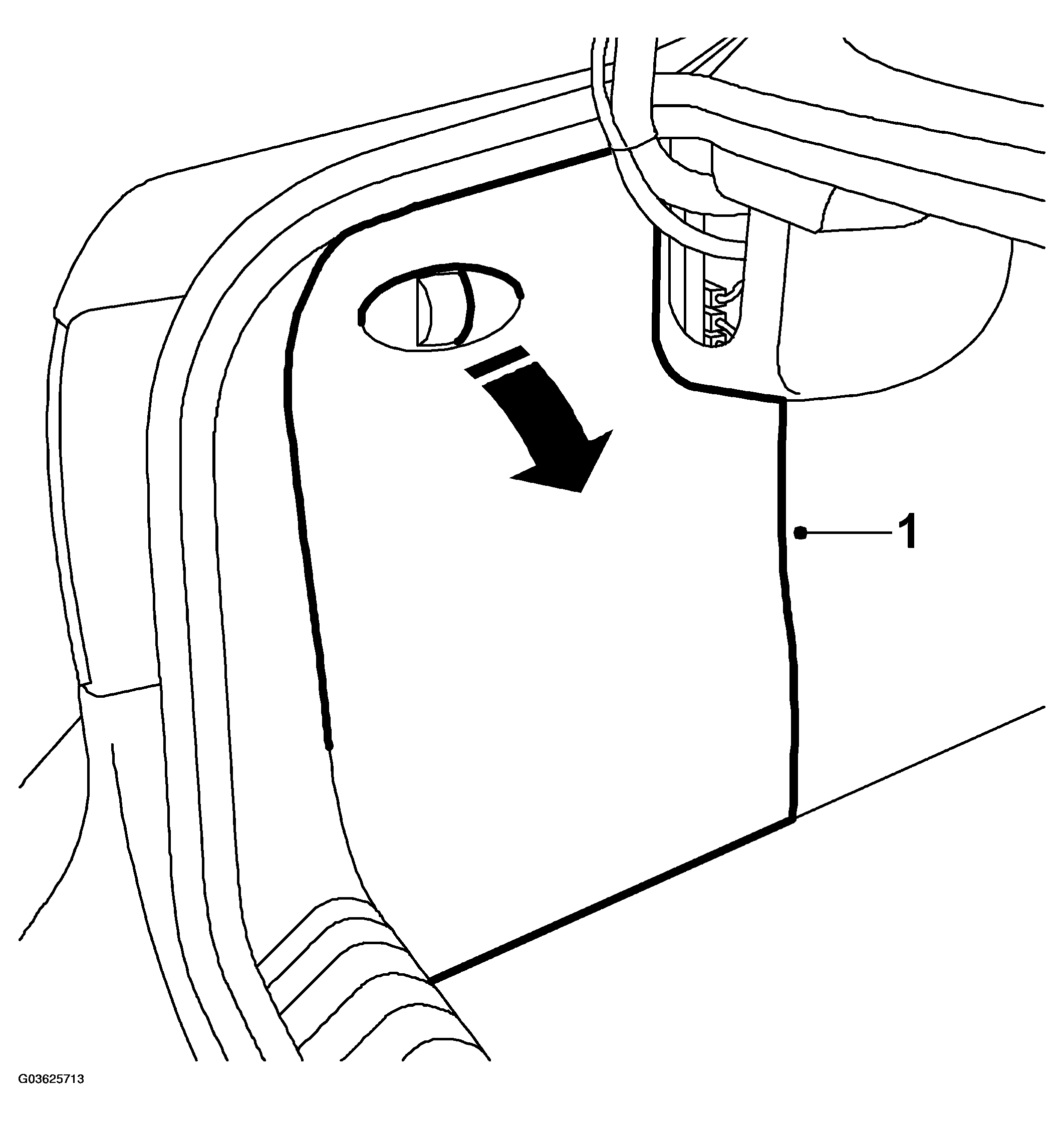

    Fig 1: Illustration For Step 1
    G03625713Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the holder for the CD player.

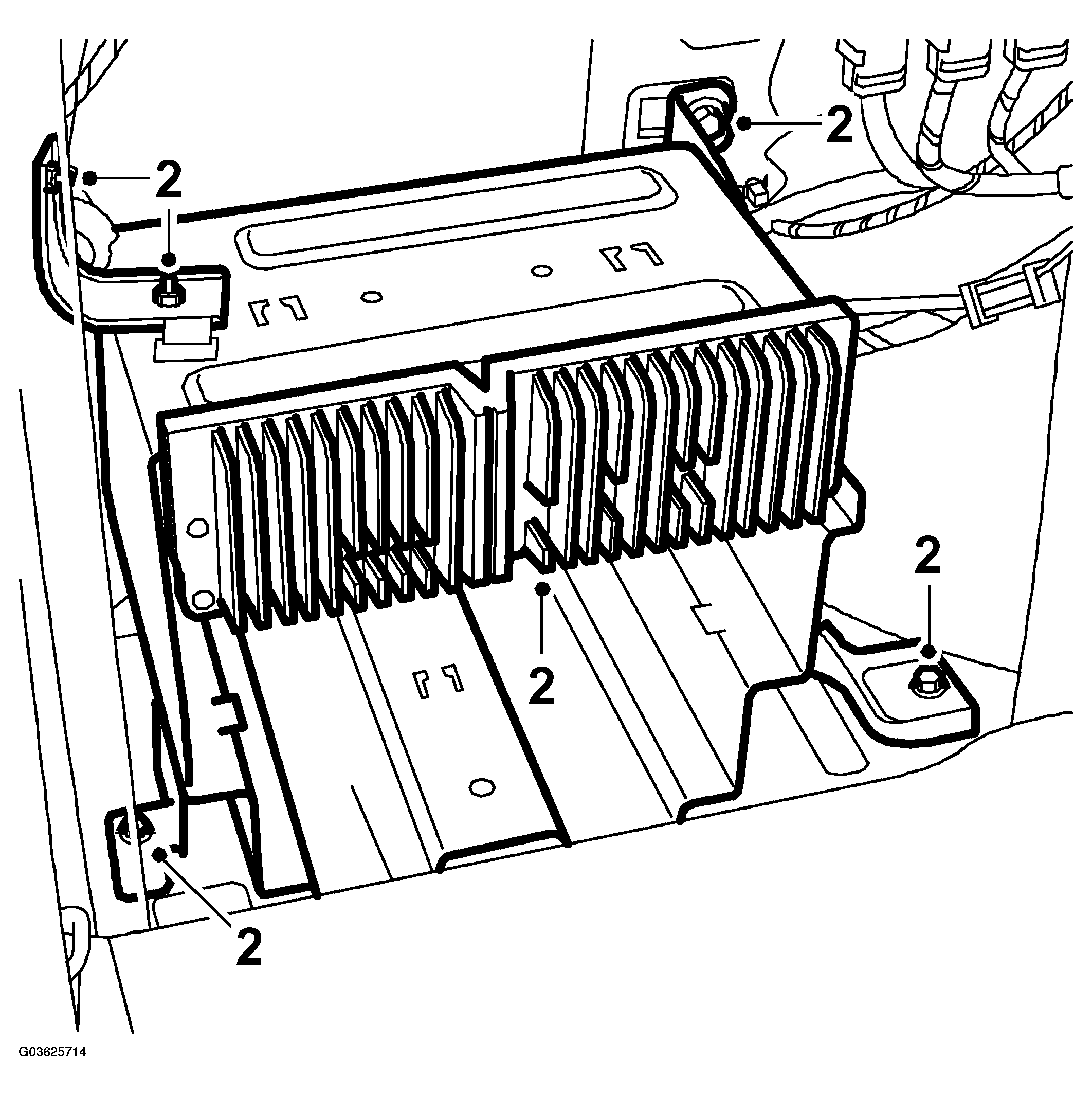

    Fig 2: Illustration For Step 2
    G03625714Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two-stage rivets and the cable clip which hold the sound insulation to the body. Remove the sound insulation.

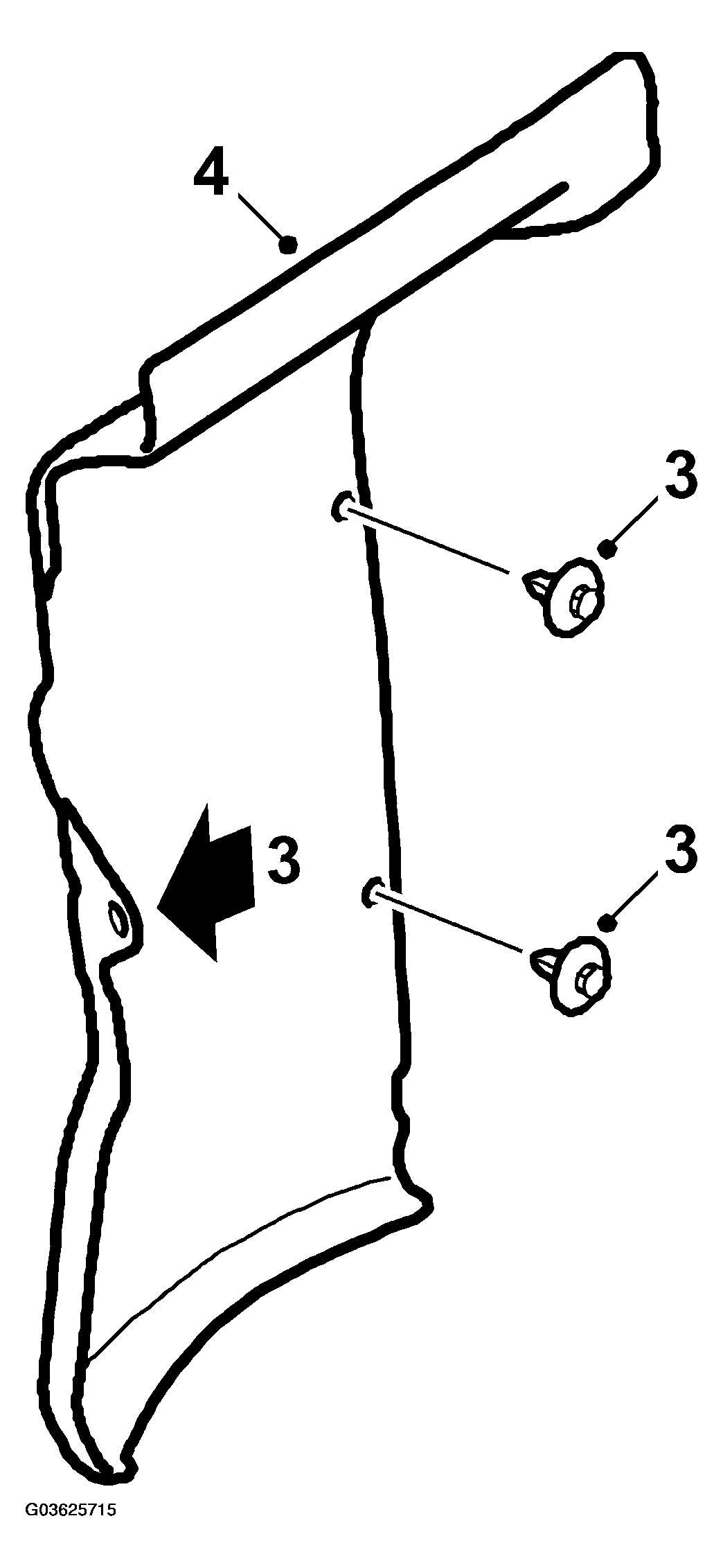

    Fig 3: Illustration For Steps 3-4
    G03625715Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the sound insulation.
