To fit

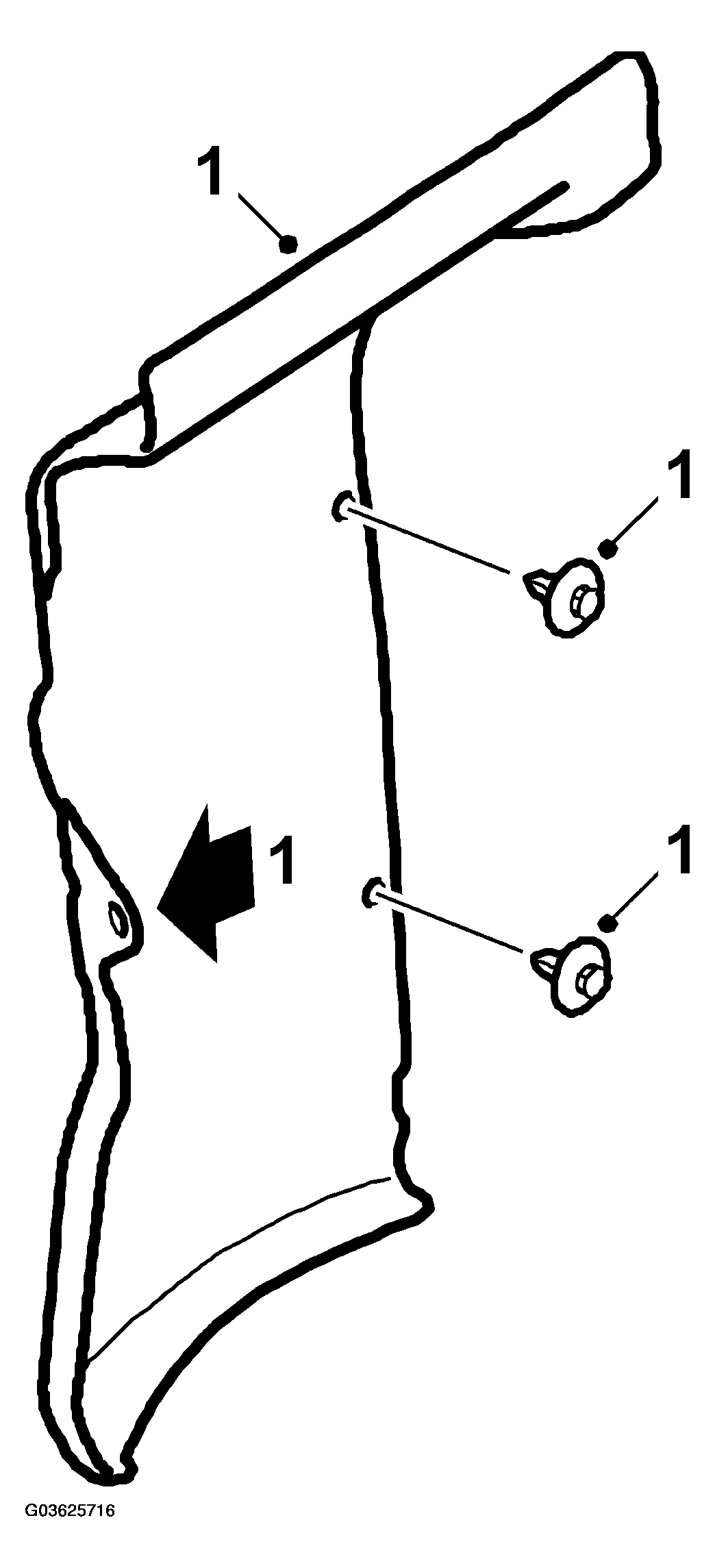

  1. Fit the sound insulation to the body, use the two-stage rivets and the cable clip.
    Fig 1: Illustration For Step 1
    G03625716Courtesy of SAAB-SCANIA OF AMERICA, INC.

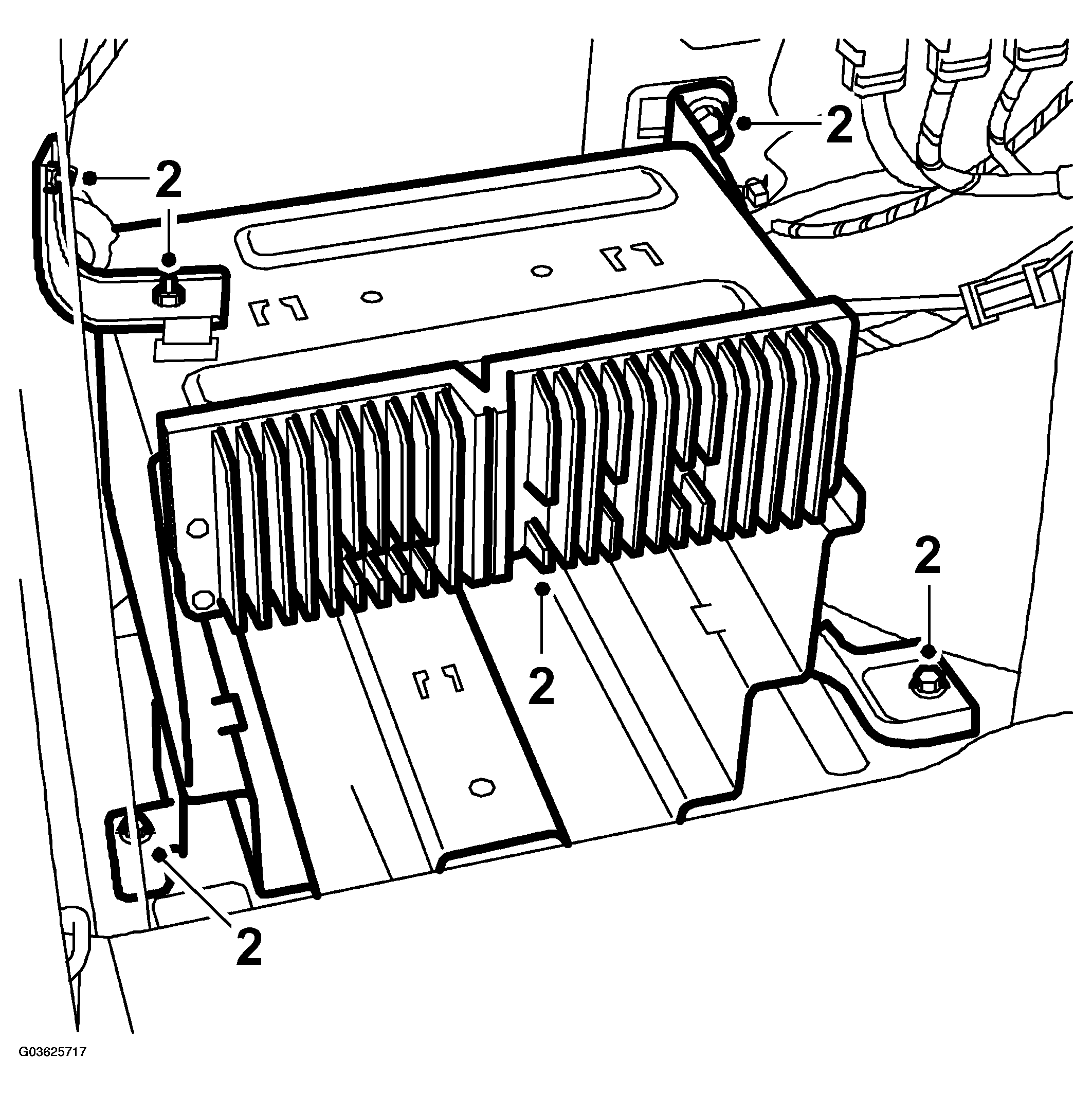

  2. Fit the holder for the CD player.
    Fig 2: Illustration For Step 2
    G03625717Courtesy of SAAB-SCANIA OF AMERICA, INC.

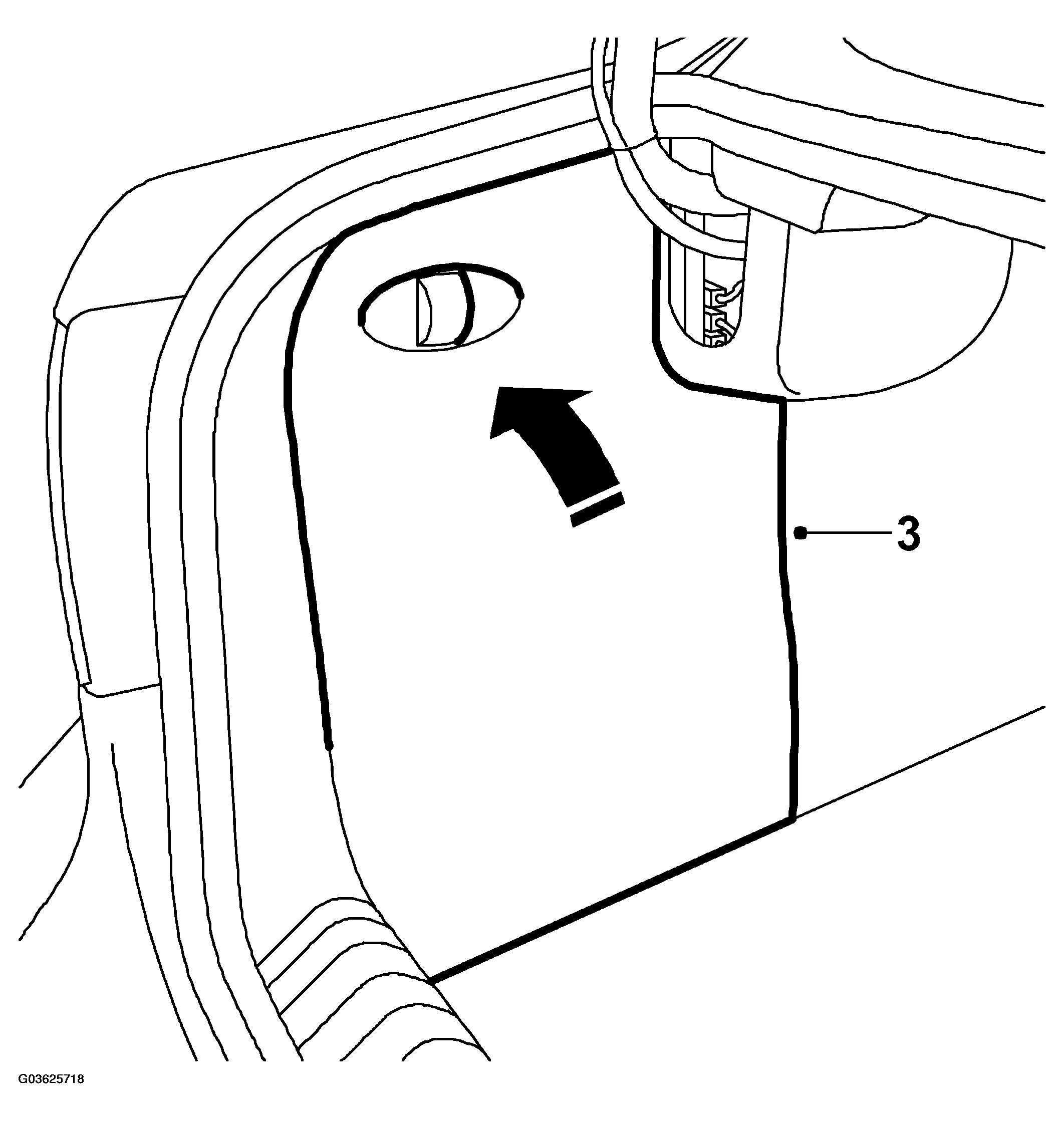

  3. Fold up and close the inspection cover.
    Fig 3: Illustration For Step 3
    G03625718Courtesy of SAAB-SCANIA OF AMERICA, INC.
