To fit

  1. Position the rear panel vent.

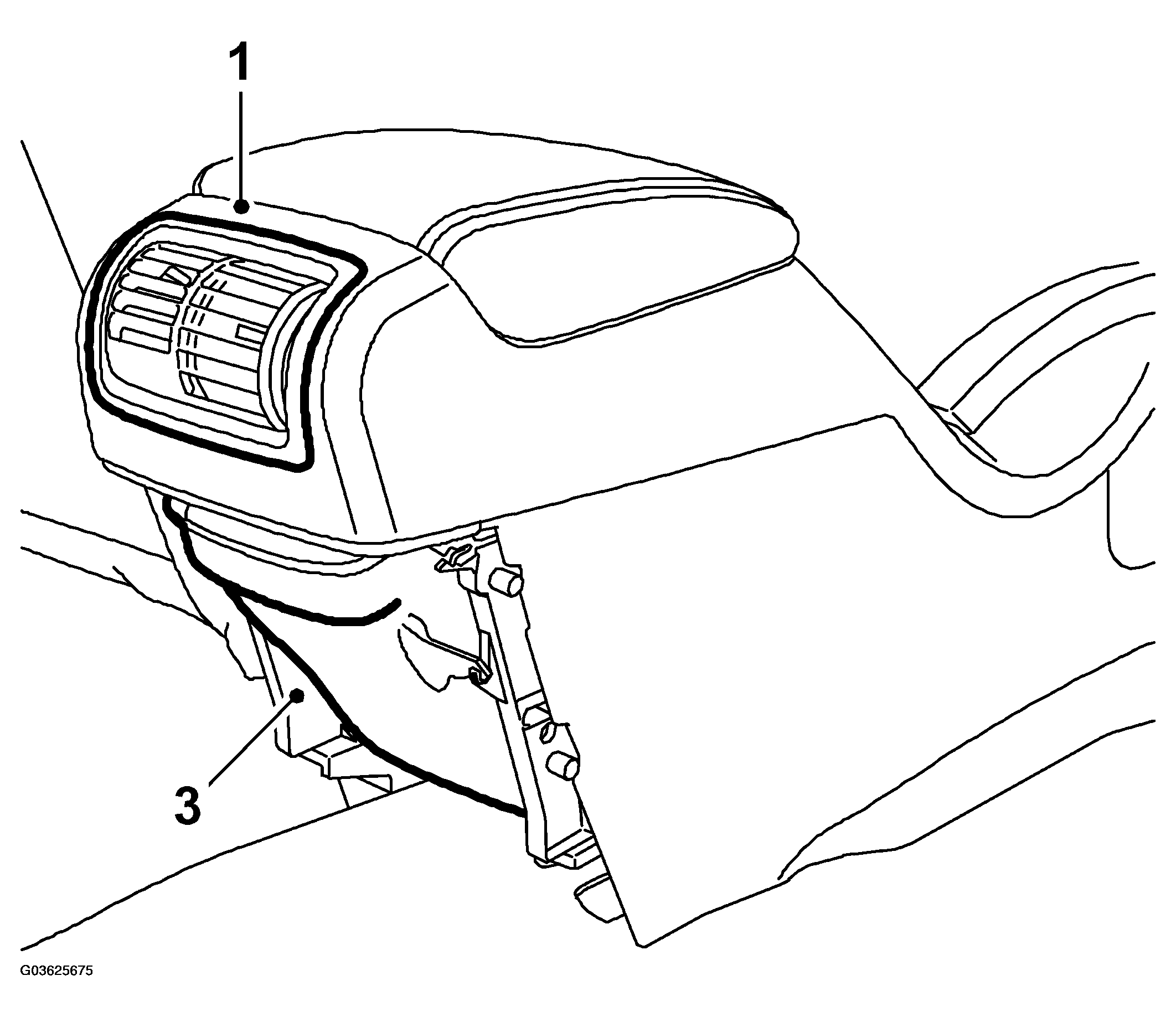

    Fig 1: Illustration For Steps 1, 3
    G03625675Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Push the panel vent straight in. Make sure that the locking tabs are properly engaged.
  3. Attach the air duct to its mounting.
  4. Refit the rear panel to the centre console.

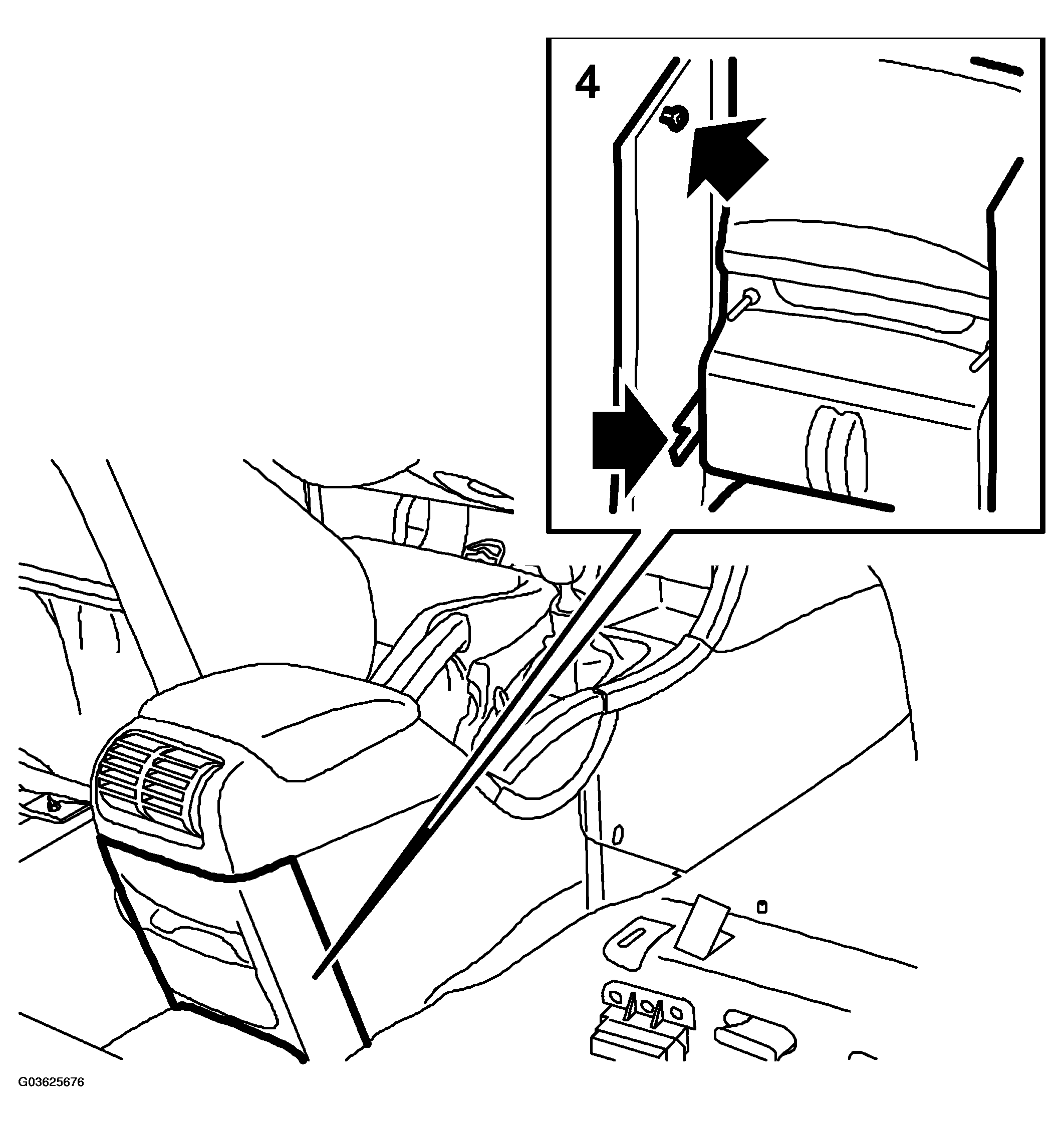

    Fig 2: Illustration For Step 4
    G03625676Courtesy of SAAB-SCANIA OF AMERICA, INC.
