To fit

  1. Fit the dashboard trim moulding.

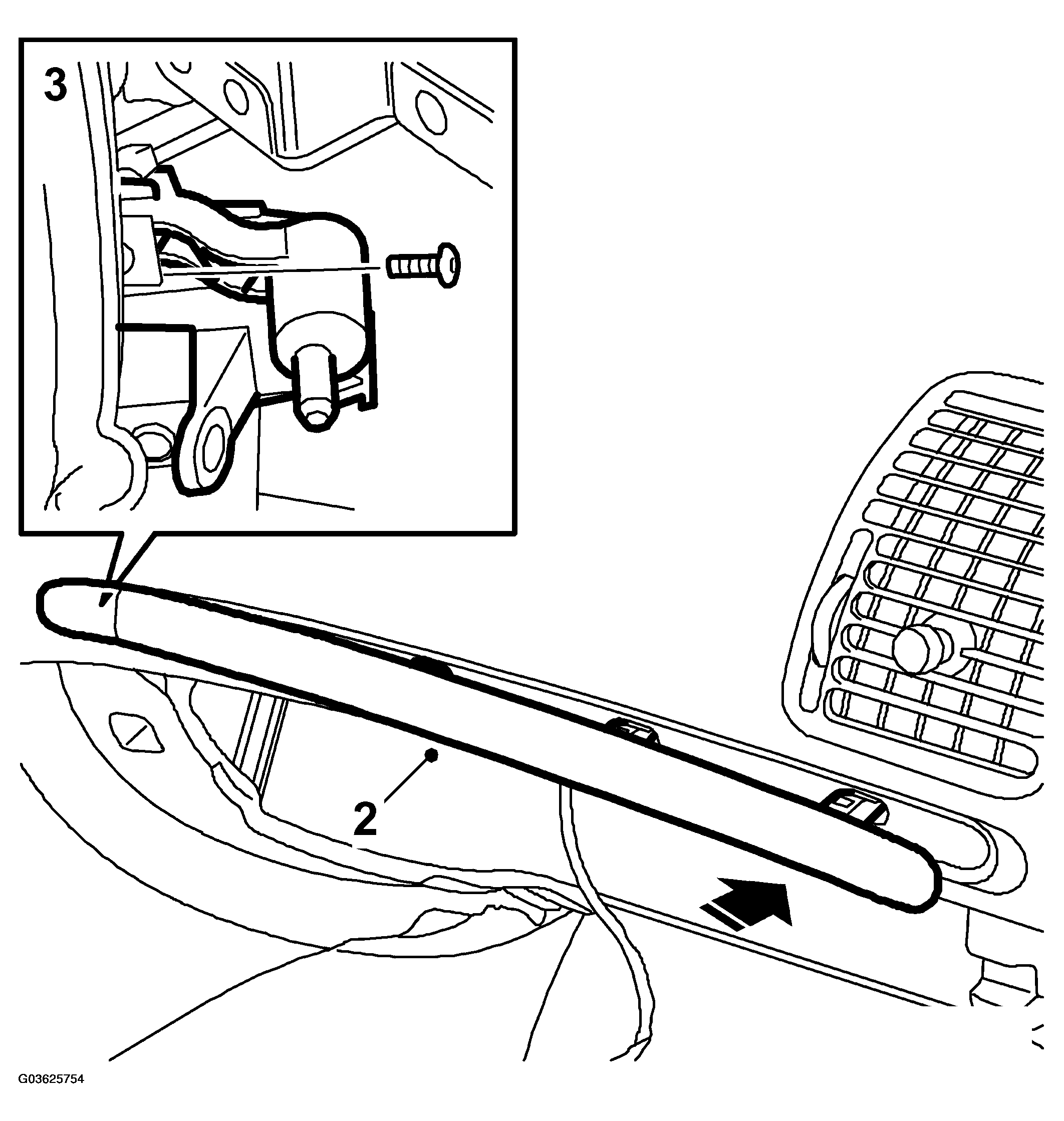

    Fig 1: Illustration For Step 2
    G03625754Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the glove box lock screws. Begin with the screw in the centre of the lock.
  3. Refit the GLOVE BOX .

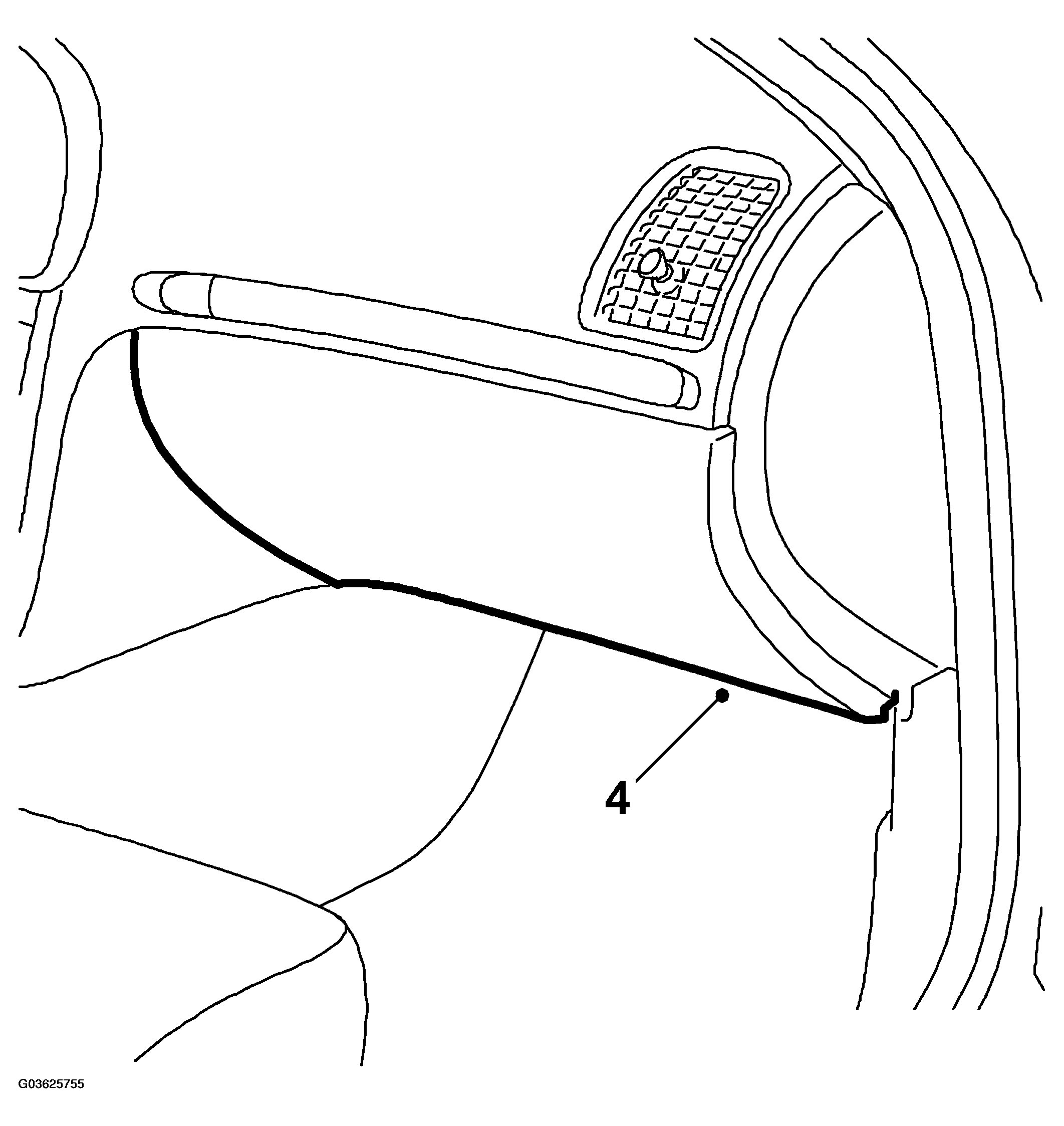

    Fig 2: Illustration For Step 4
    G03625755Courtesy of SAAB-SCANIA OF AMERICA, INC.
