To fit

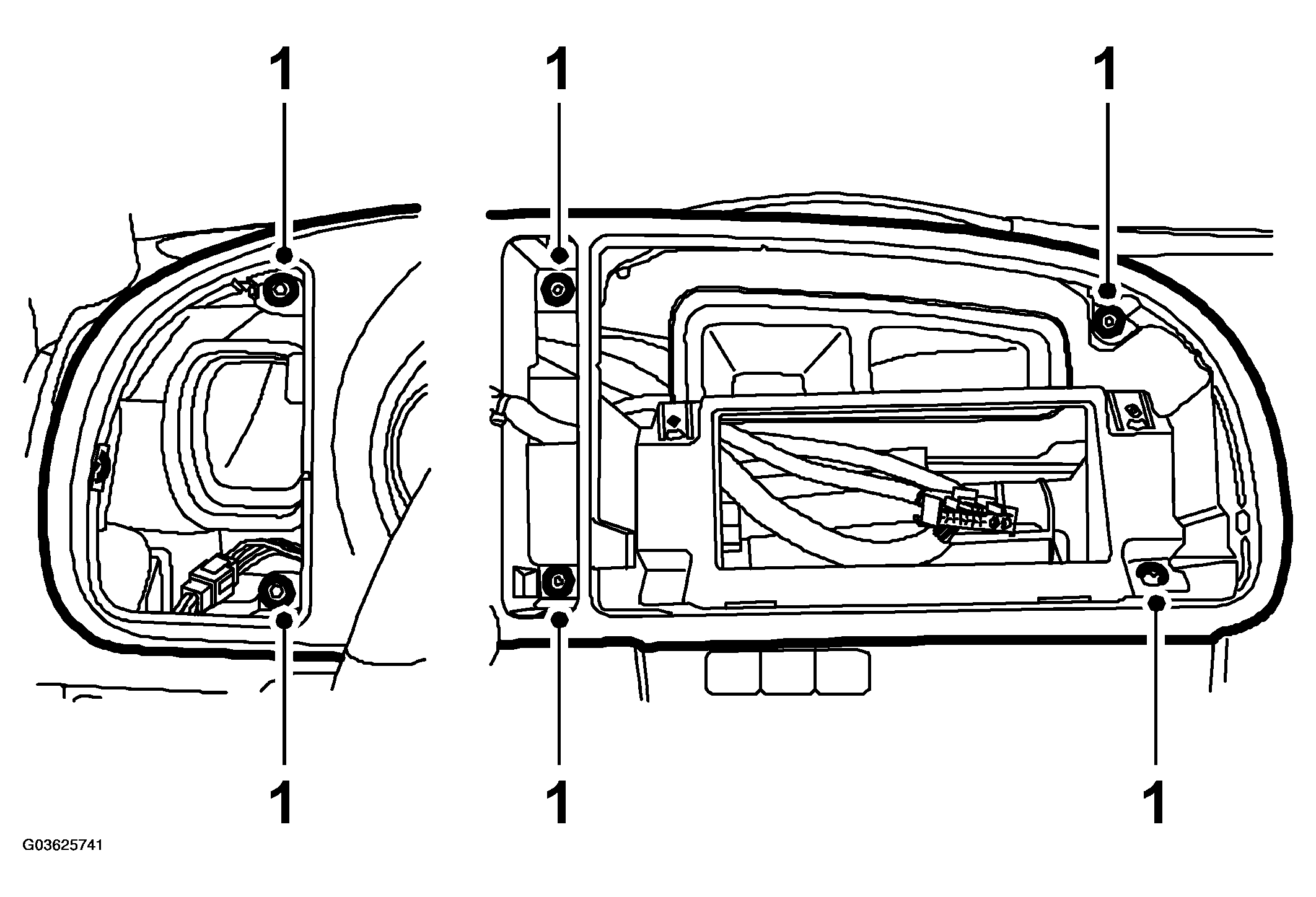

  1. Fit the instrument panel.
    Fig 1: Illustration For Step 1
    G03625741Courtesy of SAAB-SCANIA OF AMERICA, INC.

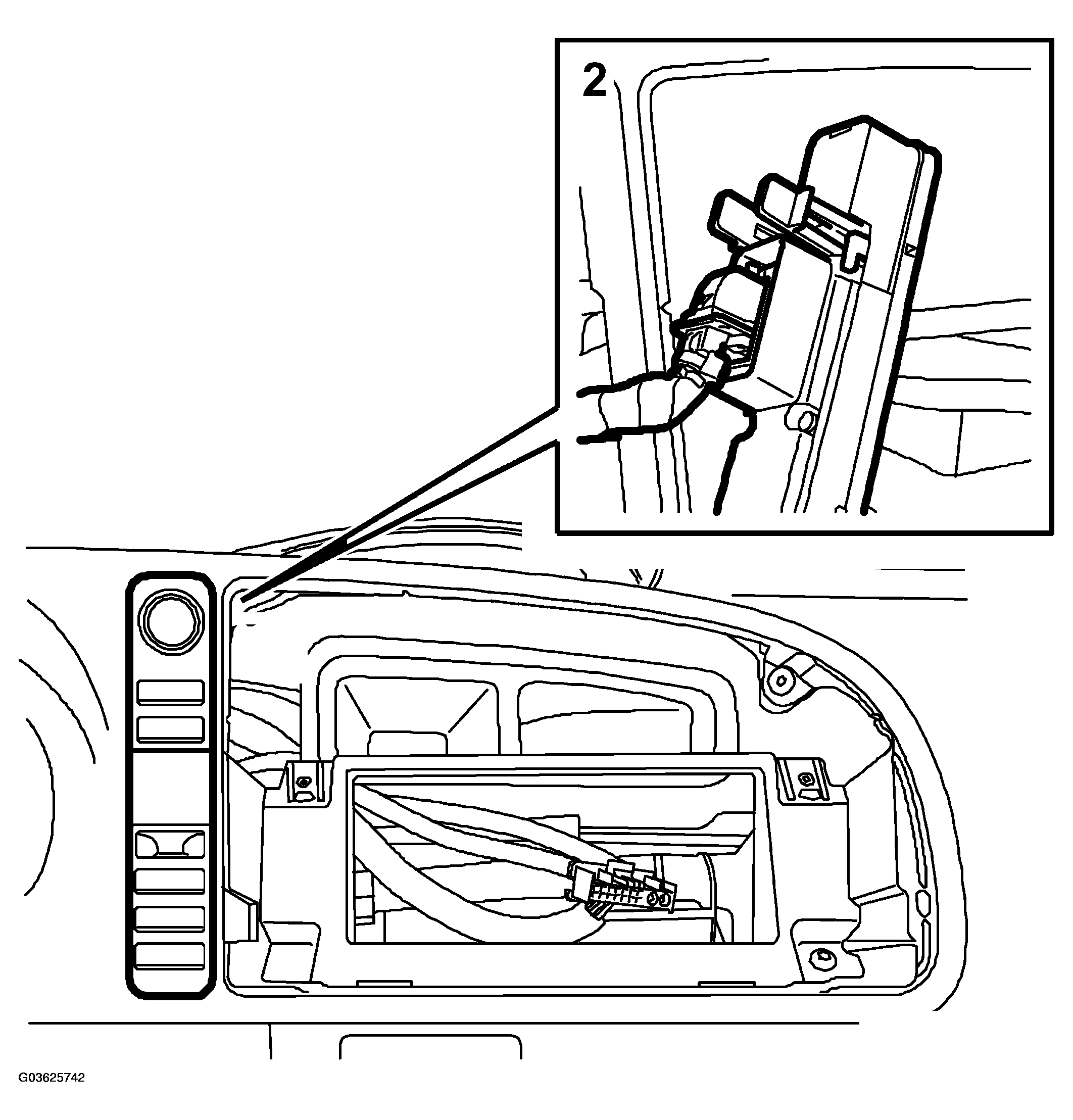

  2. Connect the SIDC and fit it by engaging the lugs on the lower edge and then pushing in the upper edge.
    Fig 2: Illustration For Step 2
    G03625742Courtesy of SAAB-SCANIA OF AMERICA, INC.

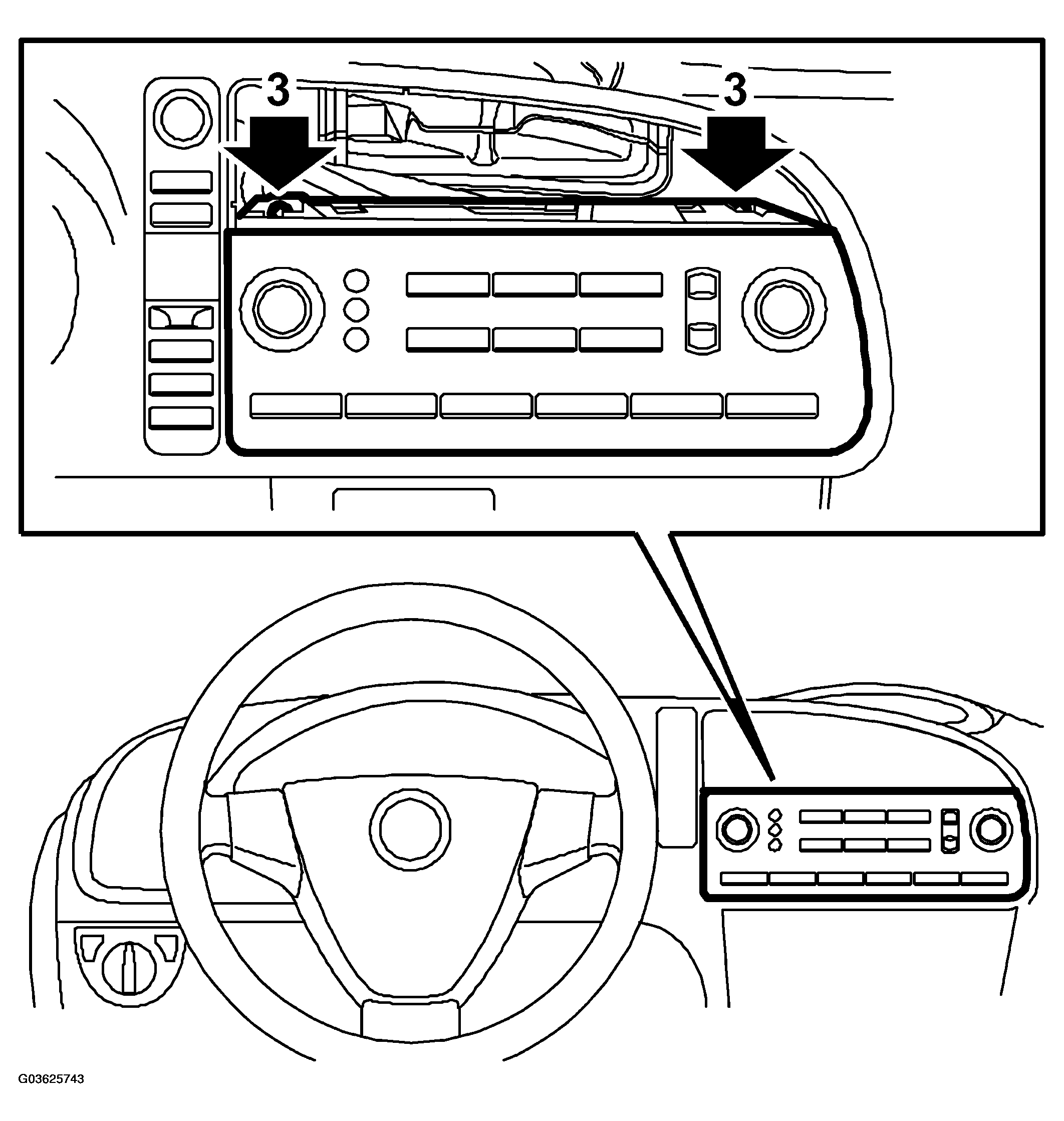

  3. Fit the ICM.
    Fig 3: Illustration For Step 3
    G03625743Courtesy of SAAB-SCANIA OF AMERICA, INC.

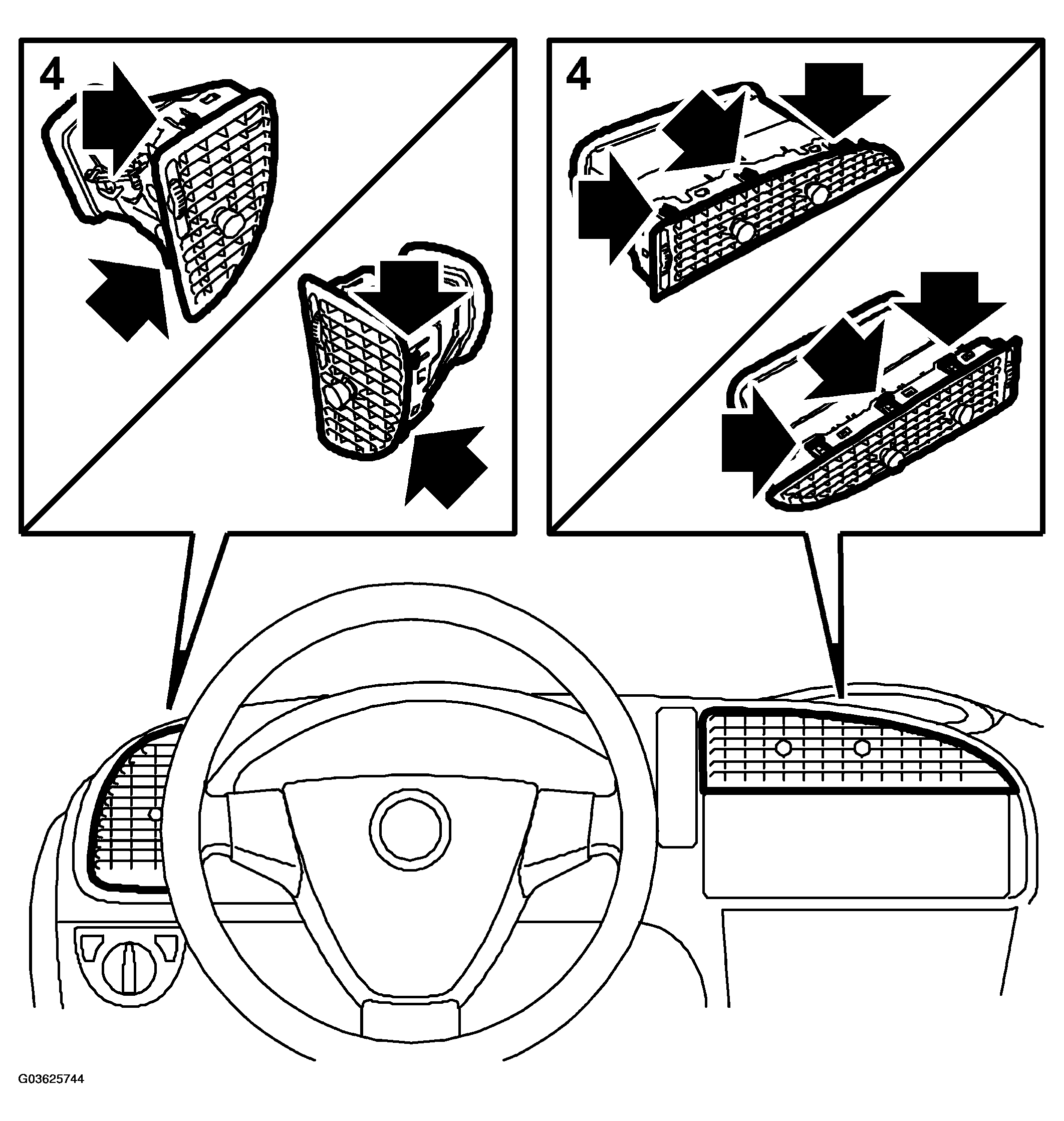

  4. Position and fit the centre panel vent and the driver's panel vent. Make sure the catches are fastened properly.
    Fig 4: Illustration For Step 4
    G03625744Courtesy of SAAB-SCANIA OF AMERICA, INC.
