To remove

Remove the rear seat backrest.

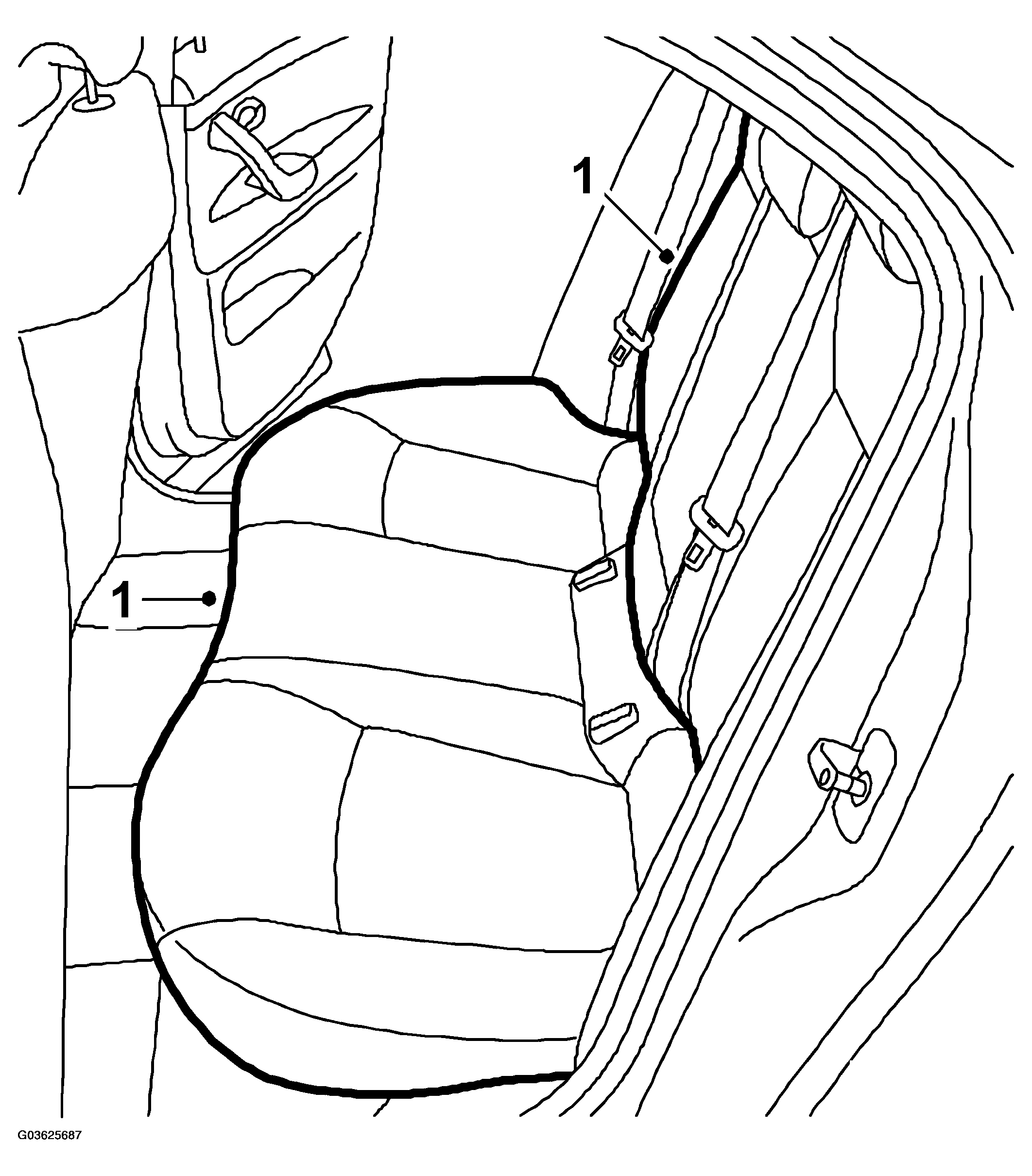

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift off the floor panel from the centre mounting of the rear back rests. Lift out the floor panel.

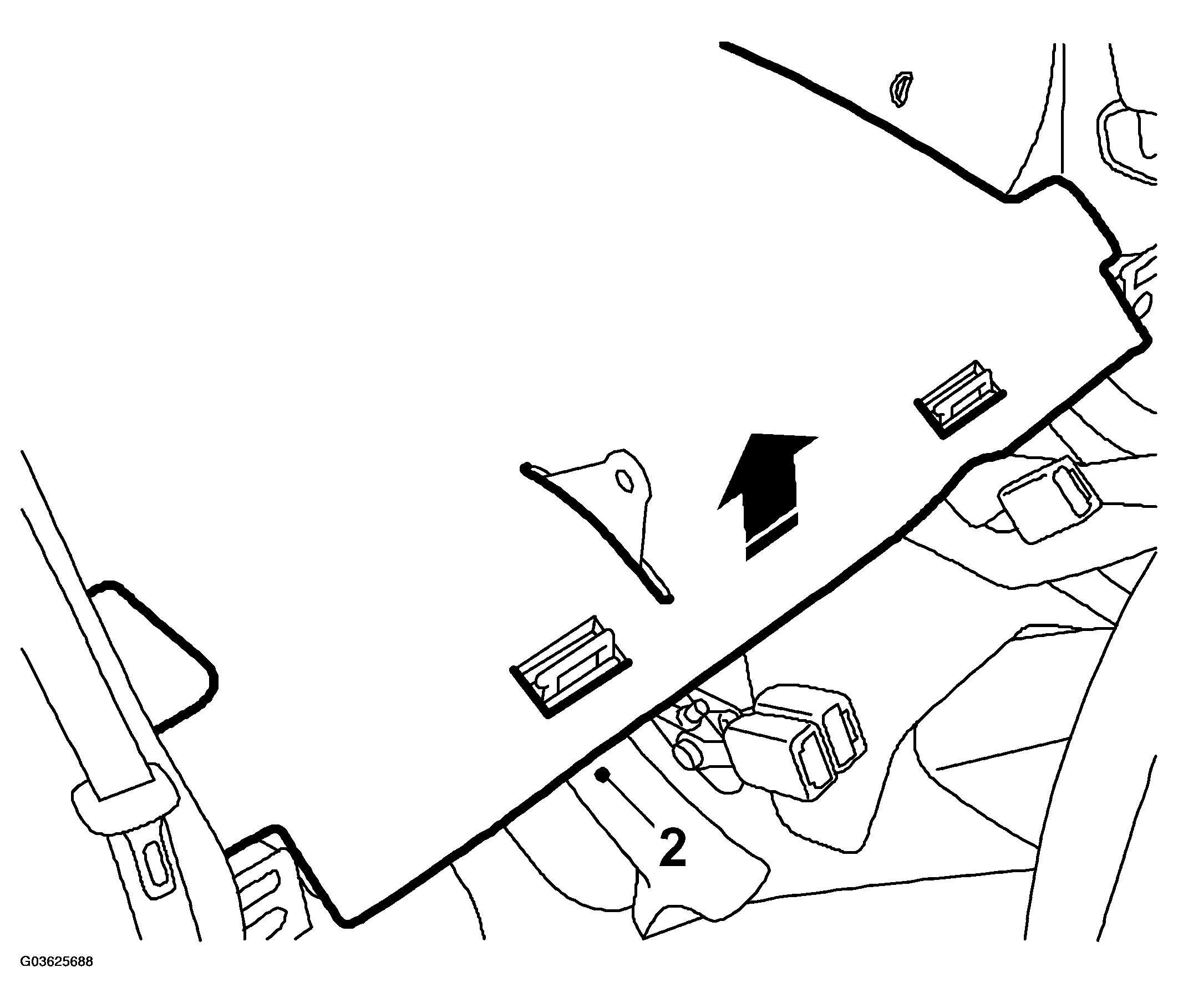

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the two-stage rivets from the parcel shelf.

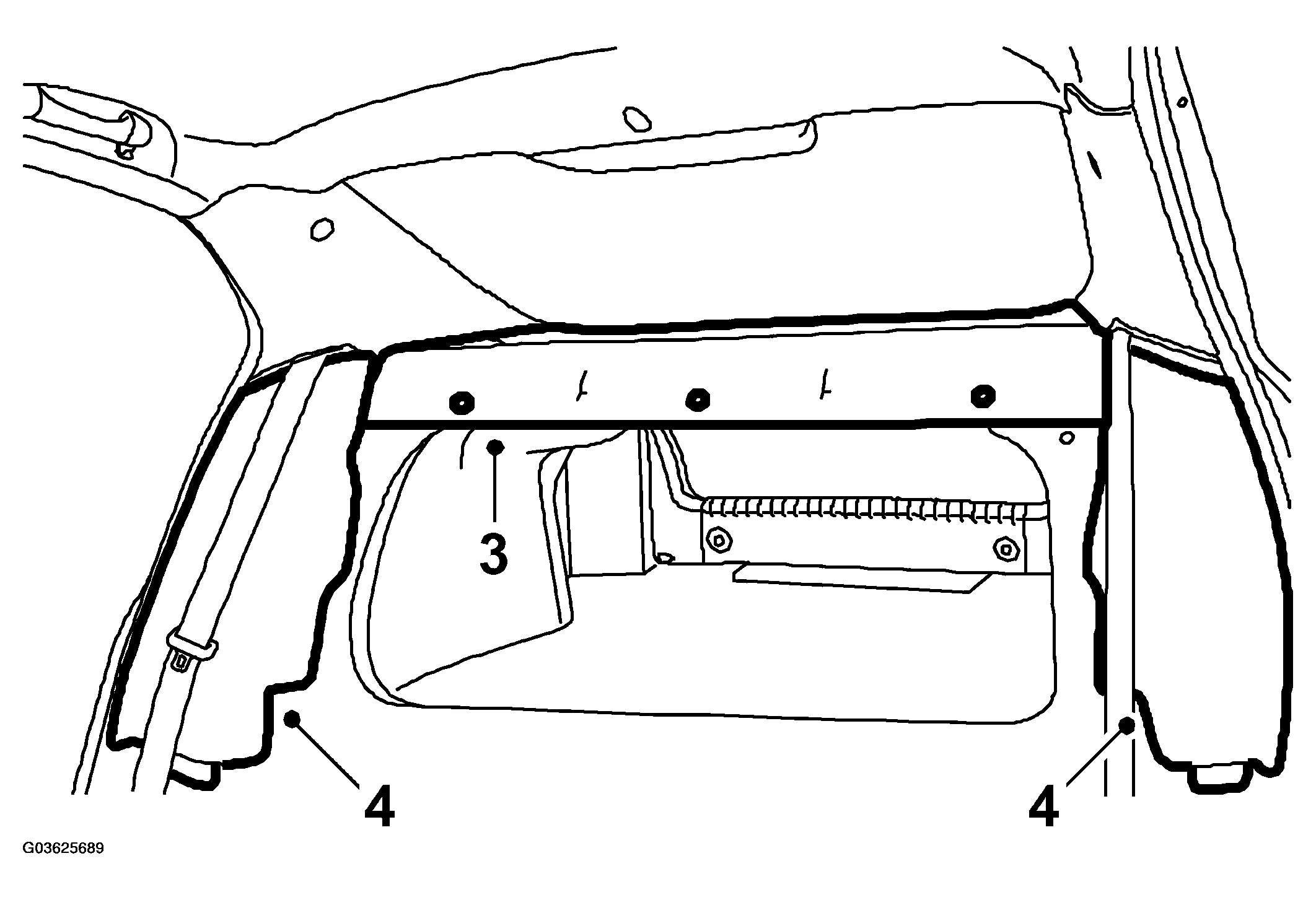

Fig 3: Illustration For Steps 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the Side bolsters.
Remove the clips which attach the luggage compartment inspection cover. Use the special tool 84 71 179 REMOVAL TOOL, CLIPS . Remove the inspection cover.

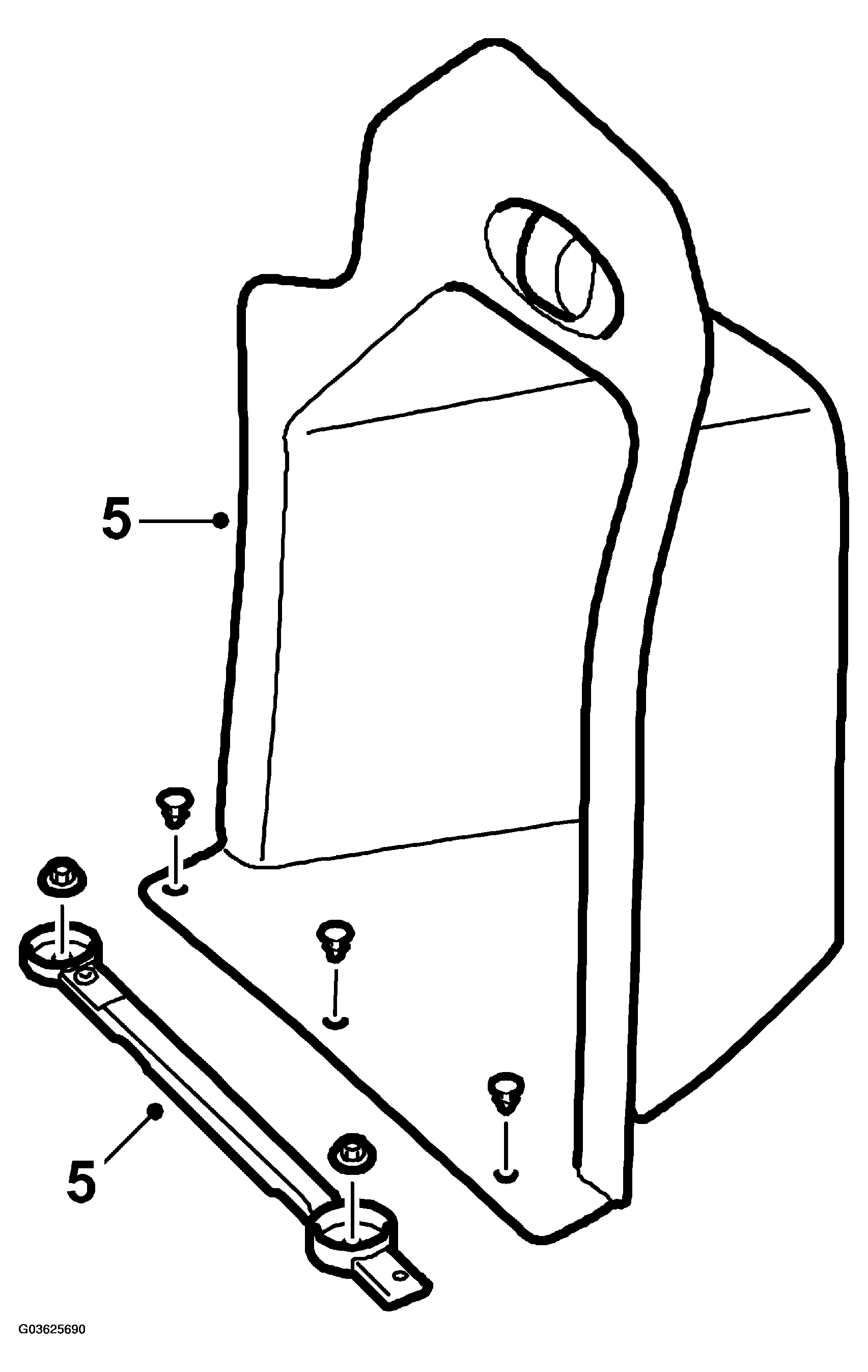

Fig 4: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the rivets and clips from the luggage compartment side trim and remove the trim.

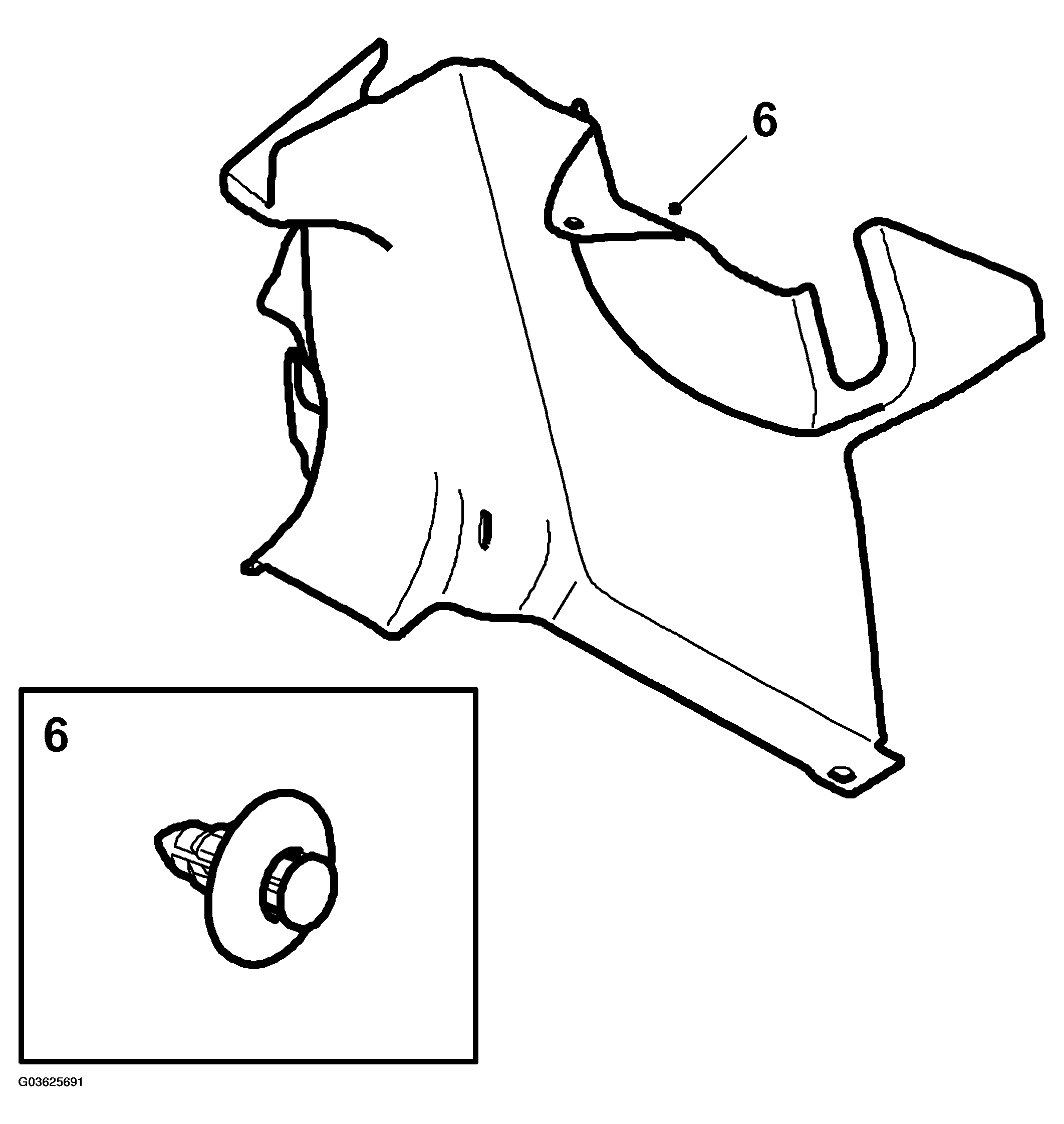

Fig 5: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
