To fit

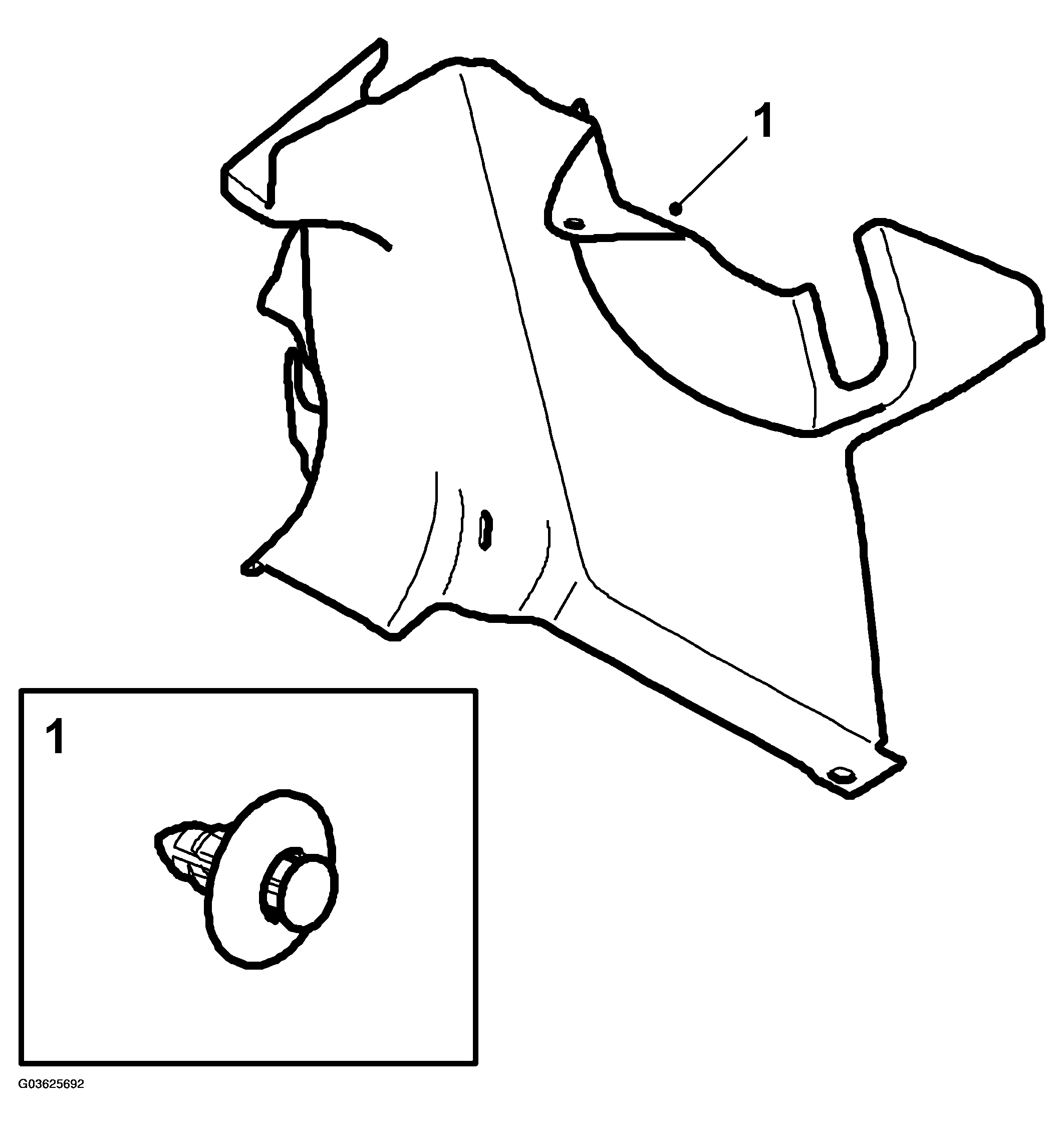

Position the luggage compartment side trim and fit the side trim clips and rivets.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

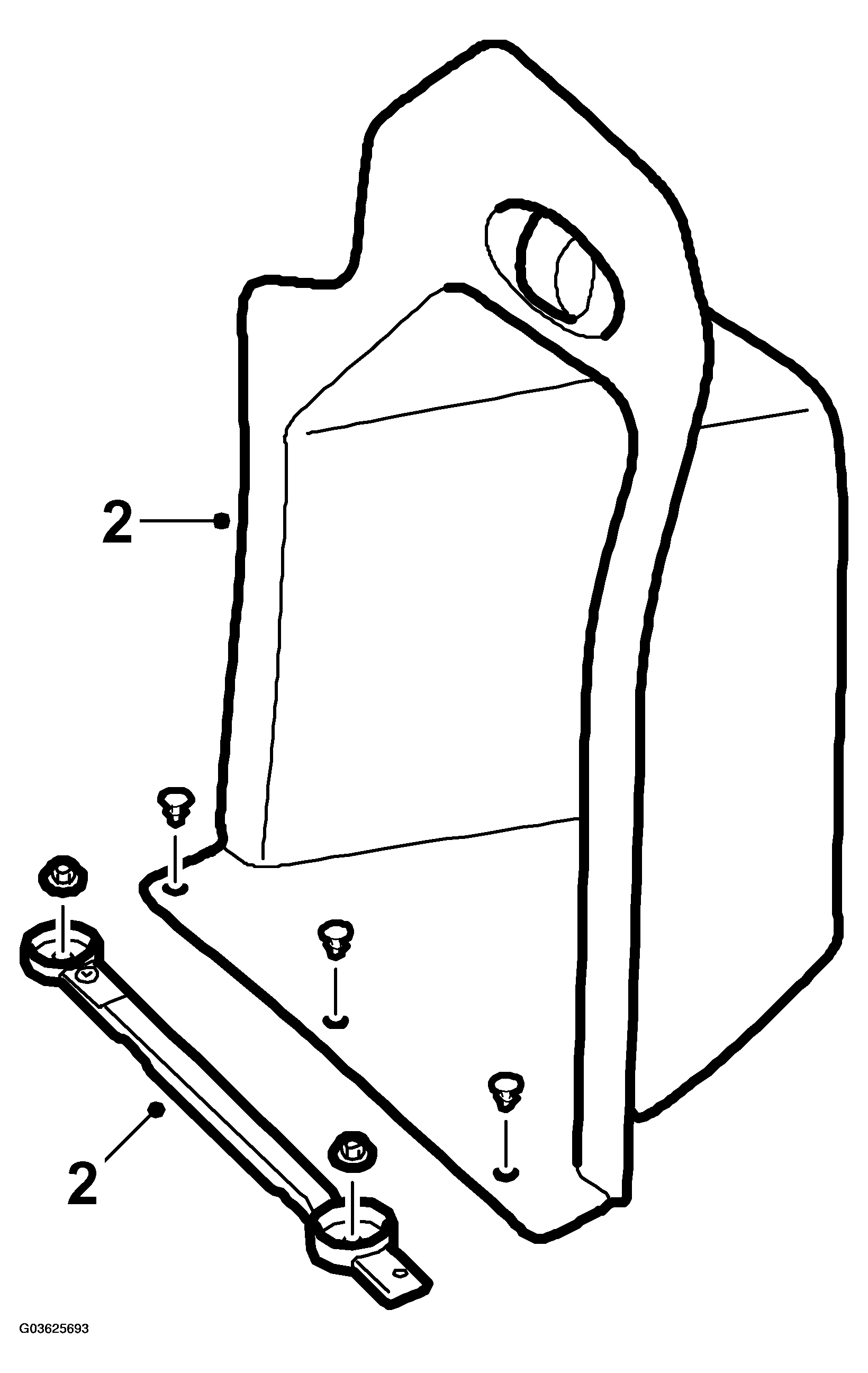

Fit the luggage compartment inspection cover together with the associated clips.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

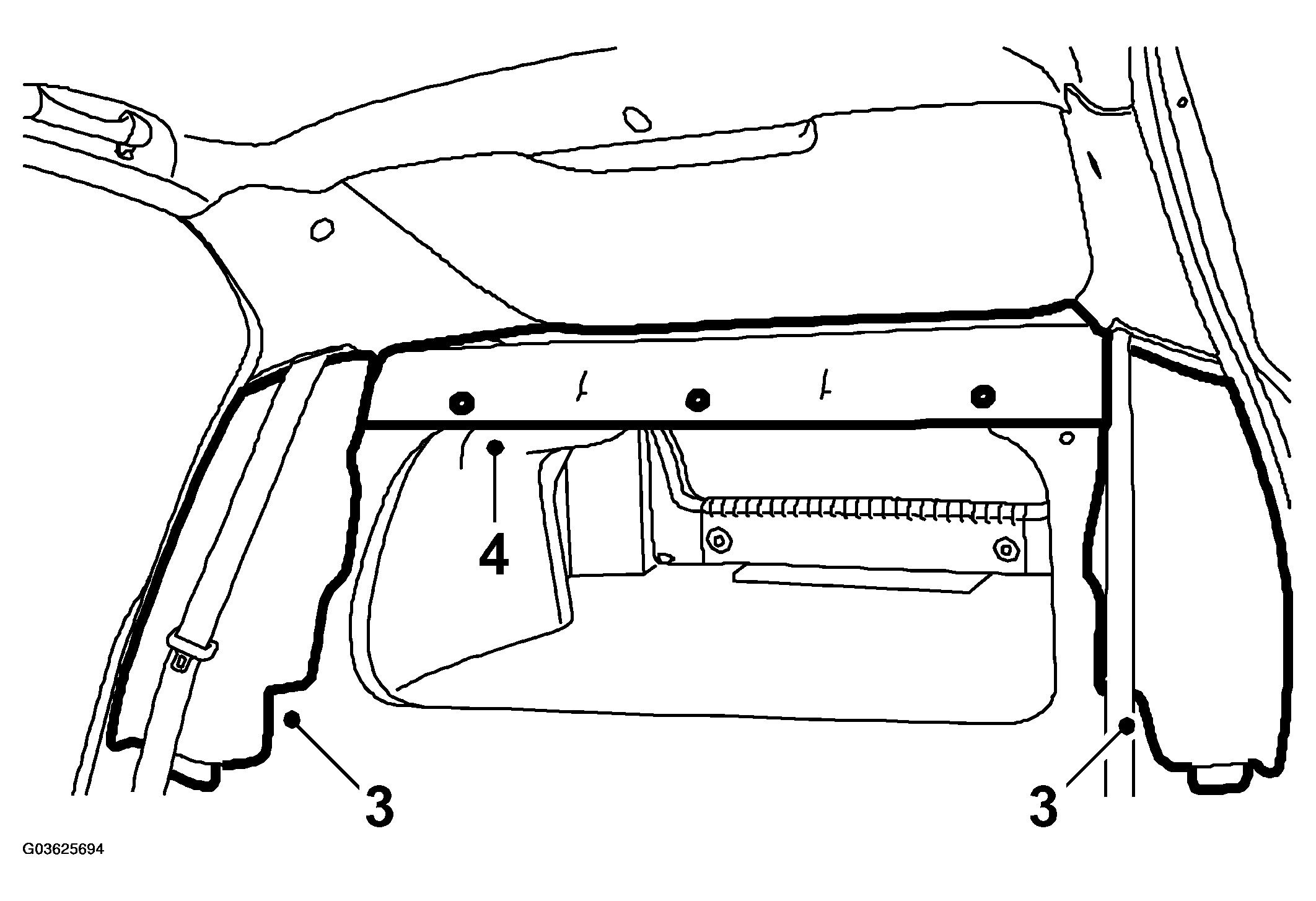

Fit the Side bolsters.

Fig 3: Illustration For Steps 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the two-stage rivets on the parcel shelf.

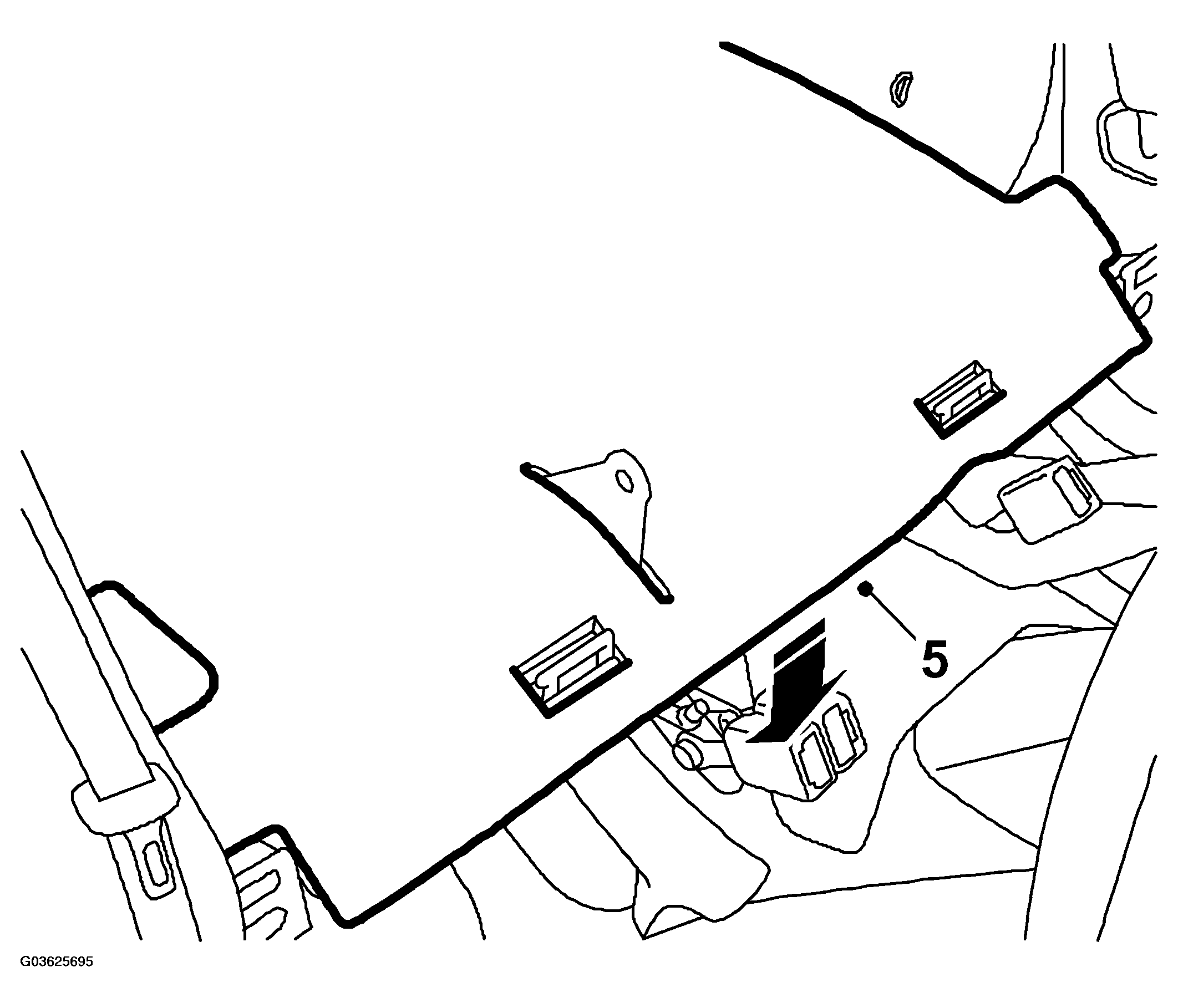

Lift in the floor panel. Make sure that the floor panel is correctly located over the centre mounting of the rear back rests.

Fig 4: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.

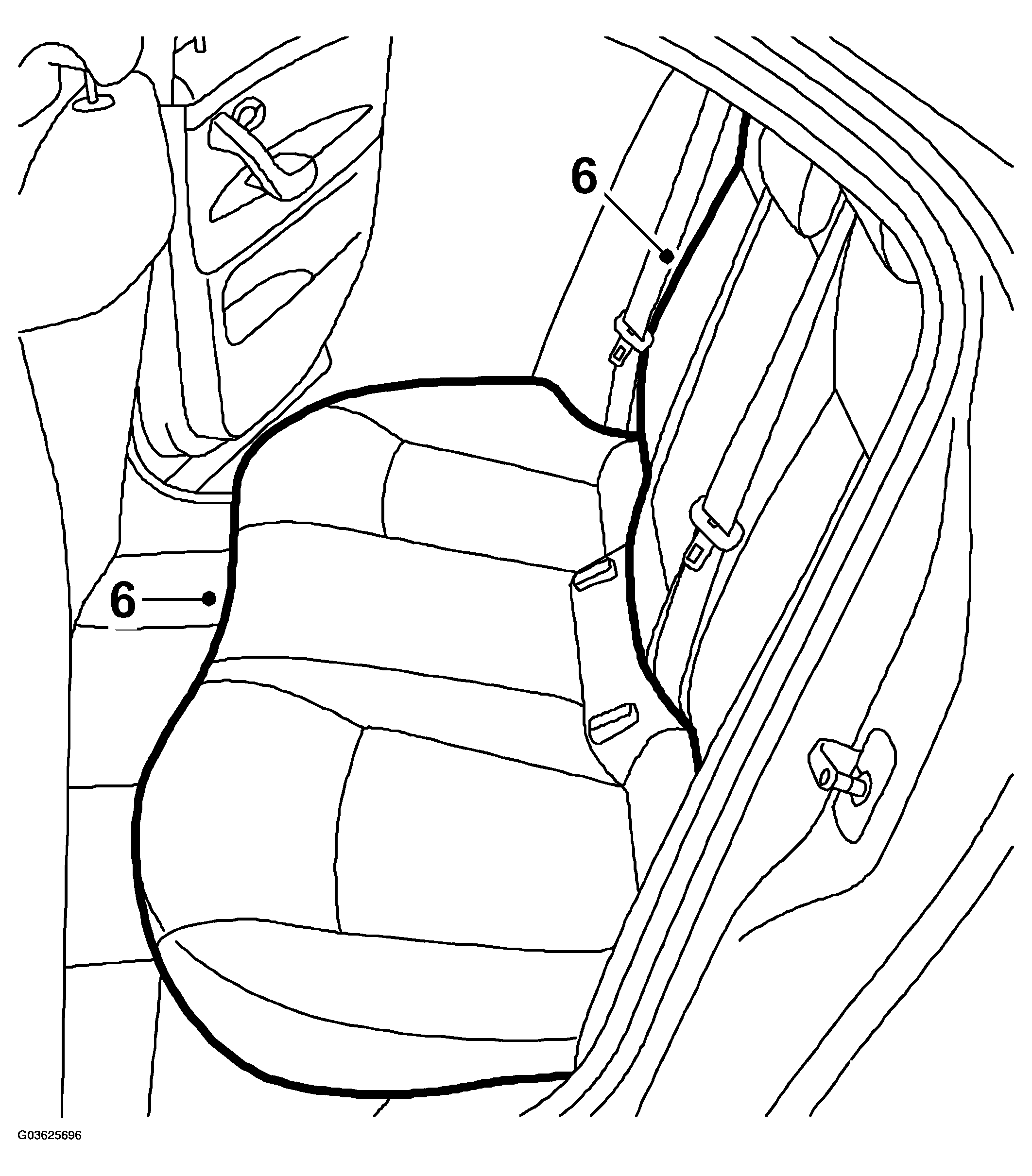

Fit the rear seat back rest.

Fig 5: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
