To fit

  1. Fit the insulation onto the hooks on the back edge of the bonnet.

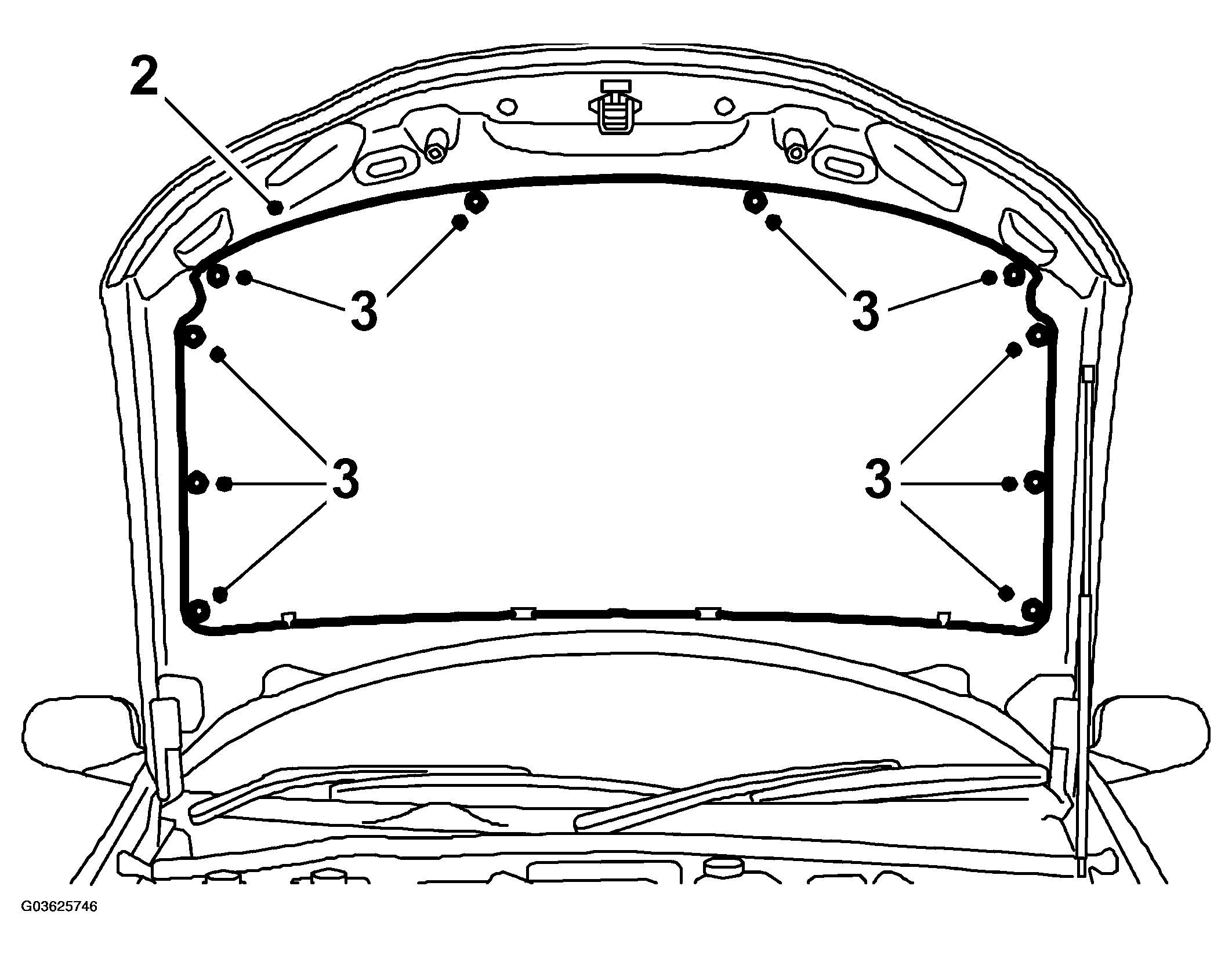

    Fig 1: Illustration For Steps 2-3
    G03625746Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Centre the insulation so that the clip holes align.
  3. Clips with screw:  Fit the clips and press in the centre screws.

    Clips with hole:  Fit the clips.

  4. Close the bonnet.
