To fit

Lubricate the shoe sliding and contact surfaces with 89 96 993 Special paste.
Old version

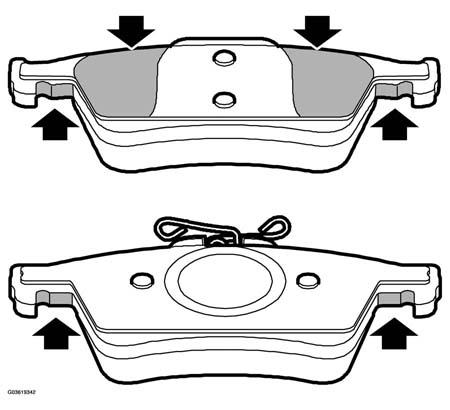

Fig 1: Lubricating Shoe Sliding And Contact Surfaces (Old Version)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

New version

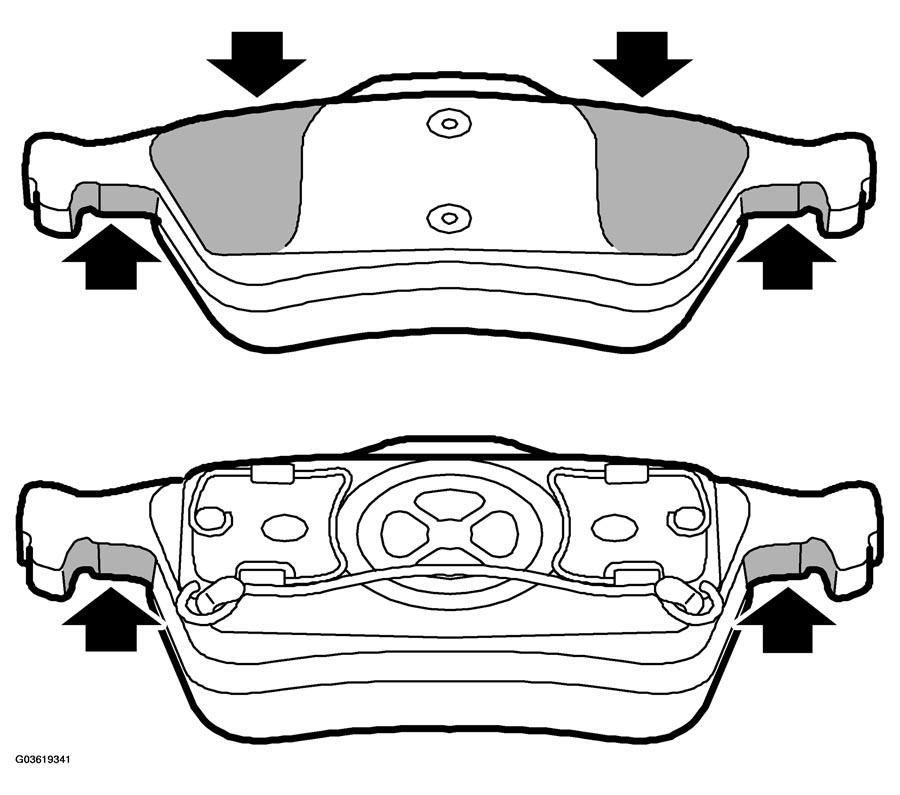

Fig 2: Lubricating Shoe Sliding And Contact Surfaces (New Version)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the brake pads.
NOTE: Make sure the springs on the inner pad enter the groove in the piston.

Old version

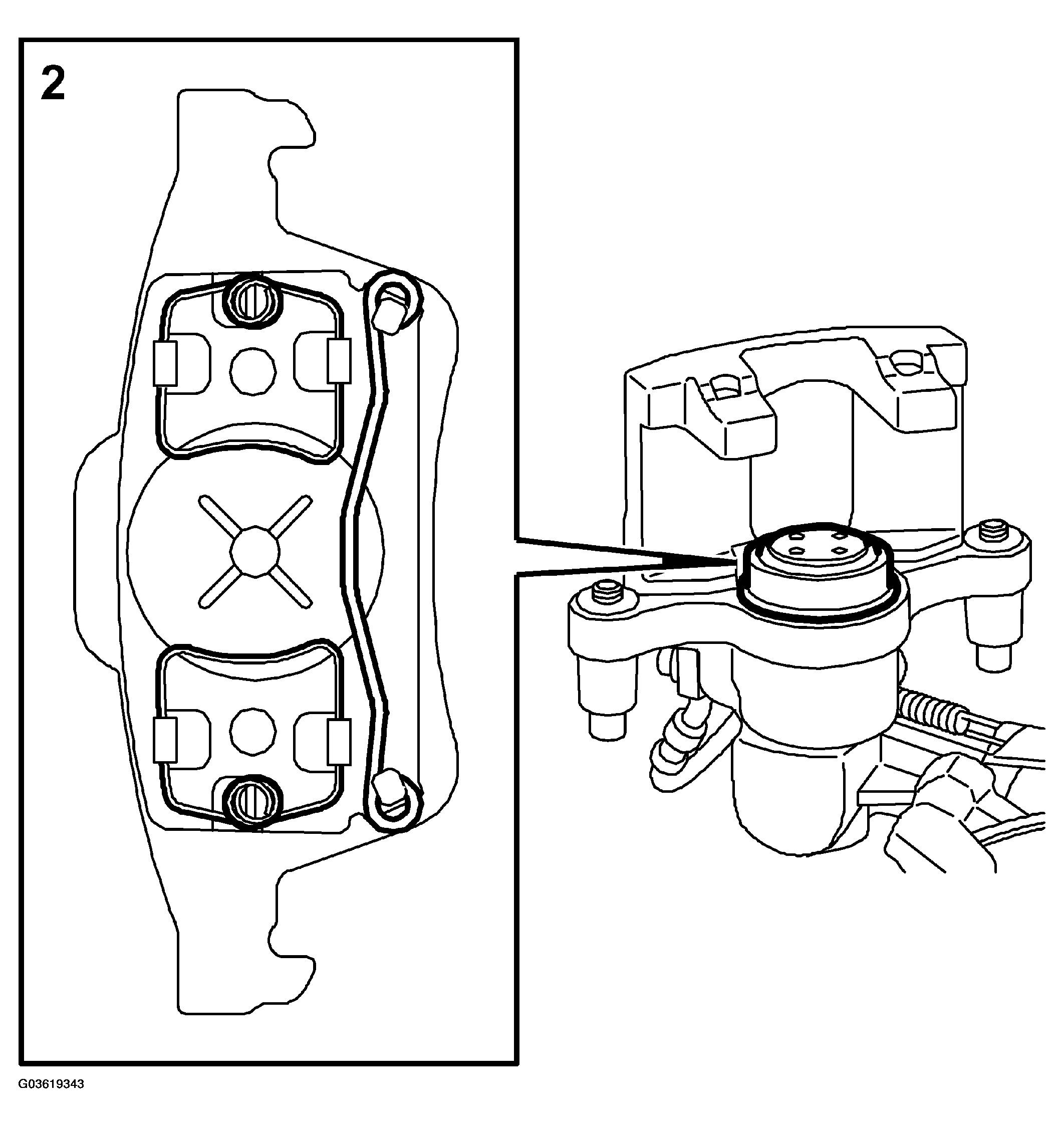

Fig 3: Identifying Springs On The Inner Pad Enter The Groove In The Piston (Old Version)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

New version

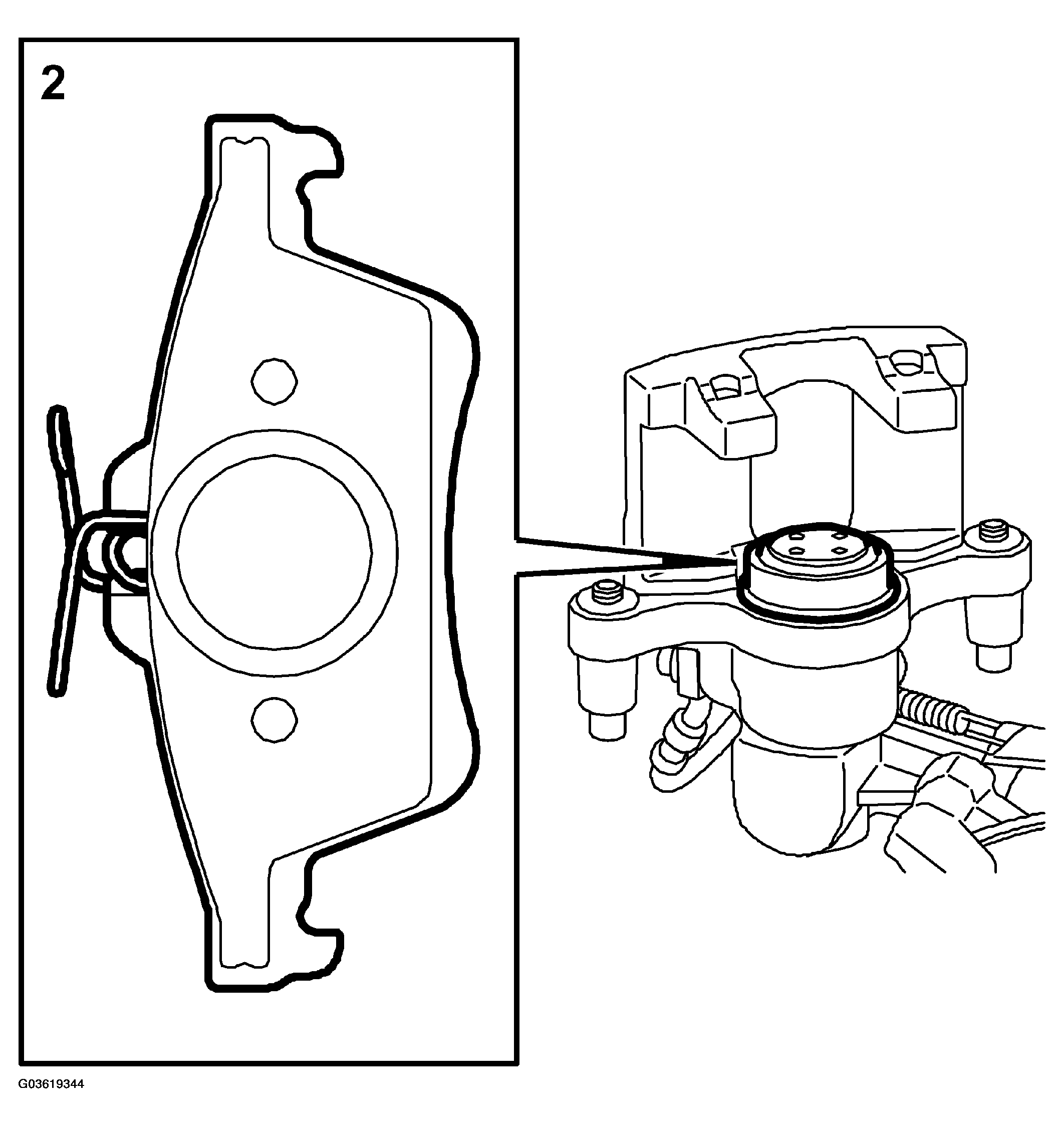

Fig 4: Identifying Springs On The Inner Pad Enter The Groove In The Piston (New Version)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the hydraulic body.
Tightening torque 28 Nm (21 lbf ft)

Fit the protective covers.

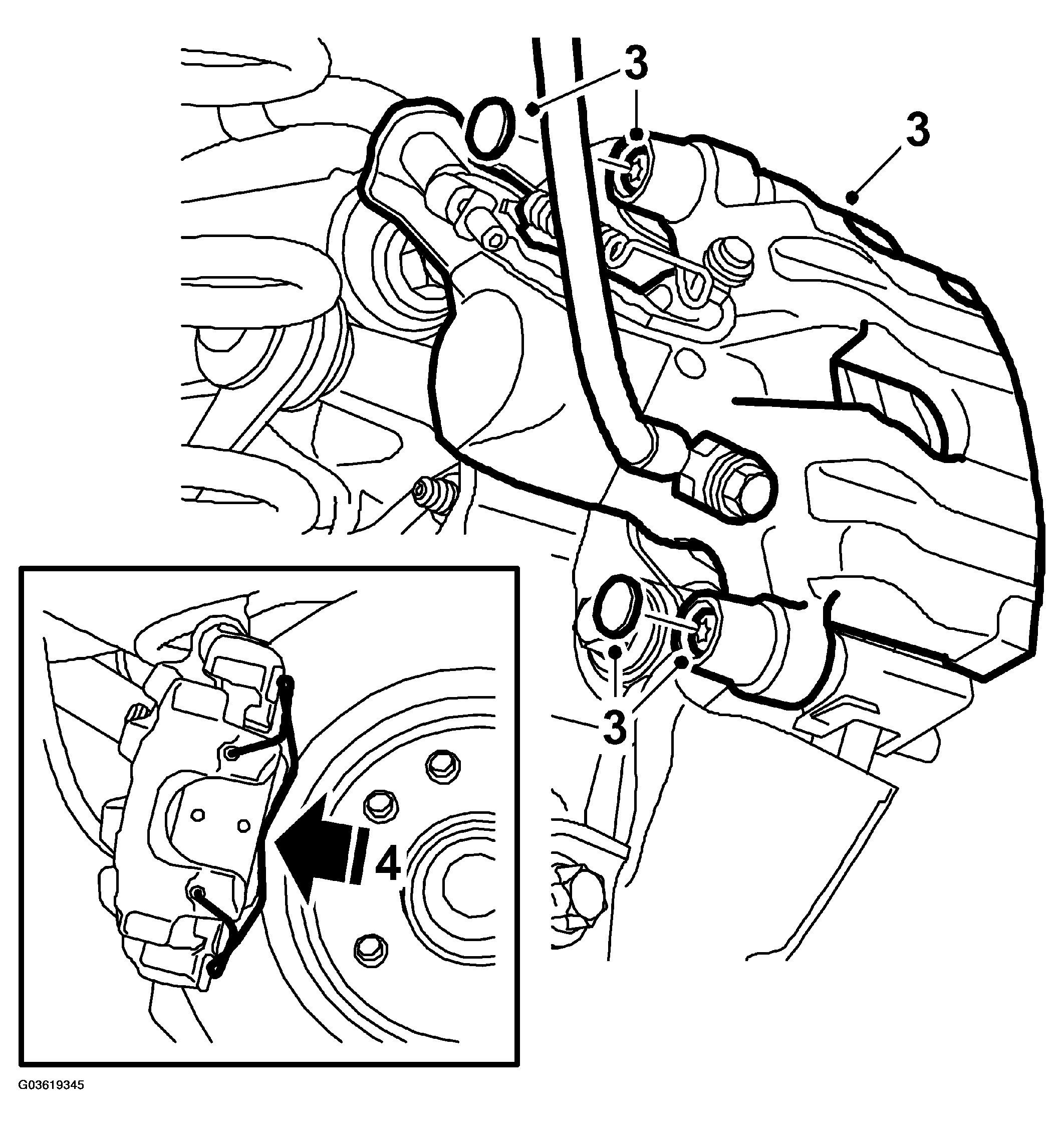

Fig 5: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the retaining spring to the brake caliper.
Fit the wheel.
Lower the car.
Press the brake pedal a few times to press out the brake pistons and the handbrake adjustment.
Check the brake fluid level and top up as necessary.
Check the operation of the foot brake and handbrake.
