To fit

  1. Change the brake servo gasket.
  2. Put the brake servo in place. Secure the brake servo bolts with 74 96 268 Thread locking adhesive Fit the brake servo bolts.

    Tightening torque: 20 Nm

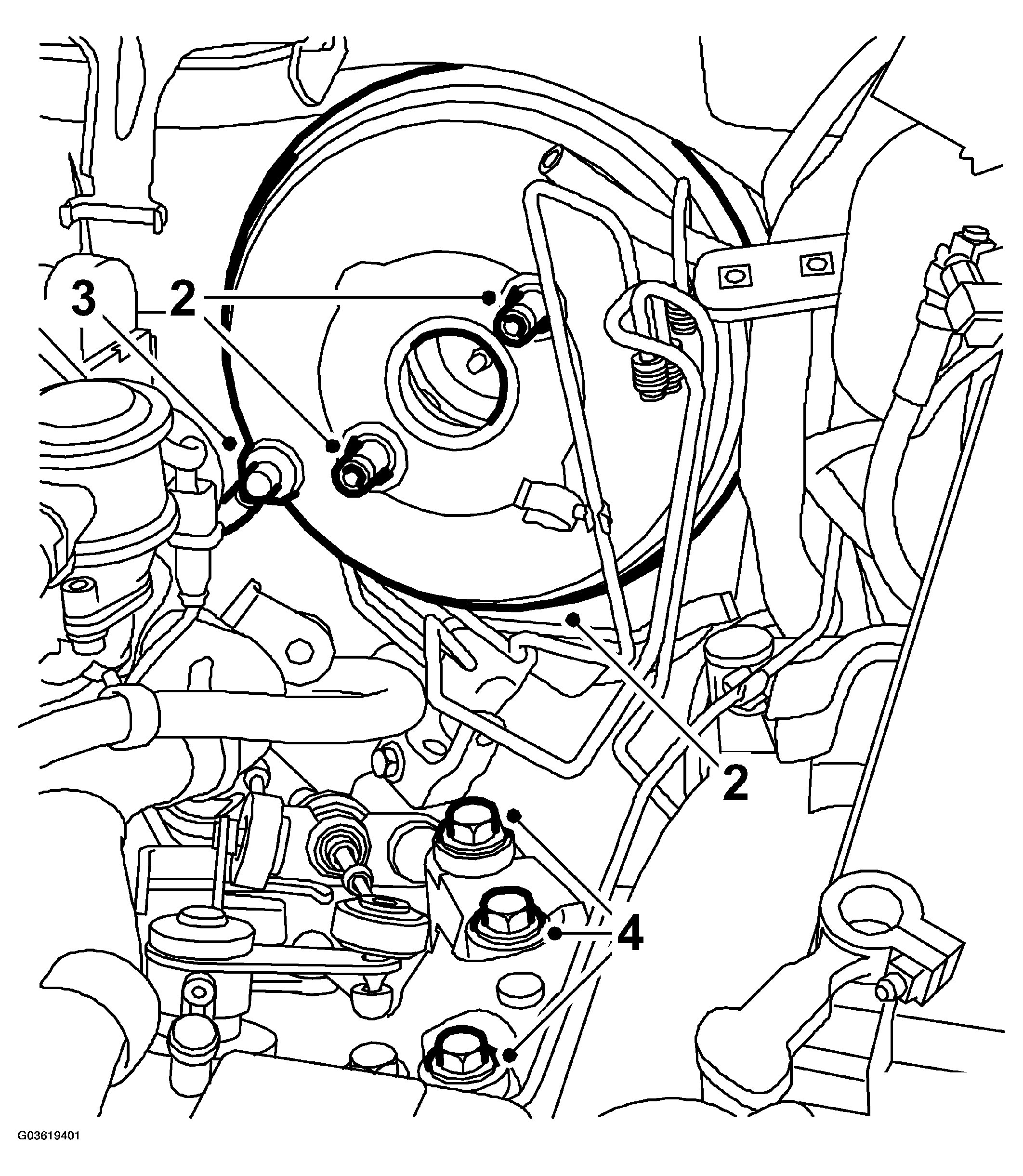

    Fig 1: Illustration For Step 2-4
    G03619401Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the vacuum hose to the brake servo.
  4. Lift up the engine. Fit the engine mounting bolts.

    Tightening torque: 70 Nm +45 ° (52 lbf ft +45°)

  5. Fit the brake pedal link bolt.

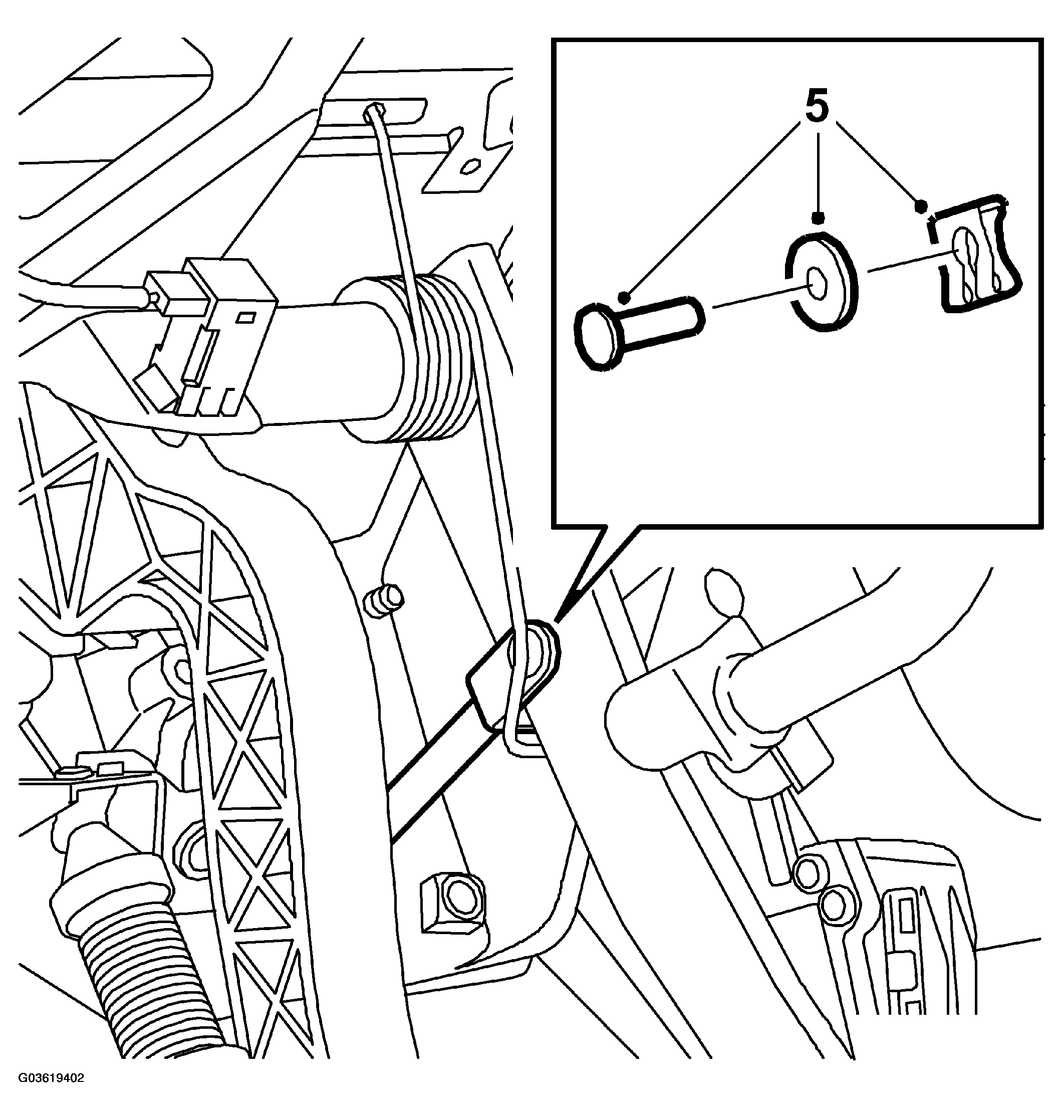

    Fig 2: Illustration For Step 5
    G03619402Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit Acoustic baffle, driver.
  7. Remove MASTER CYLINDER  .
  8. Fit Hydraulic unit, TCS/ESP
  9. Remove 82 93 706 Wing cover.
