TCS OFF indicator lamp: Notes

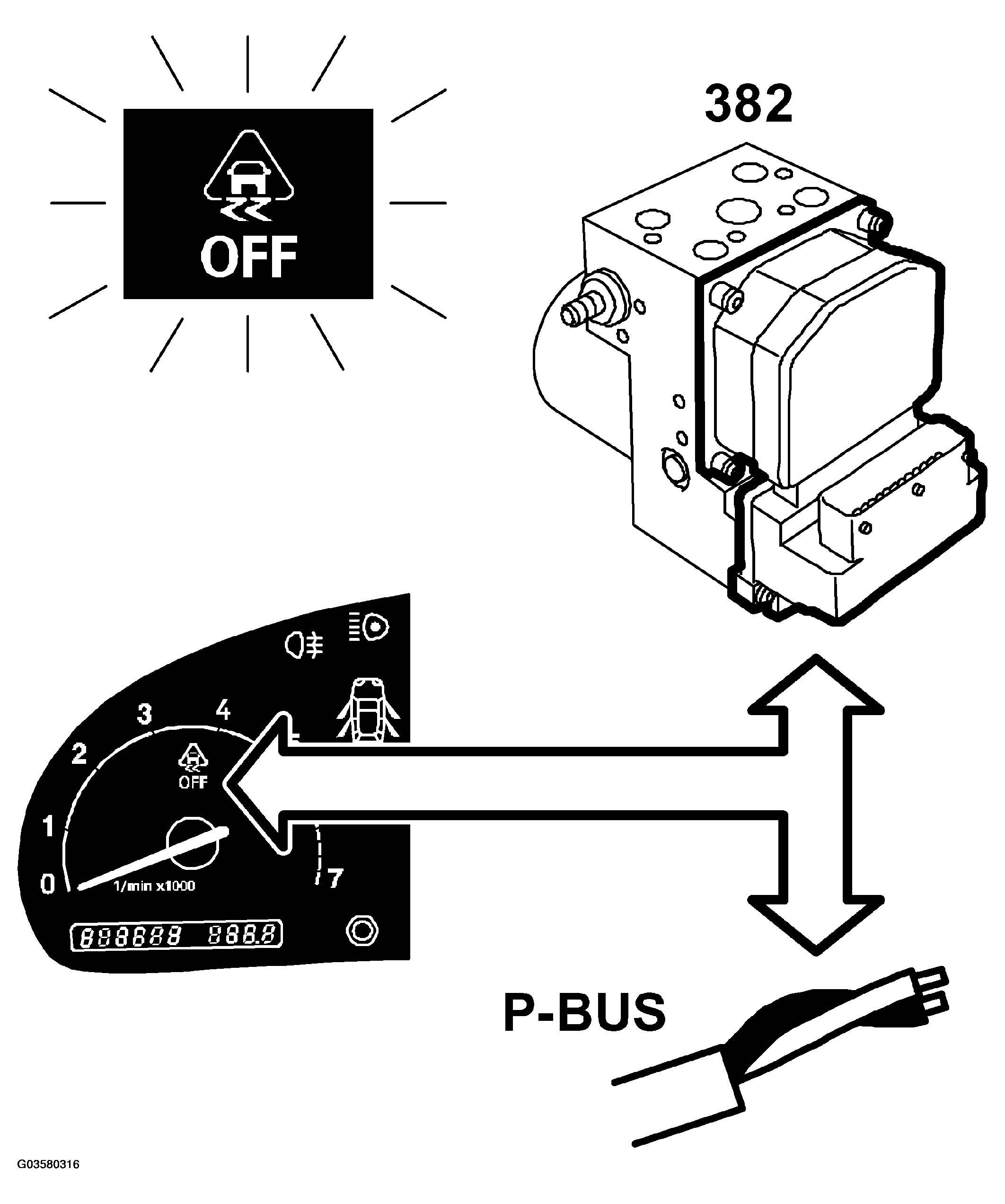

Fig 1: Identifying Communication Diagram - TCS OFF Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

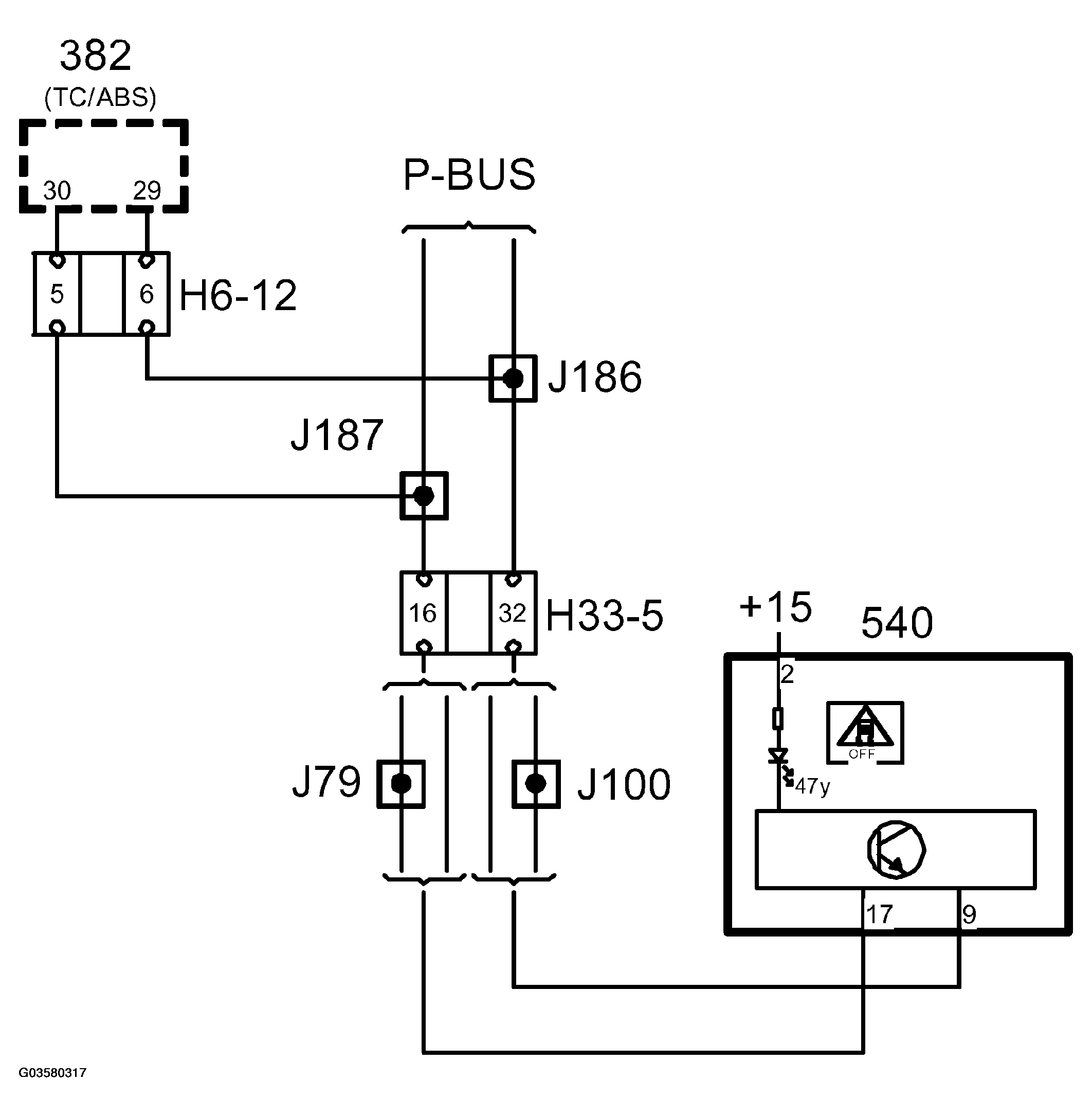

Fig 2: Identifying Communication Circuit Diagram - TCS OFF Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If a fault should occur in the TC/ABS system, the TCS OFF indicator lamp will be turned on via the P-bus. The warning lamp will also come on if the system is disengaged manually, which may be done at speeds below 60 km/h (37.5 mph) by pressing in the TCS switch. The system can be engaged again by pressing the TCS switch at an optional speed, whereby the TCS OFF indicator lamp will go out.

The lamp comes on when the ignition is turned on and will go out again after 3-5 seconds provided there are no faults.
