SPORT indicator lamp: Notes

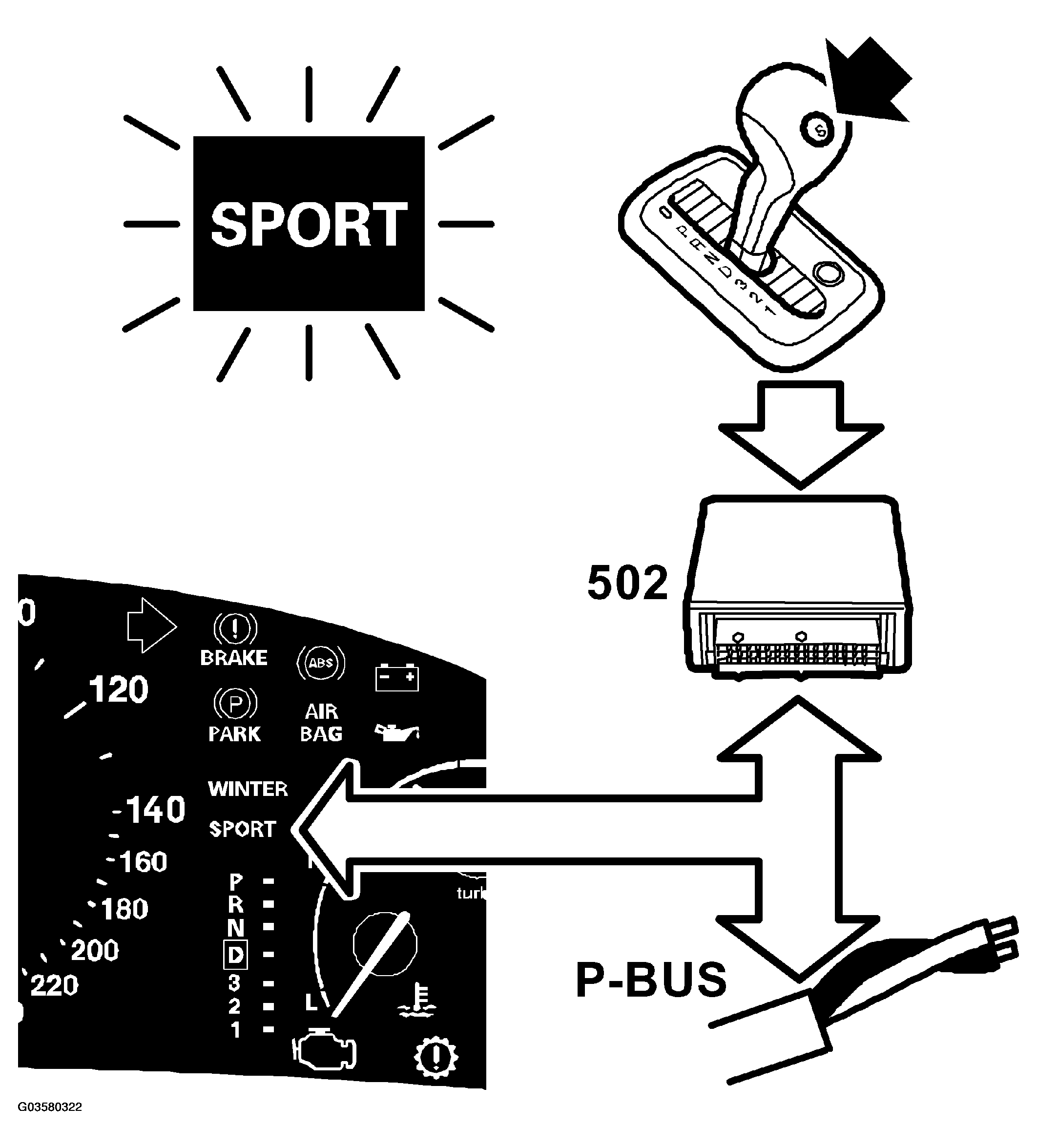

On cars with automatic transmission, the SPORT indicator lamp will come on when the Sport button (S) on the selector lever is pushed in. The sport function can be activated in positions D, 3, 2 and 1.
In SPORT mode, the transmission remains longer in each gear.

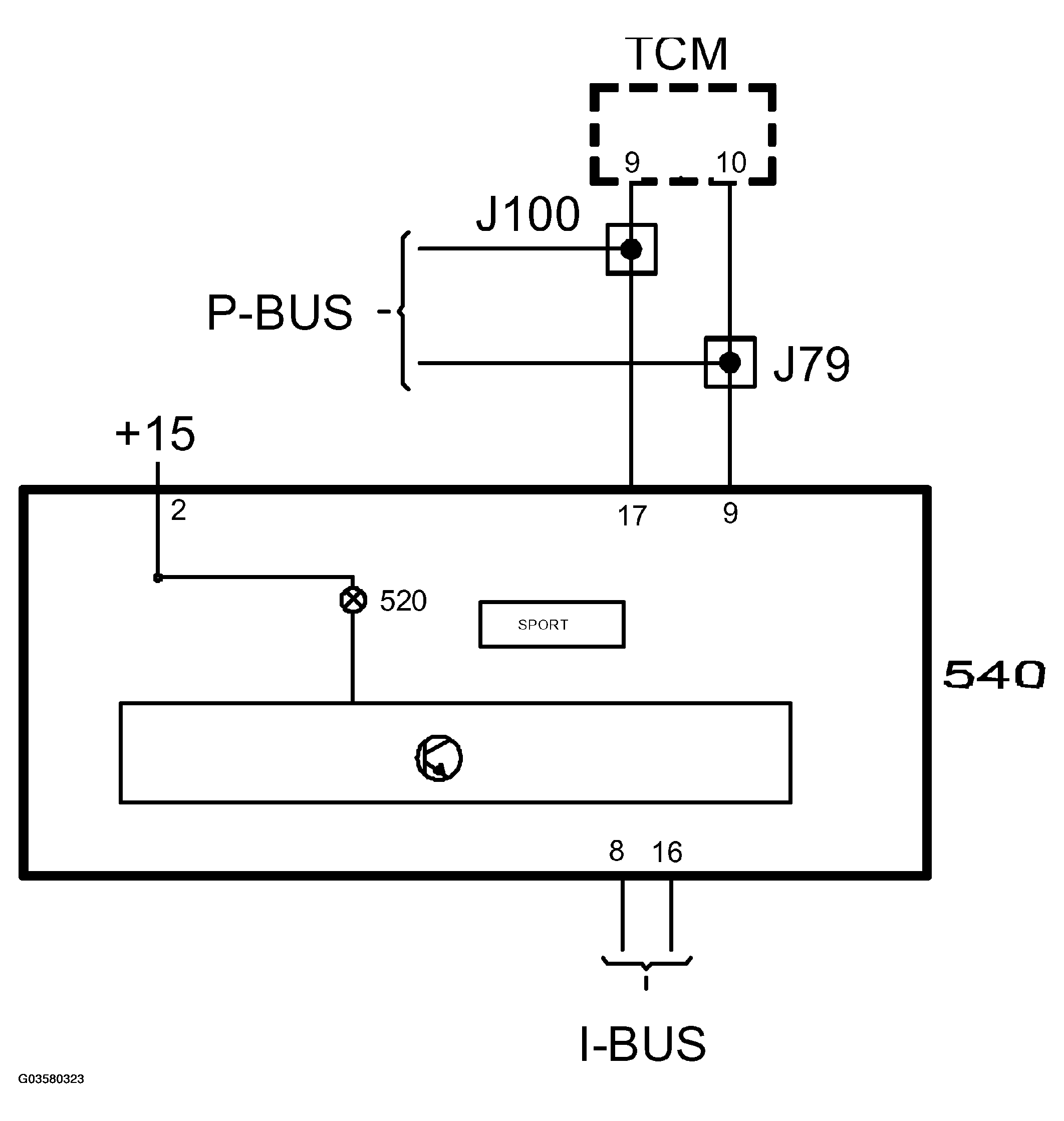

The lamp is powered by the main instrument unit and is grounded by the main instrument unit control module. TCM sends continuous bus information SPORT, unit ON/OFF.
The indicator lamp goes out under the following conditions:
- When the sport button is depressed again.
- When the transmission is in Limp-home mode.
- When Winter mode is selected.
- If the ignition is turned off and then on again.
- Selector lever to P or R.
