Main beam indicator lamp: Notes

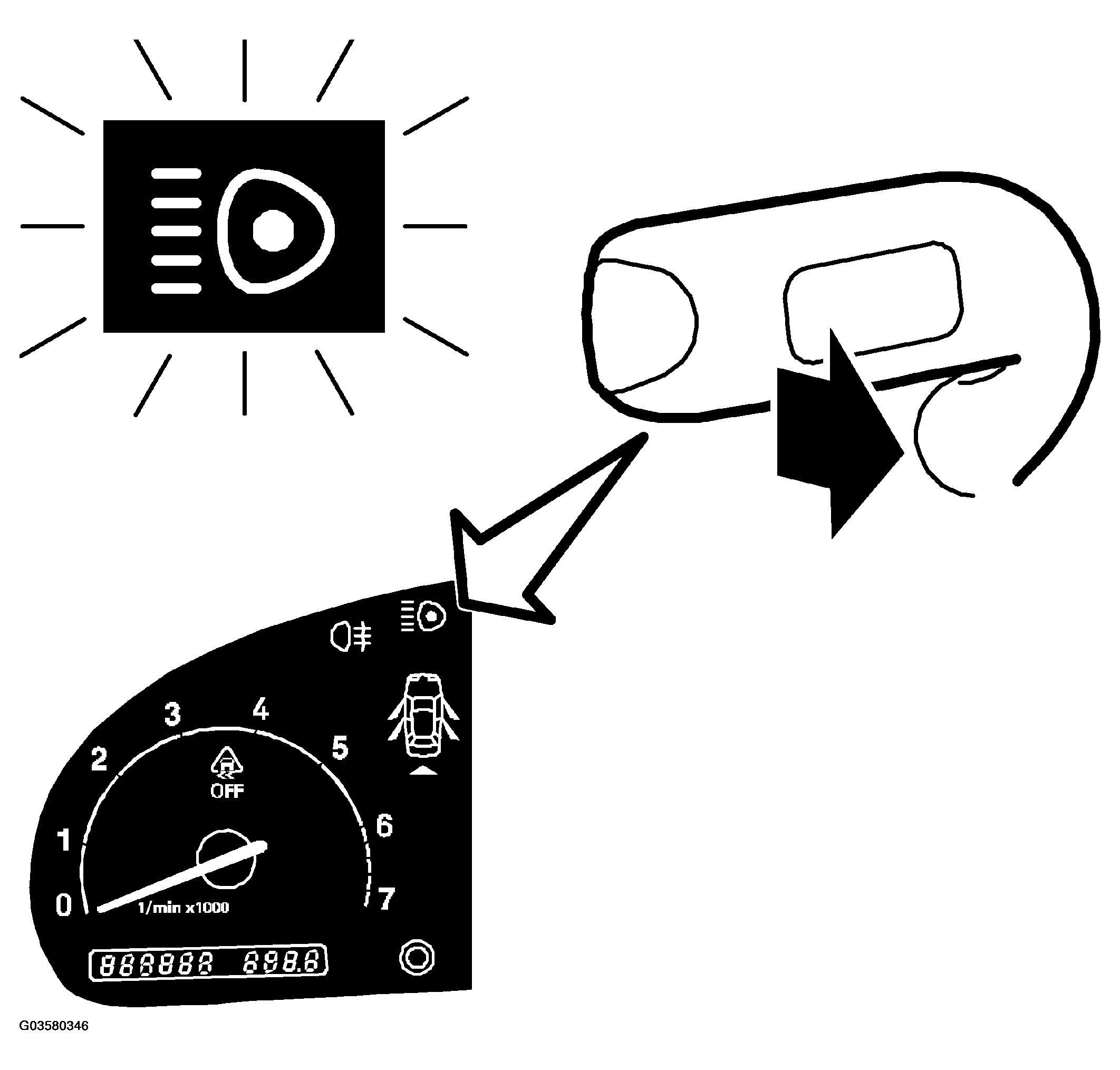

The indicator lamp is situated in the upper left-hand corner and informs the driver that main beams are switched on.

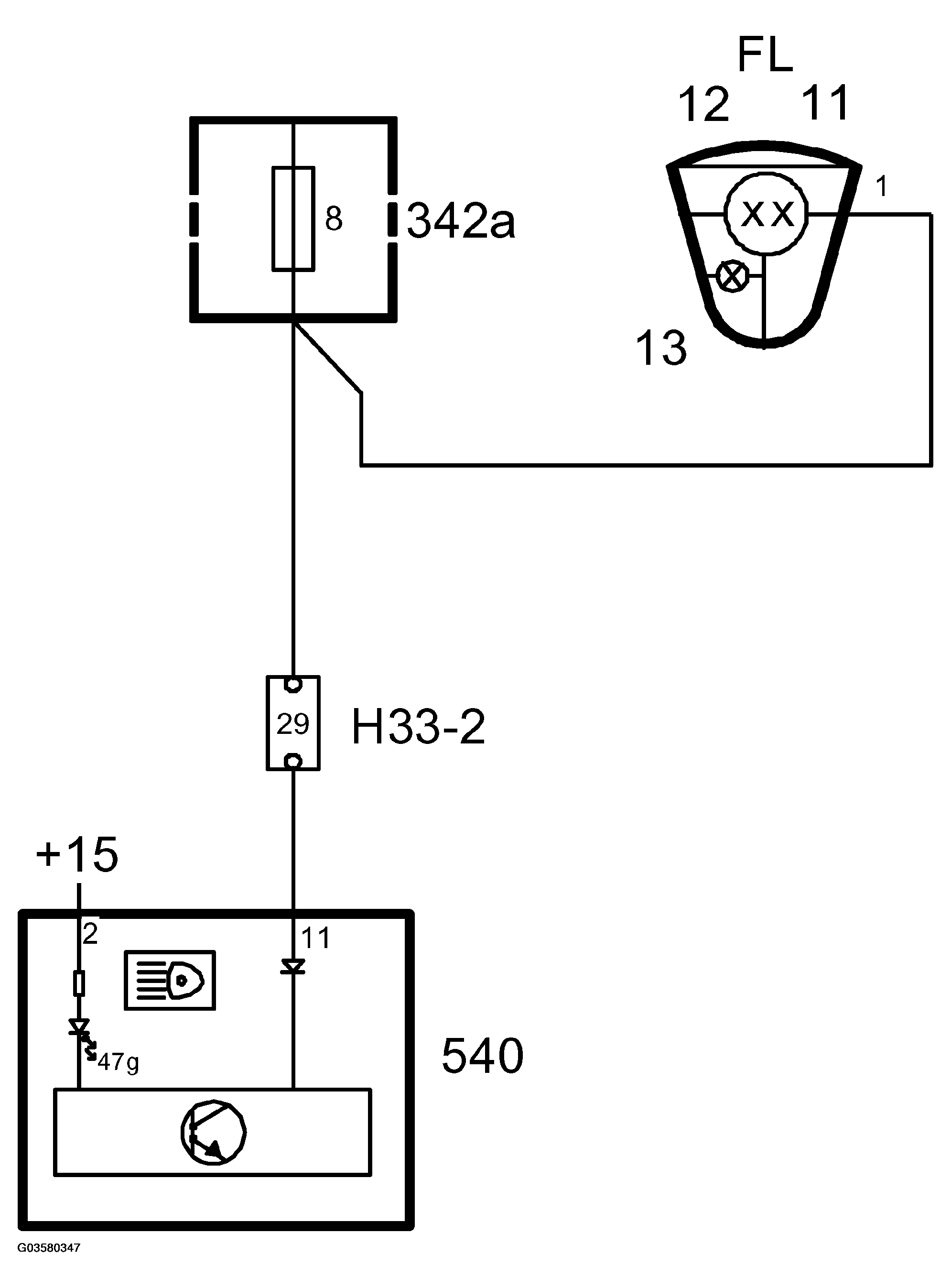

The lamp is powered by the main instrument unit and is grounded internally by the main instrument unit. The indicator lamp is turned on by the control module when the main instrument unit input (pin 11) is supplied with B+ from the main beam fuse 8.
