Indicator lamp, rear fog light: Notes

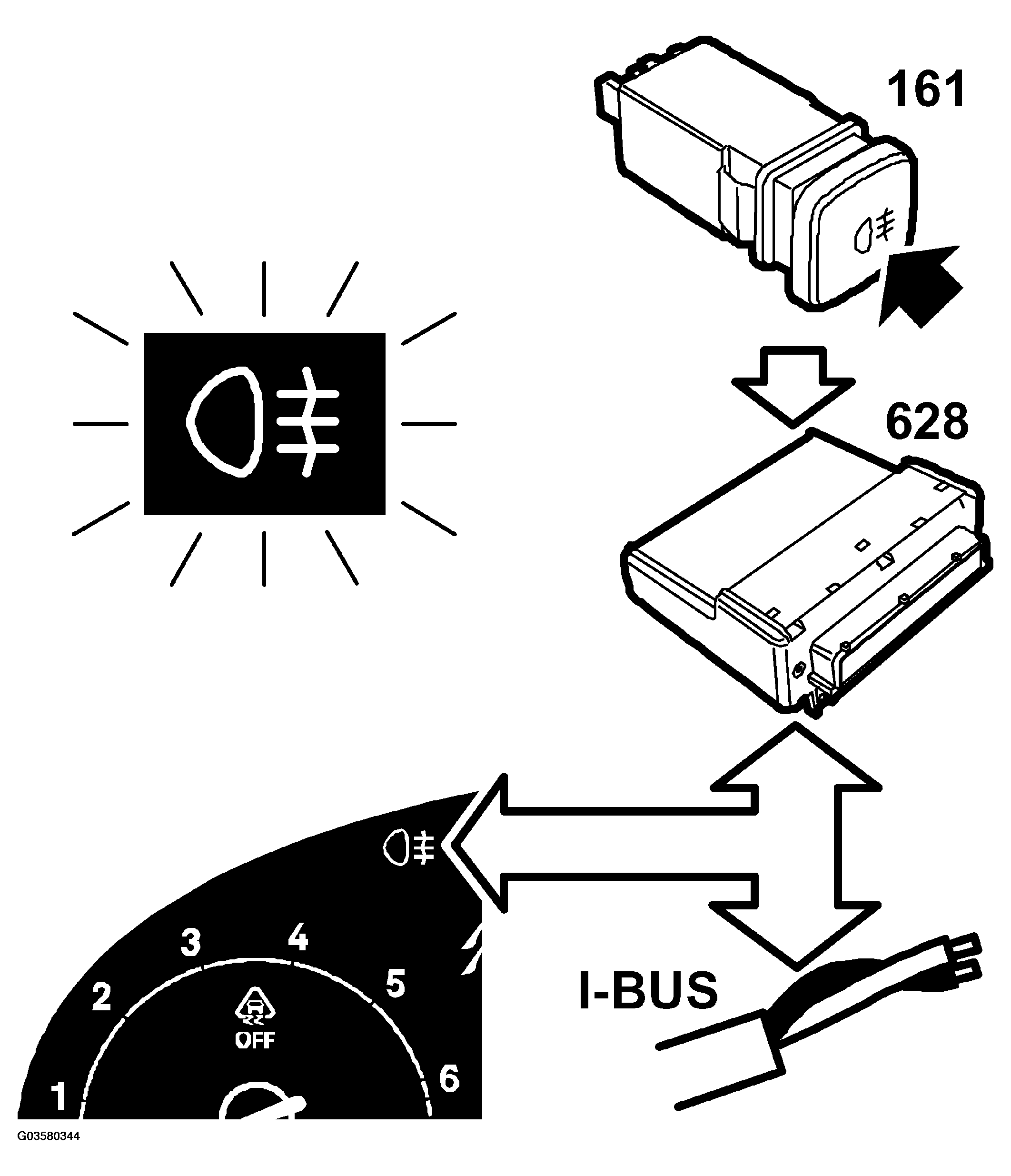

Fig 1: Identifying Communication Diagram - Indicator Lamp, Rear Fog Light

Courtesy of SAAB-SCANIA OF AMERICA, INC.

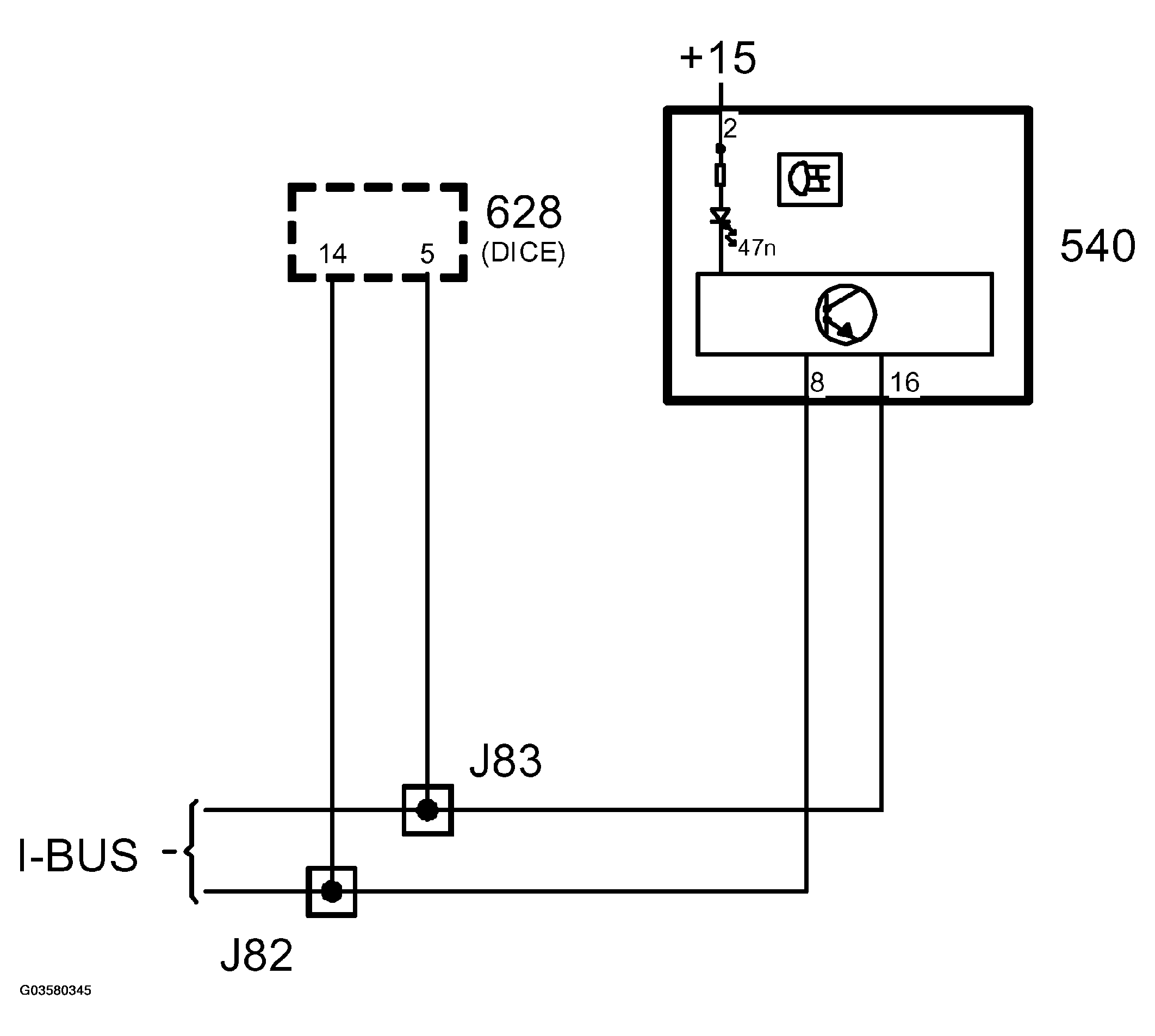

Fig 2: Identifying Communication Circuit Diagram - Indicator Lamp, Rear Fog Light

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The indicator lamp for the rear fog light is situated in the upper right-hand corner and informs the driver when the rear fog light is switched on.

The lamp is powered by the main instrument unit and is grounded internally by the main instrument unit.

DICE sends continuous bus information REAR FOG LIGHT, unit ON/OFF.

On receiving REAR FOG LIGHT ON, the control module grounds the output of the lamp which then lights up.

If DICE changes the status of the bus information to REAR FOG LIGHT OFF, the lamp goes out.
