DTC B1705: Vehicle speed signal faulty: Notes

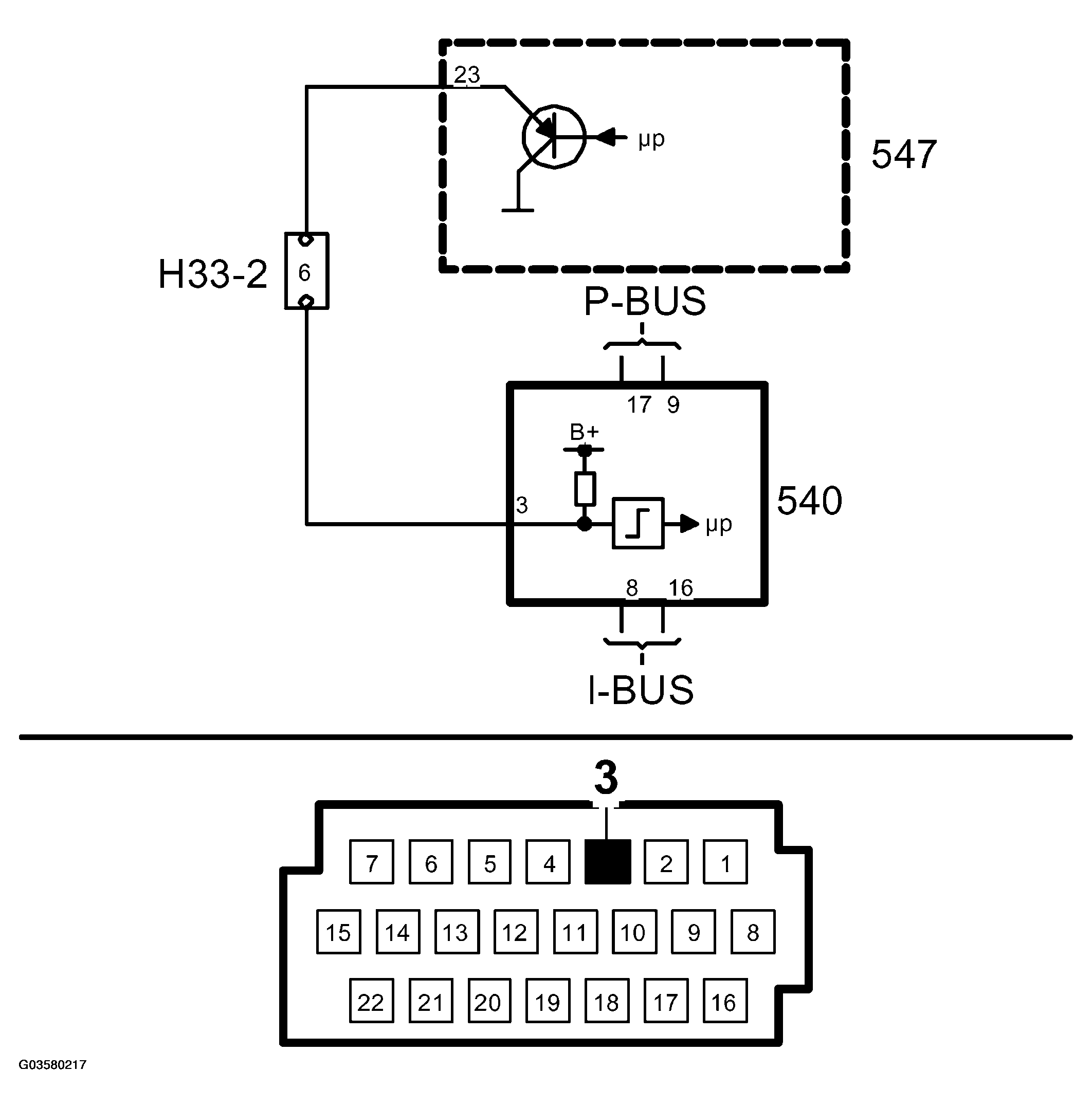

Fig 1: Fault Diagnosis Circuit Diagram - B1705 Vehicle Speed Signal Faulty

G03580217

Courtesy of SAAB-SCANIA OF AMERICA, INC.
