Crimp J108, main wiring harness: Location:

Approx. 50 mm from branching point to grounding point G34P/S towards RH front door

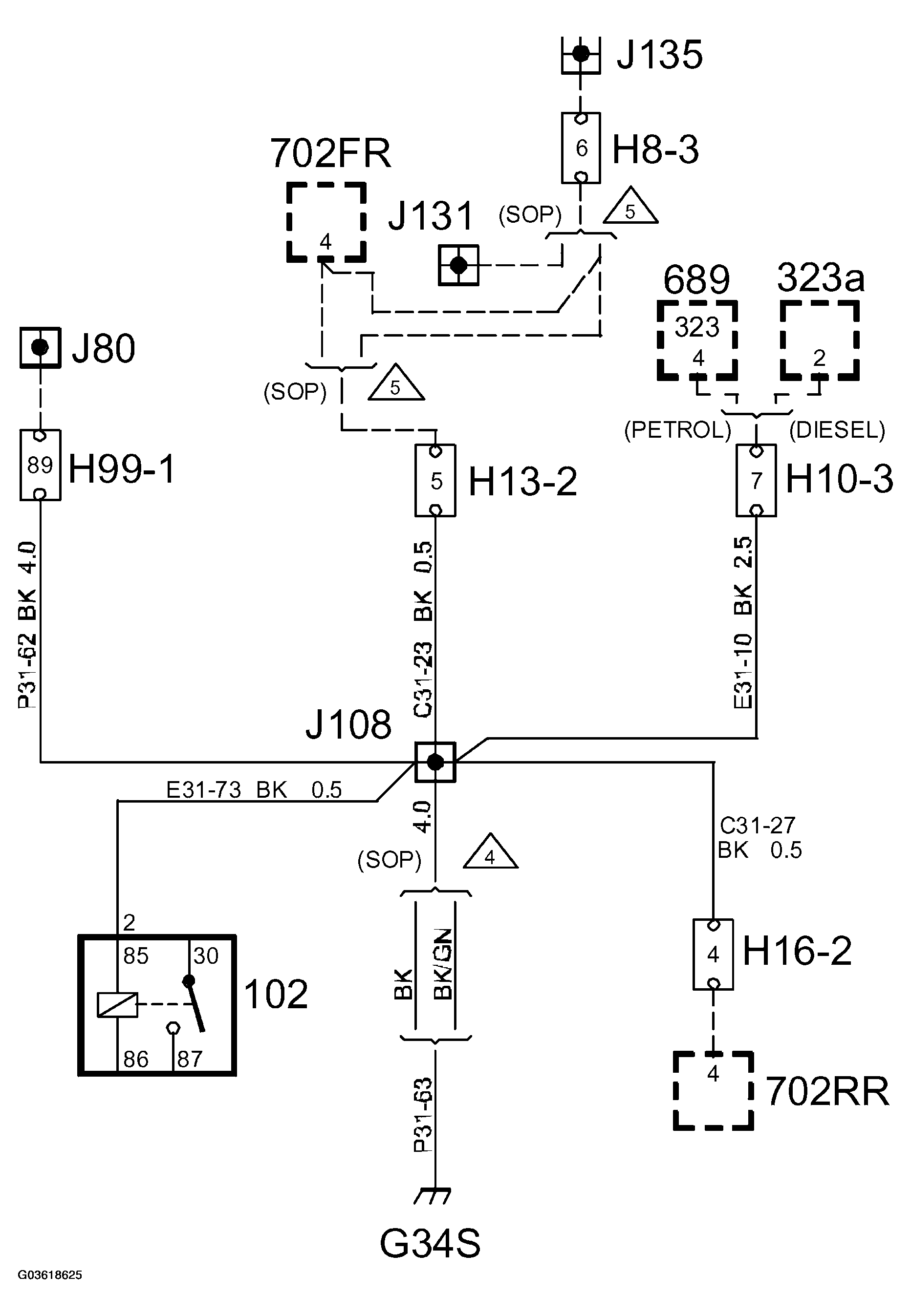

Fig 1: Crimp J108, Main Wiring Harness Circuit Diagram
G03618625Courtesy of SAAB-SCANIA OF AMERICA, INC.
