Tightening torques

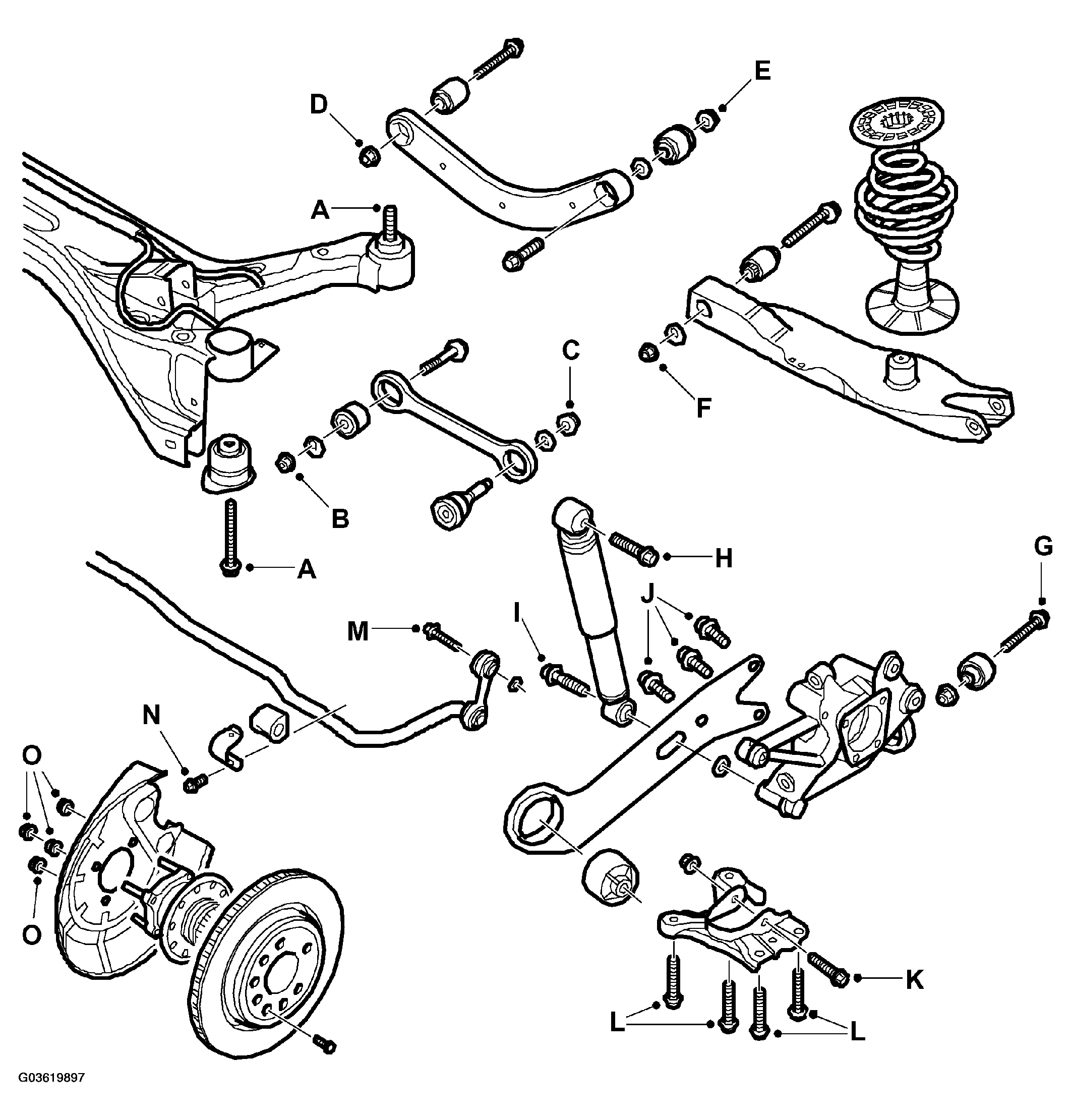

Fig 1: Exploded View Of Rear Suspension System Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Pos.	Designation	Torque
A	Subframe to body	75 Nm +135°	55 lbf ft +135°
B	Toe-in link to subframe (tighten the nut to the adjusting screw)	75 Nm +60°	55 lbf ft +60°
C	Toe-in link to steering swivel member	75 Nm +60°	55 lbf ft +60°
D	Upper suspension arm to subframe	75 Nm +90°	55 lbf ft +90°
E	Upper suspension are to steering swivel member	125 Nm +90°	92 lbf ft +90°
F	Lower suspension arm to subframe (tighten the nut to the adjusting screw)	75 Nm +60°	55 lbf ft +60°
G	Lower suspension arm to steering swivel member	75 Nm +90°	55 lbf ft +90°
H	Dampers to bracket	27 Nm	20 lbf ft
--	Damper bracket to body	53 Nm	39 lbf ft
I	Dampers to steering swivel member	150 Nm	110 lbf ft
J	Longitudinal link to steering swivel member	150 Nm	110 lbf ft
K	Longitudinal link to bush	75 Nm +90°	55 lbf ft +90°
L	Longitudinal link to body	70 Nm +90°	52 lbf ft +90°
M	Anti-roll bar to steering swivel member	53 Nm	39 lbf ft
N	Anti-roll bar to subframe	18 Nm	13 lbf ft
O	Wheel hub to steering swivel member	50 Nm +30°	40 lbf ft + 30°
