To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the retaining spring from the brake caliper.

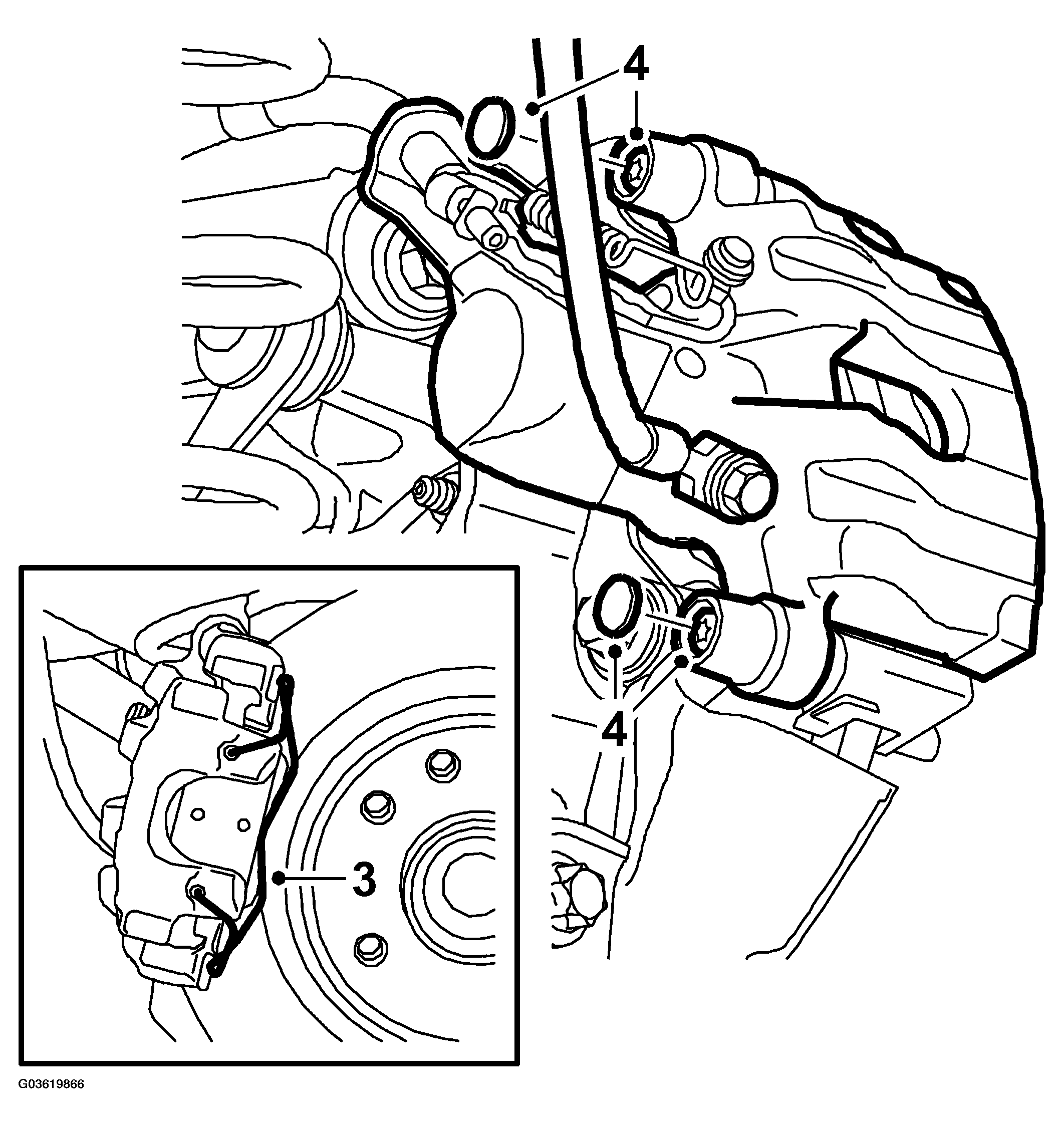

    Fig 1: Illustration For Steps 3-4
    G03619866Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the protective covers. Lift off the hydraulic body and suspend it with a hook in the brake pipe holder.
    NOTE: Make sure the brake pipe is not damaged.

    Remove the outer brake pad.

  5. Remove the brake caliper holder.

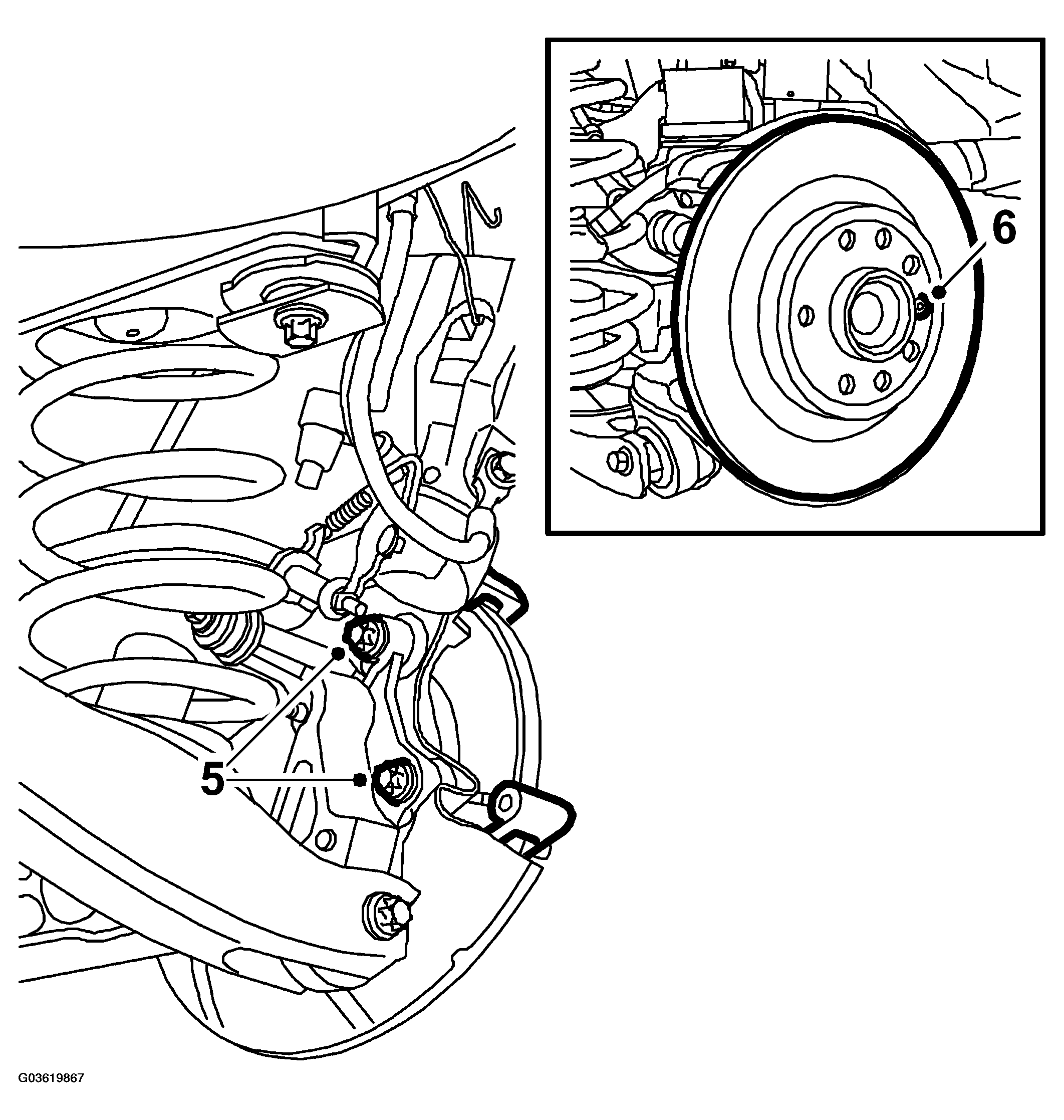

    Fig 2: Illustration For Steps 5-6
    G03619867Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the brake disc.
  7. Remove the wheel sensor connector.

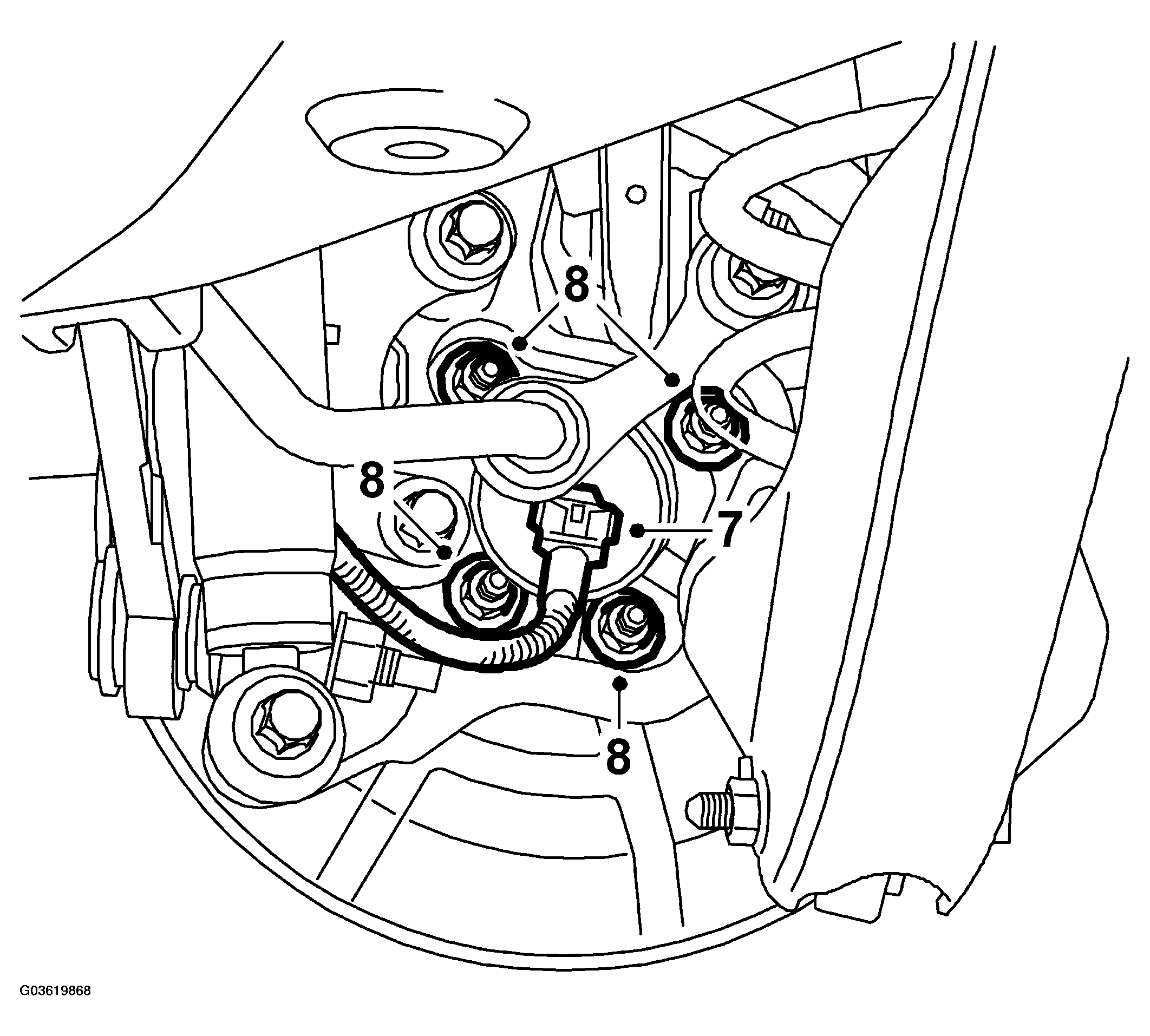

    Fig 3: Illustration For Steps 7-8
    G03619868Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the hub and the brake shield.
