To remove

  1. Slacken the parking brake lever adjustment slightly.
  2. Raise the car.
  3. Remove the wheel.
  4. Remove the parking brake cable from the brake caliper.
  5. Fit the wiring harness for the wheel sensor from the upper suspension arm.

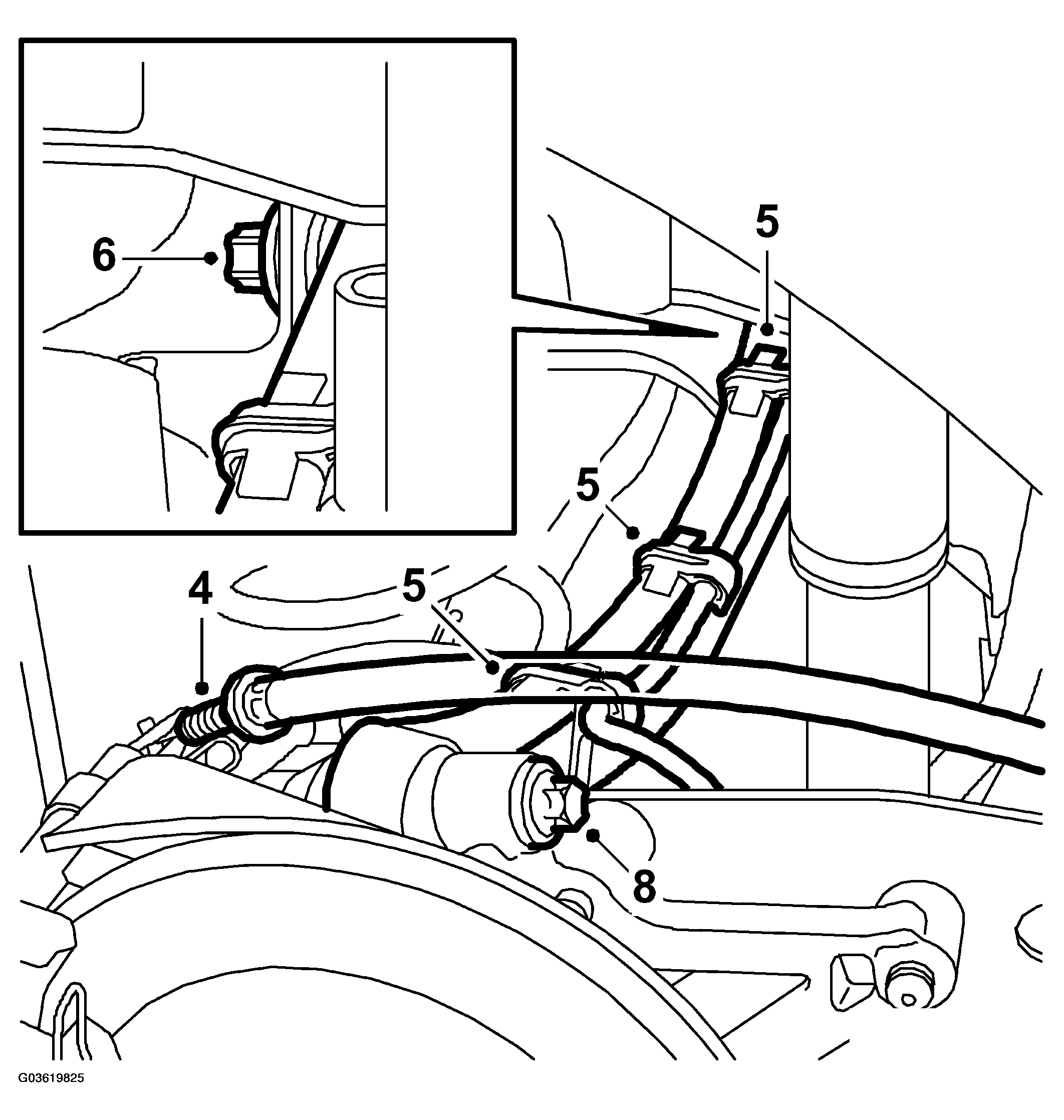

    Fig 1: Illustration For Steps 4-6, 8
    G03619825Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the upper suspension arm mounting from the subframe.
  7. Lift the lower suspension arm with a jack in order to relieve the upper suspension arm mounting to the steering swivel member from bearing weight.
  8. Remove the upper suspension arm mounting from the steering swivel member.
  9. Remove the upper suspension arm.
