To fit

  1. Fit the upper suspension arm into place.
  2. Fit the bolts for the upper suspension arm mounting to the subframe.

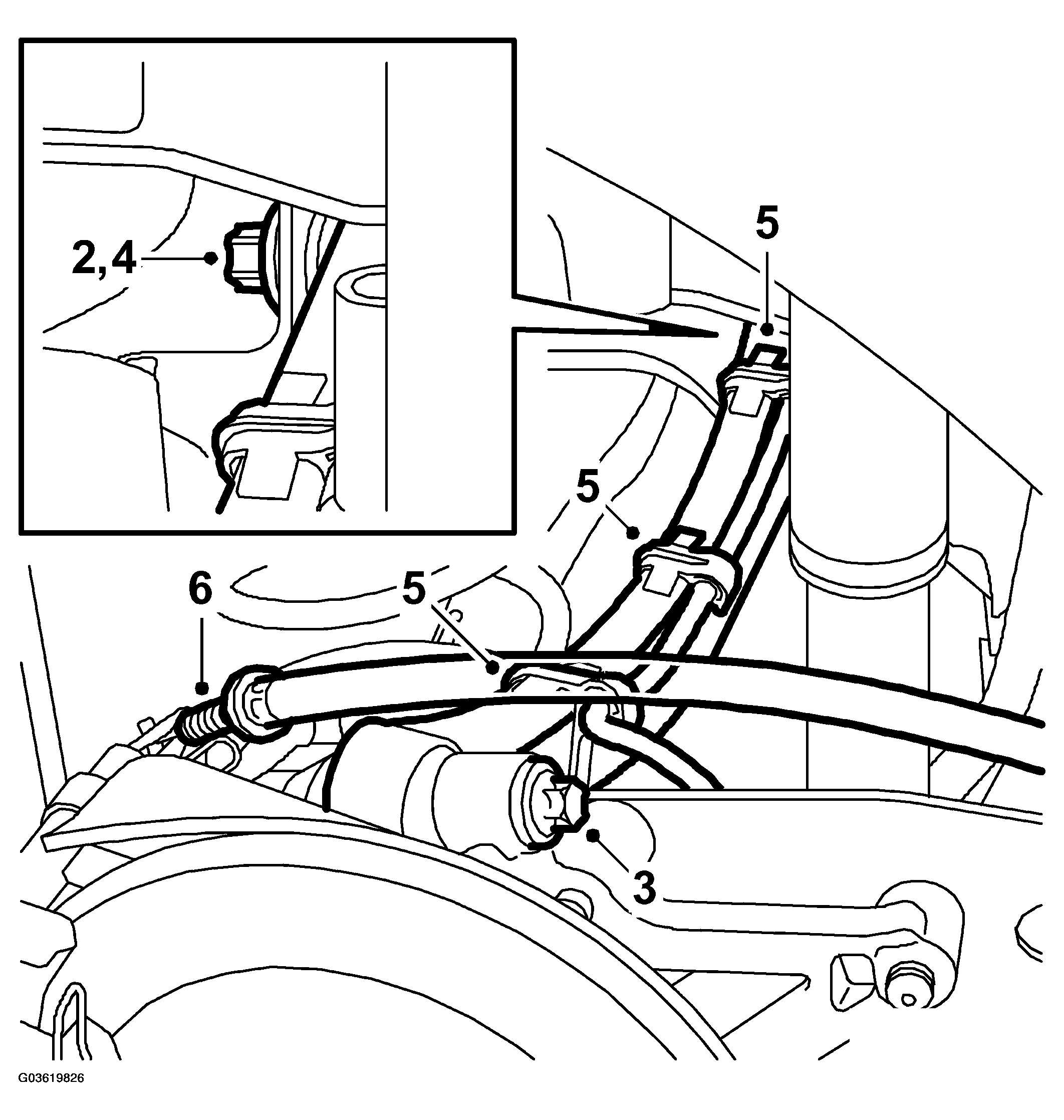

    Fig 1: Illustration For Steps 2-6
    G03619826Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the upper suspension arm to the swivel member.

    Tightening torque 125 Nm +90° (92 lbf ft +90°)

  4. Lift the upper suspension arm to normal position and fit the nut to the suspension arm mounting to the subframe.

    Tightening torque 75 Nm +90° (55 lbf ft +90°)

  5. Fit the wiring harness for the wheel sensor to the upper suspension arm.
  6. Fit the cable for the parking brake to the brake caliper. Adjust the parking brake.
  7. Fit the WHEEL. See WHEEL & TIRES .
  8. Carry out four wheel checking and alignment, see FOUR WHEEL ALIGNMENT  .
