To remove

  1. Raise the car.
  2. Remove the rear wheel.
  3. Remove the wheel sensor connection to avoid damage to the wheel sensor.

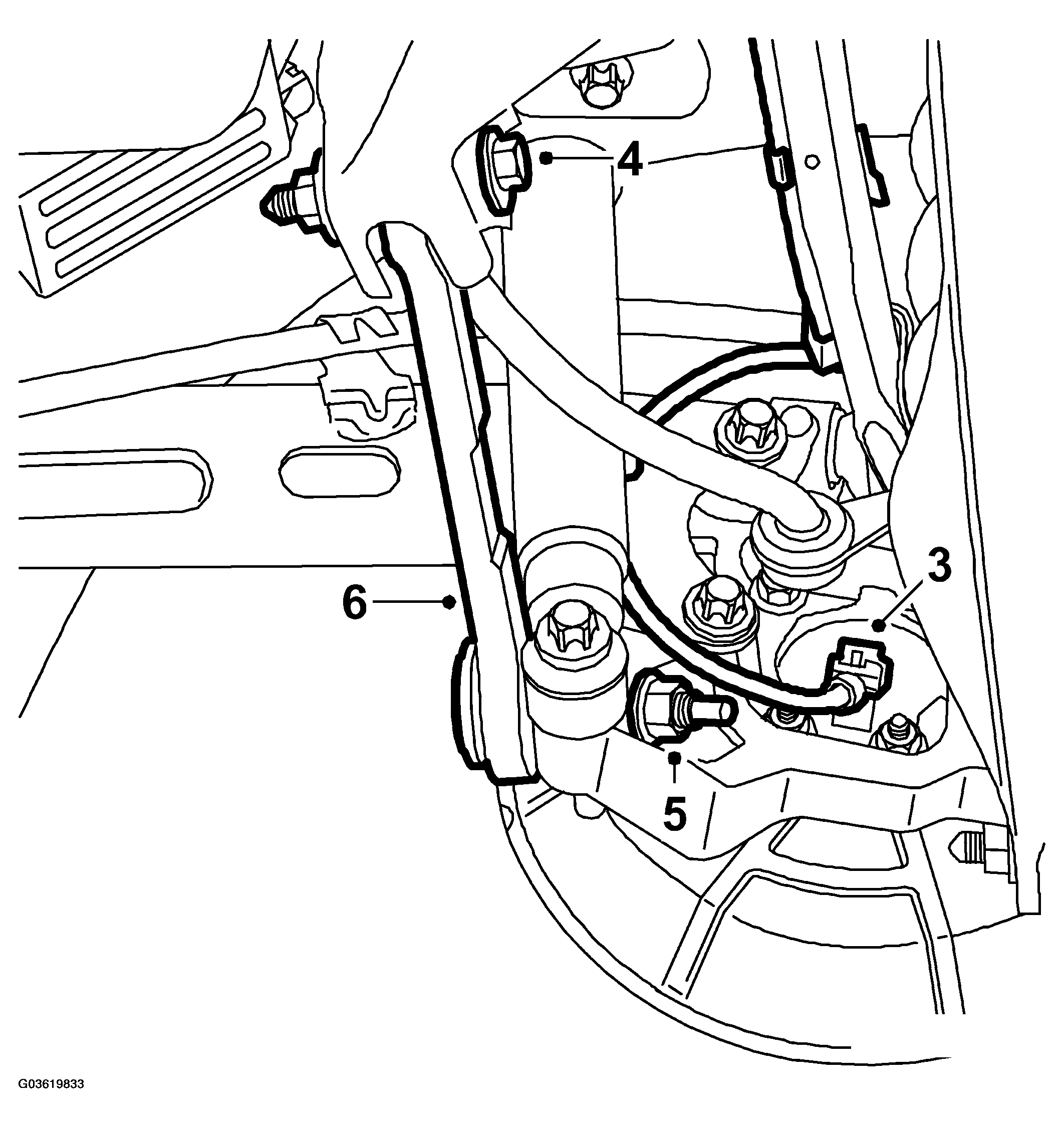

    Fig 1: Illustration For Steps 3-6
    G03619833Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Mark and remove the toe-in link adjusting screw.
  5. Clean and lubricate the threads in the outer toe-in link retaining bolts.

    Remove the nut holding the toe-in link to the steering swivel member. Hold with a 10 mm sleeve in the outer mounting.

  6. Remove the toe-in link.
