To fit

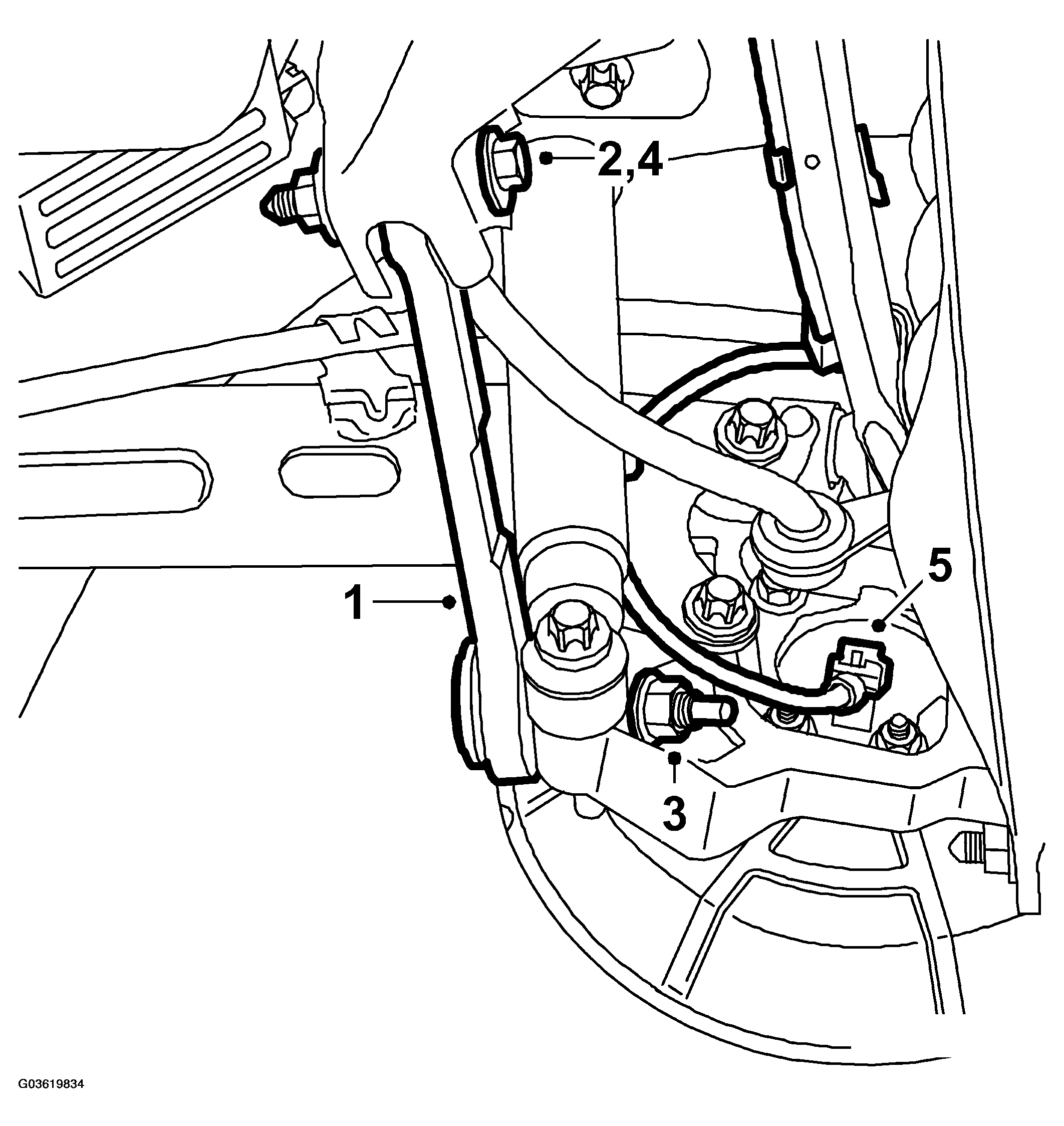

- Put the toe-in link into place.
- Fit the adjusting screw and washer to the toe-in link. Fit the nut loosely.
- Fit the nut which holds the toe-in link to the steering swivel member. Hold with a 10 mm wrench. Tighten the toe-in link nut with the correct torque, use 89 96 613 SLEEVE, MACPHERSON STRUT
.
Tightening torque 75 Nm +60° (55 lbf ft +60°)
- Lift the lower link arm to normal position and tighten the nut of the adjustment bolt. Make sure that the adjustment bolt marking is set correctly.
Tightening torque 75 Nm +60° (55 lbf ft +60°)
- Connect the connector to the wheel sensor.
- Fit the REAR WHEELS .
- Lower the car to the floor.
- Carry out four wheel checking and alignment, see FOUR WHEEL ALIGNMENT .
