To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the spring from the brake caliper.

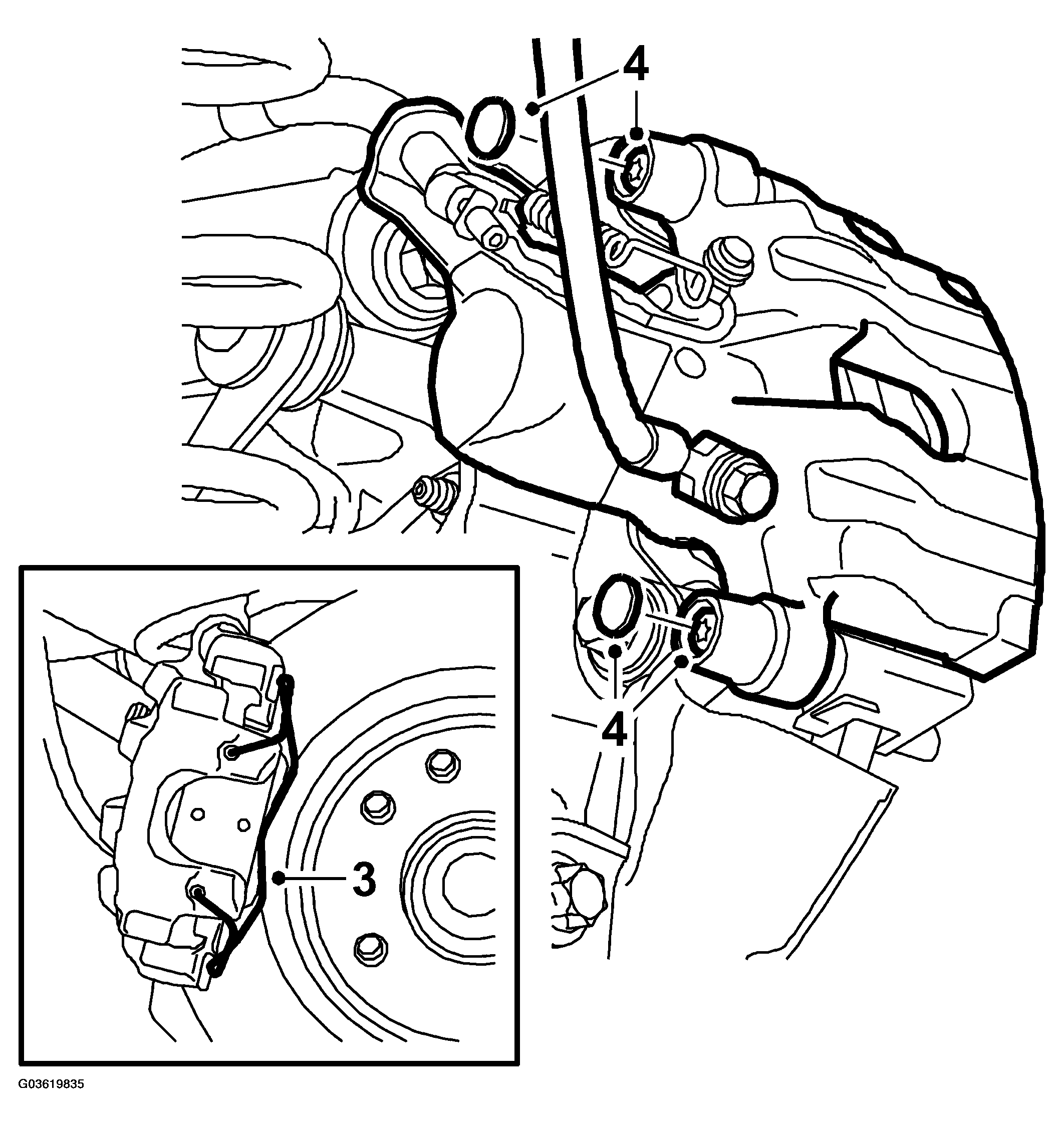

    Fig 1: Illustration For Steps 3-4
    G03619835Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the protective covers.

    Remove and move aside the hydraulic body.

    Remove the outer brake pad.

  5. Compress the spring with 88 18 791 SPRING COMPRESSOR  and the small jaws and lift out the spring. Remove the spring from the tool.
    Fig 2: Illustration For Step 5
    G03619836Courtesy of SAAB-SCANIA OF AMERICA, INC.
