To remove

  1. Remove the SUBFRAME  .
  2. Remove the impact buffer.

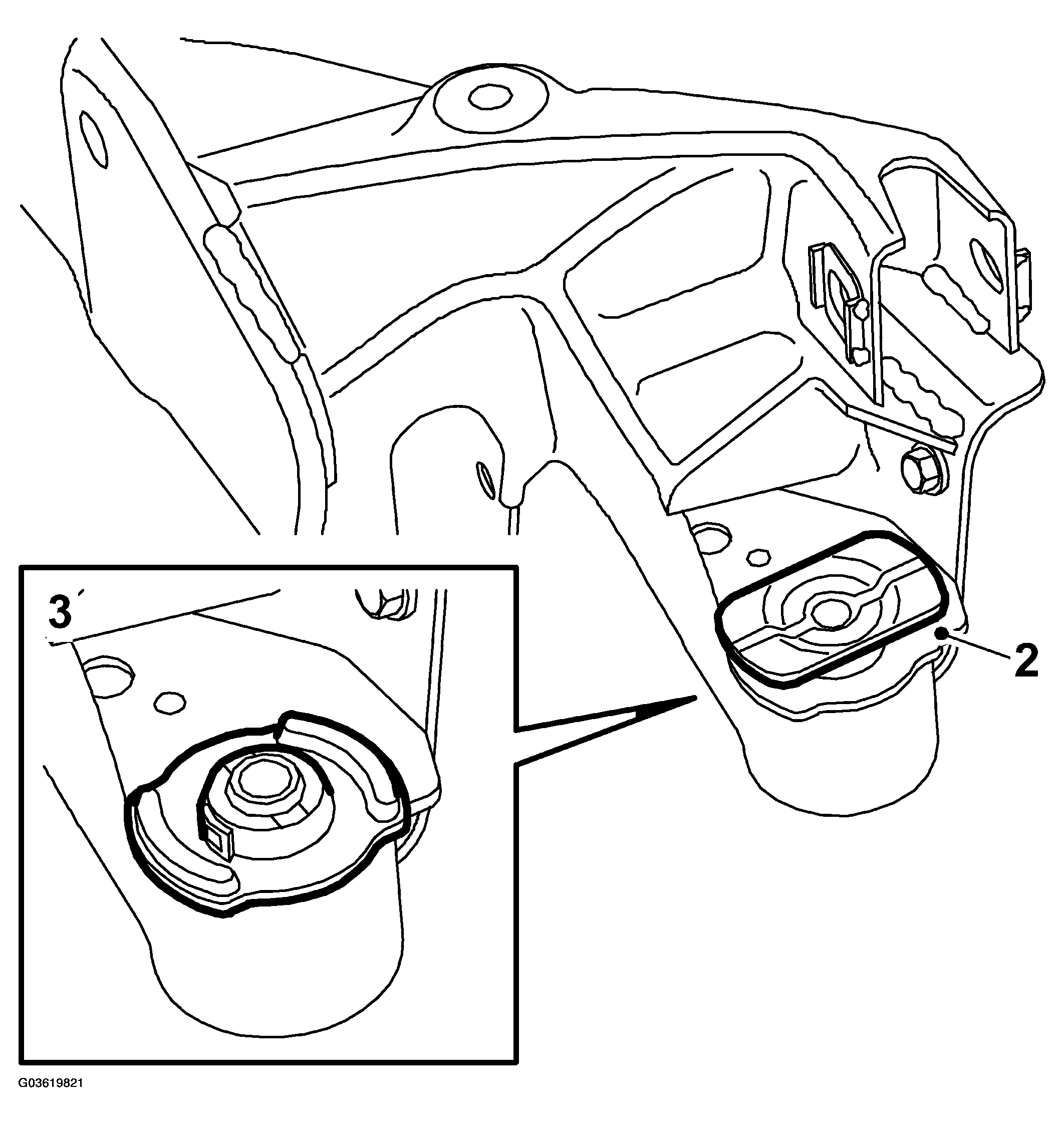

    Fig 1: Illustration For Steps 2-3
    G03619821Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Cut away the rubber. Saw or cut a groove on both sides. Break off the flange from the bush to make room for the support.
  4. Press out the bush using the pullrod from 89 96 779 PRESS SLEEVE SET, FRONT ASSEMBLY  and 89 96 928 REMOVAL TOOL, REAR SUBFRAME BUSHES  .

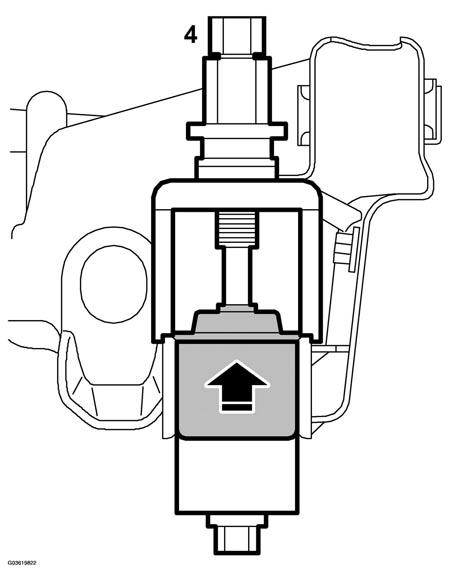

    Fig 2: Illustration For Step 4
    G03619822Courtesy of SAAB-SCANIA OF AMERICA, INC.
