To fit

  1. Press in the bush using the pullrod from 89 96 779 PRESS SLEEVE SET, FRONT ASSEMBLY  and 89 96 910 FITTING TOOL, REAR SUBFRAME BUSHES  .

    Fit the bush with the rubber heels in the car's longitudinal direction.

    Make sure the bush is pressed in straight.

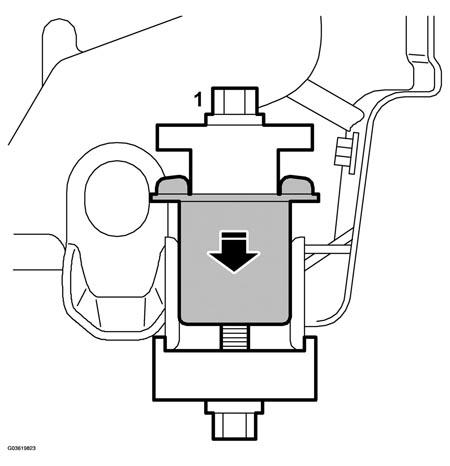

    Fig 1: Illustration For Step 1
    G03619823Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the impact buffer.

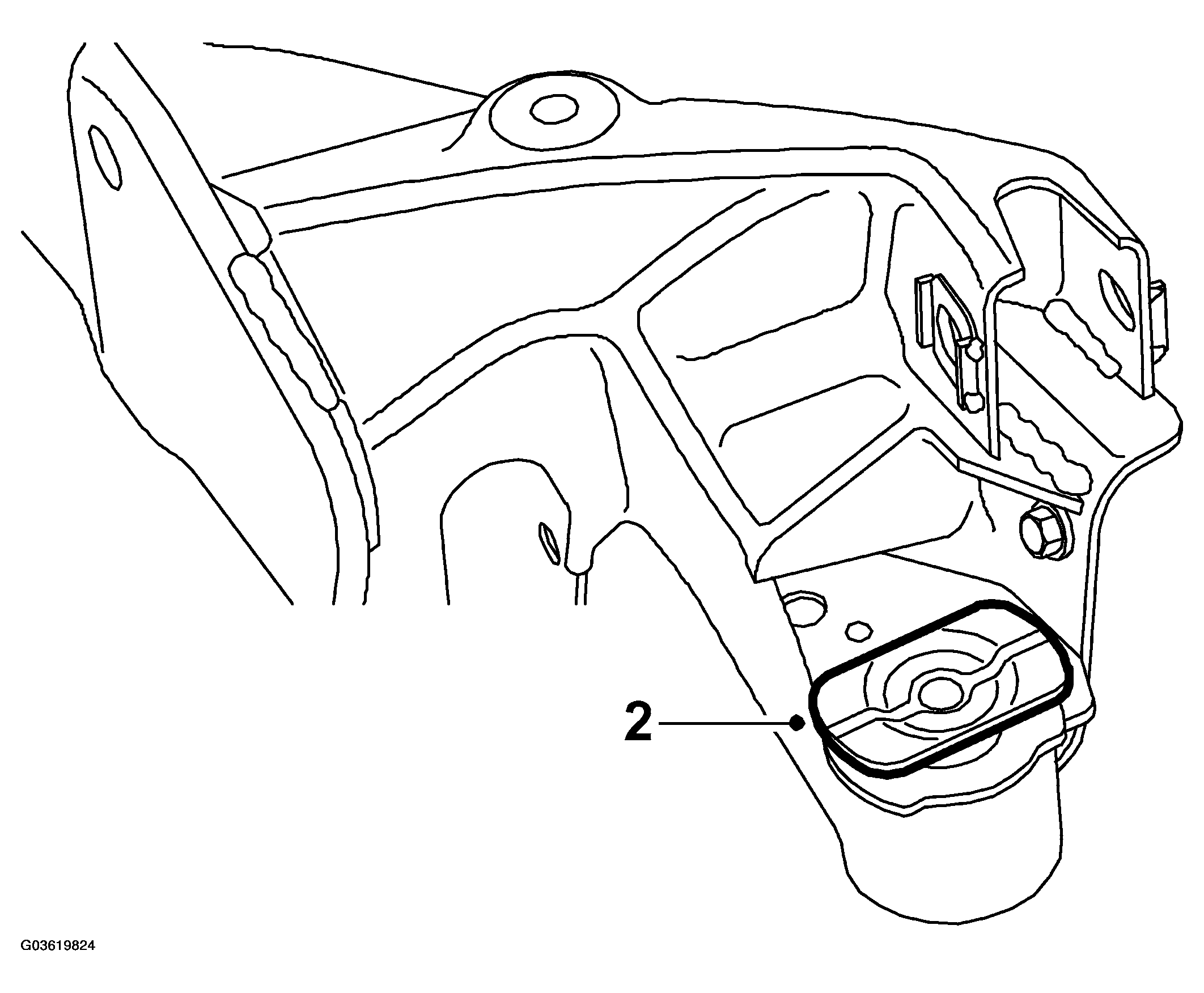

    Fig 2: Illustration For Step 2
    G03619824Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the SUBFRAME  .
