To fit

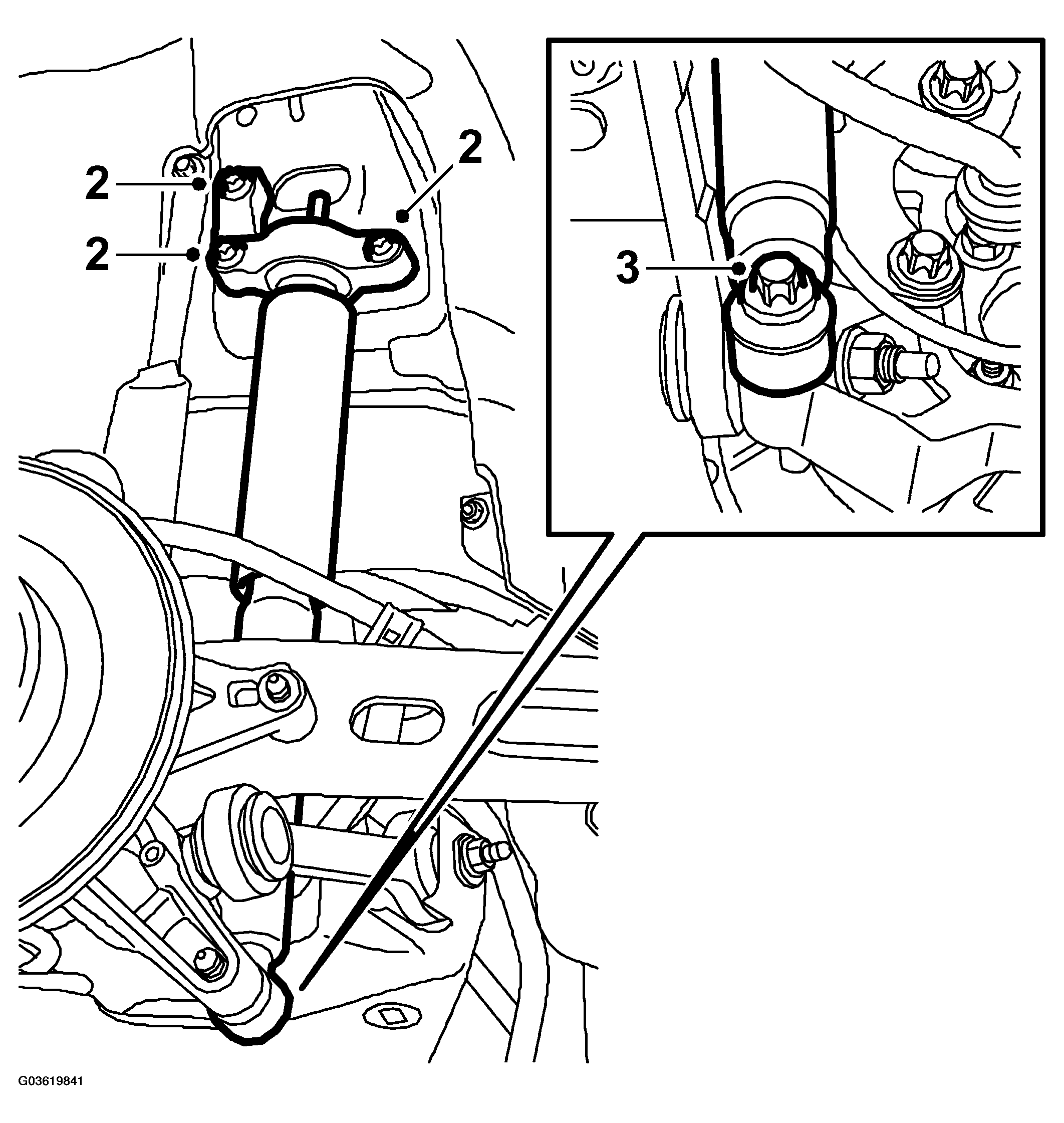

- Fit the bracket to the damper.
Tightening torque 27 Nm (20 lbf ft)
- Fit the damper bracket to the body.
Tightening torque 53 Nm (39 lbf ft)
- Fit the damper to the steering swivel member.
Tightening torque 150 Nm (111 lbf ft)
- Fit the wheel.
- Lower the car to the floor.
