Dampers and bushes, checking

Check the front and rear dampers.

1. Take the weight off the rear suspension and lift the steering swivel member one side at a time with a jack while checking the bushes.
2. There should be no oil on the outer damper cylinder.

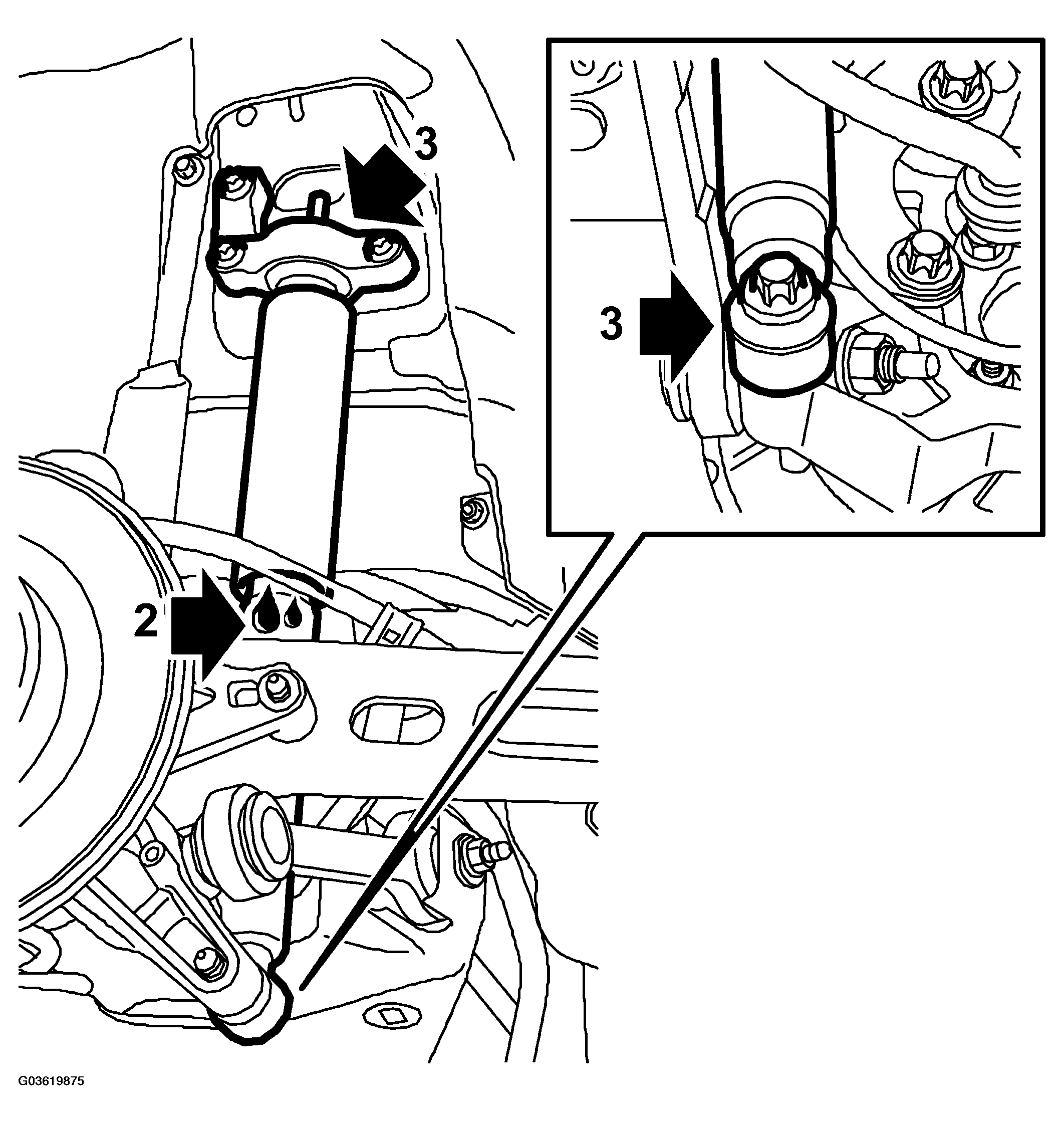

   Fig 1: Illustration For Steps 2-3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Check the condition of the damper bushes and support bearings.
4. Check the rubber bushes for cracks and other damage in the following locations.

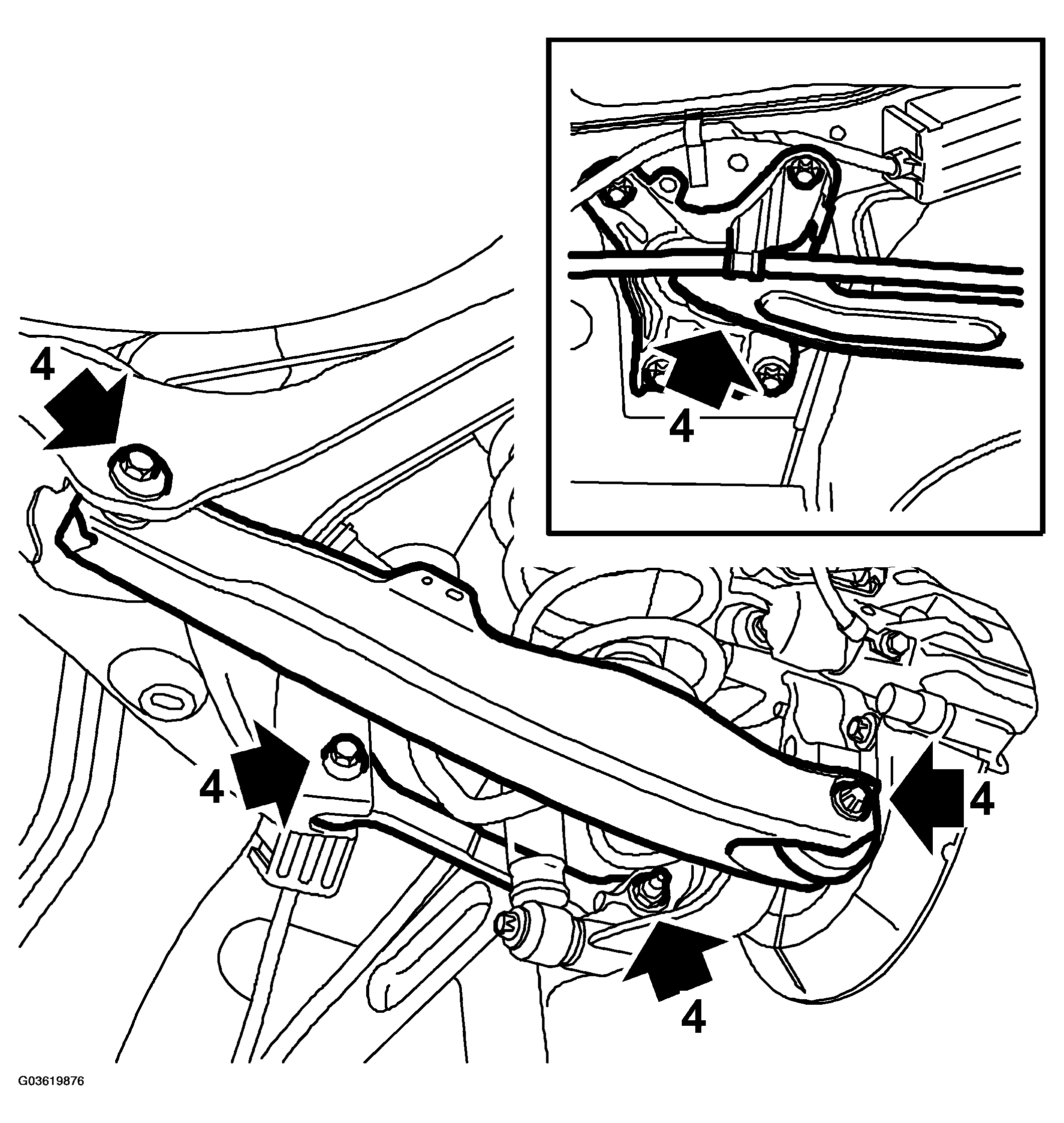

   Fig 2: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   • Lower suspension arm mountings in subframe and steering swivel member.
   • Upper suspension arm mounting in subframe.
   • Toe link mounting in subframe.
   • Longitudinal link mounting in body.
5. Check ball joints for play in the following locations.

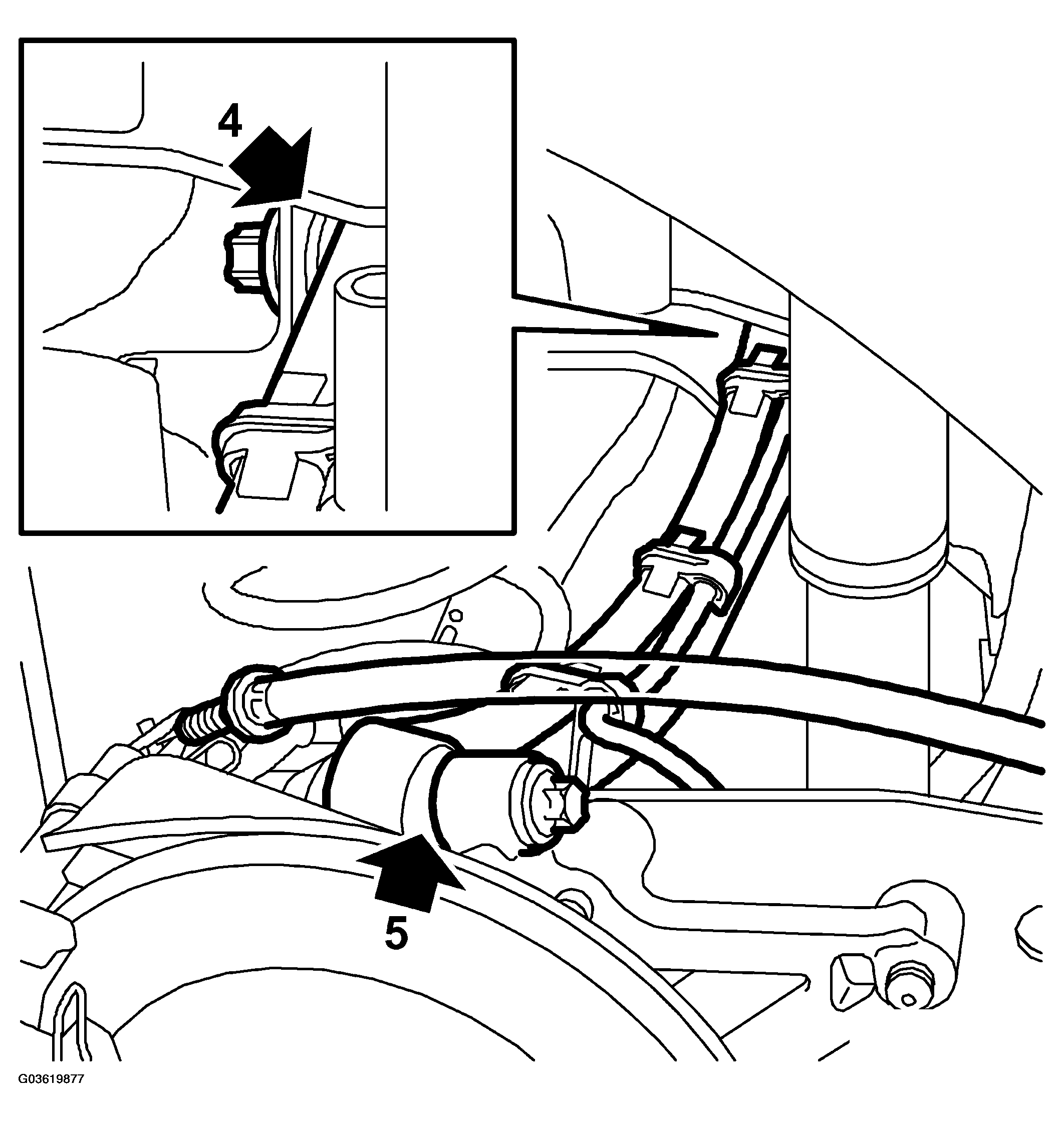

   Fig 3: Illustration For Steps 4-5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   • Upper suspension arm mounting in steering swivel member.
   • Toe link mounting in steering swivel member.
6. Check the bushes in the suspension arm front and rear mountings on the front subframe for cracks and other damage.

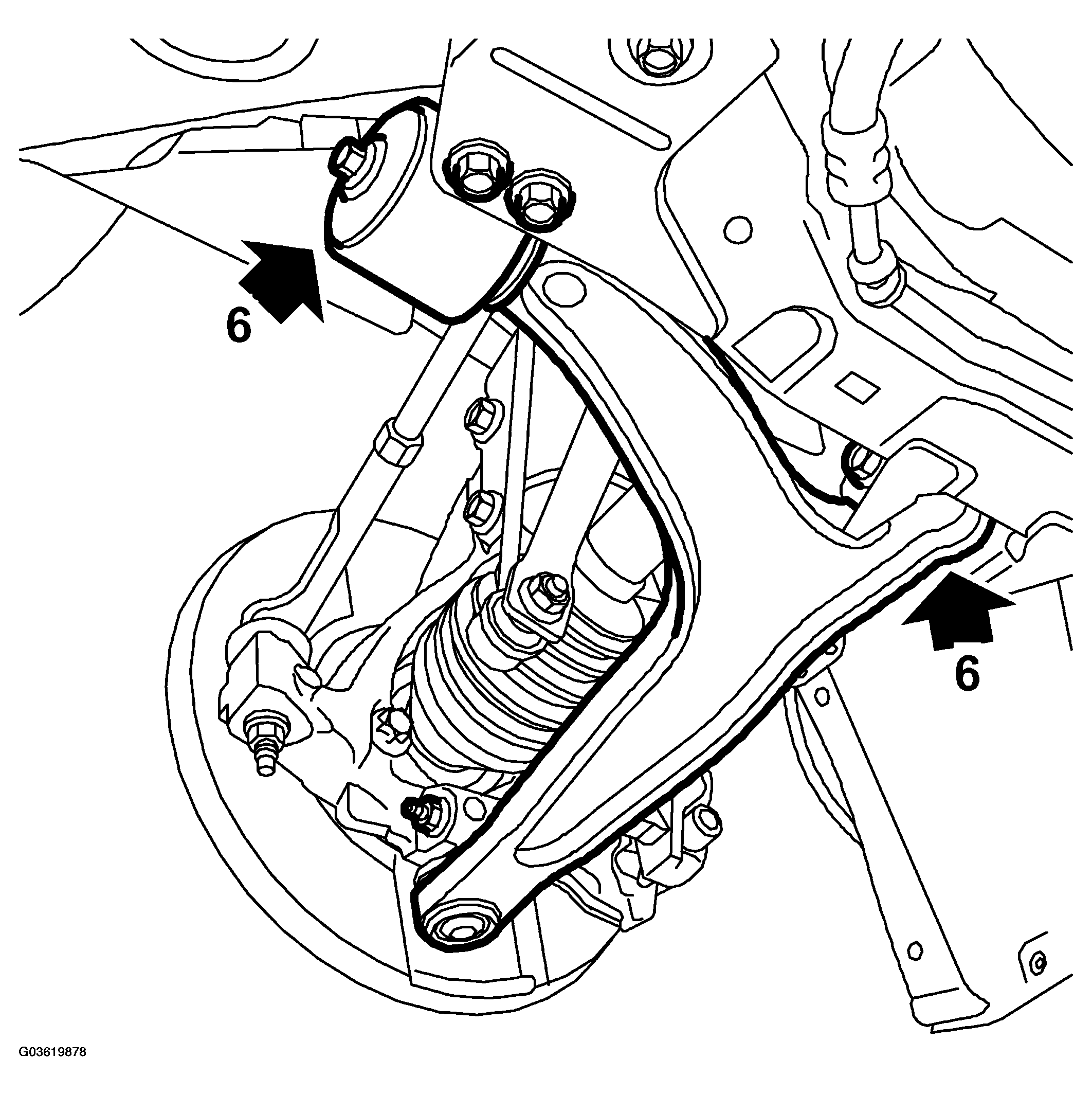

   Fig 4: Illustration For Step 6

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
7. Check the ball joints in the suspension arm mounting in the steering swivel member for play.

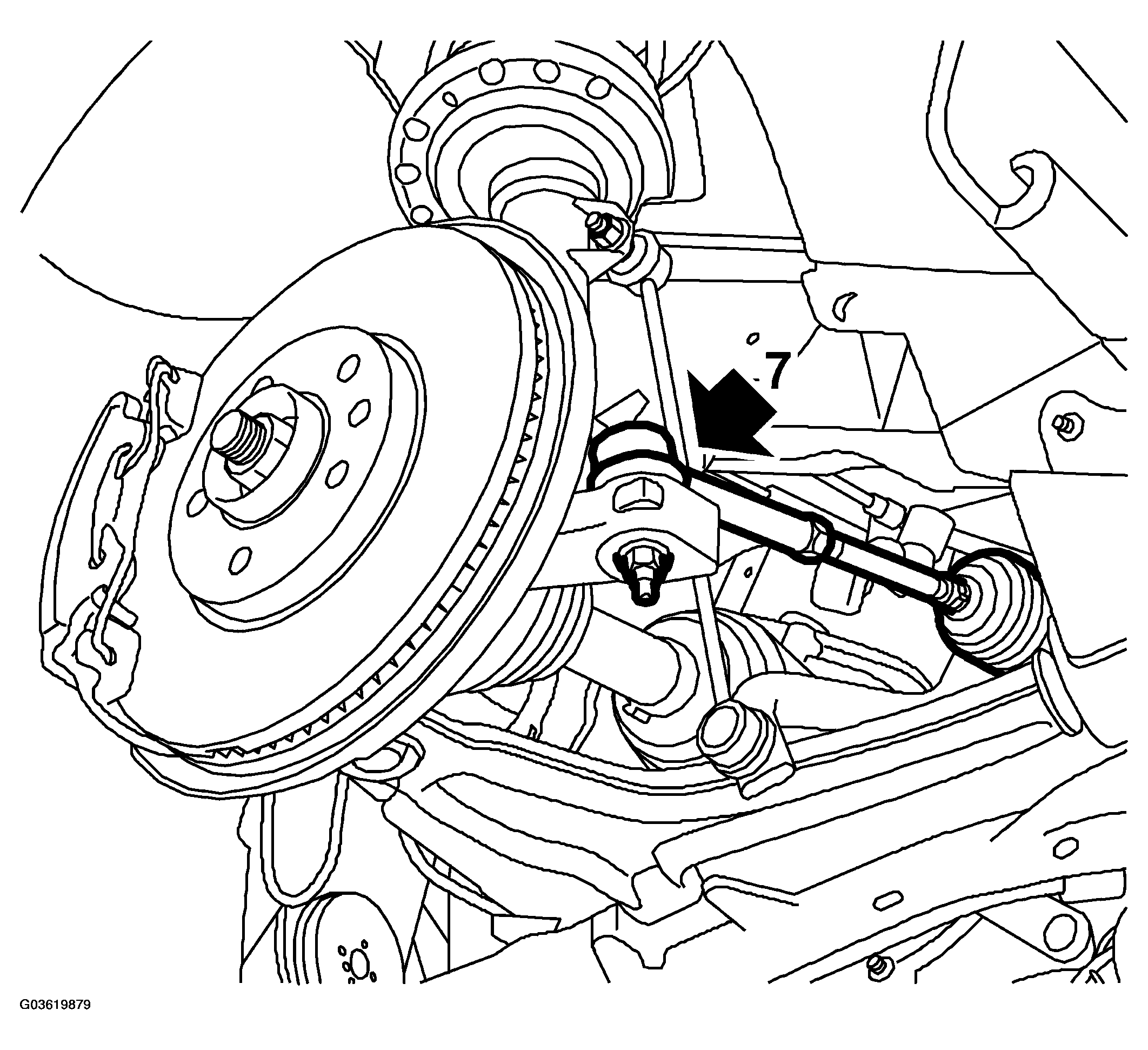

   Fig 5: Illustration For Step 7

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
