To fit

  1. Position the bush. An imaginary line from the recesses in the centre of the bush should be aligned with the upper edge of the upper hole in the longitudinal link.

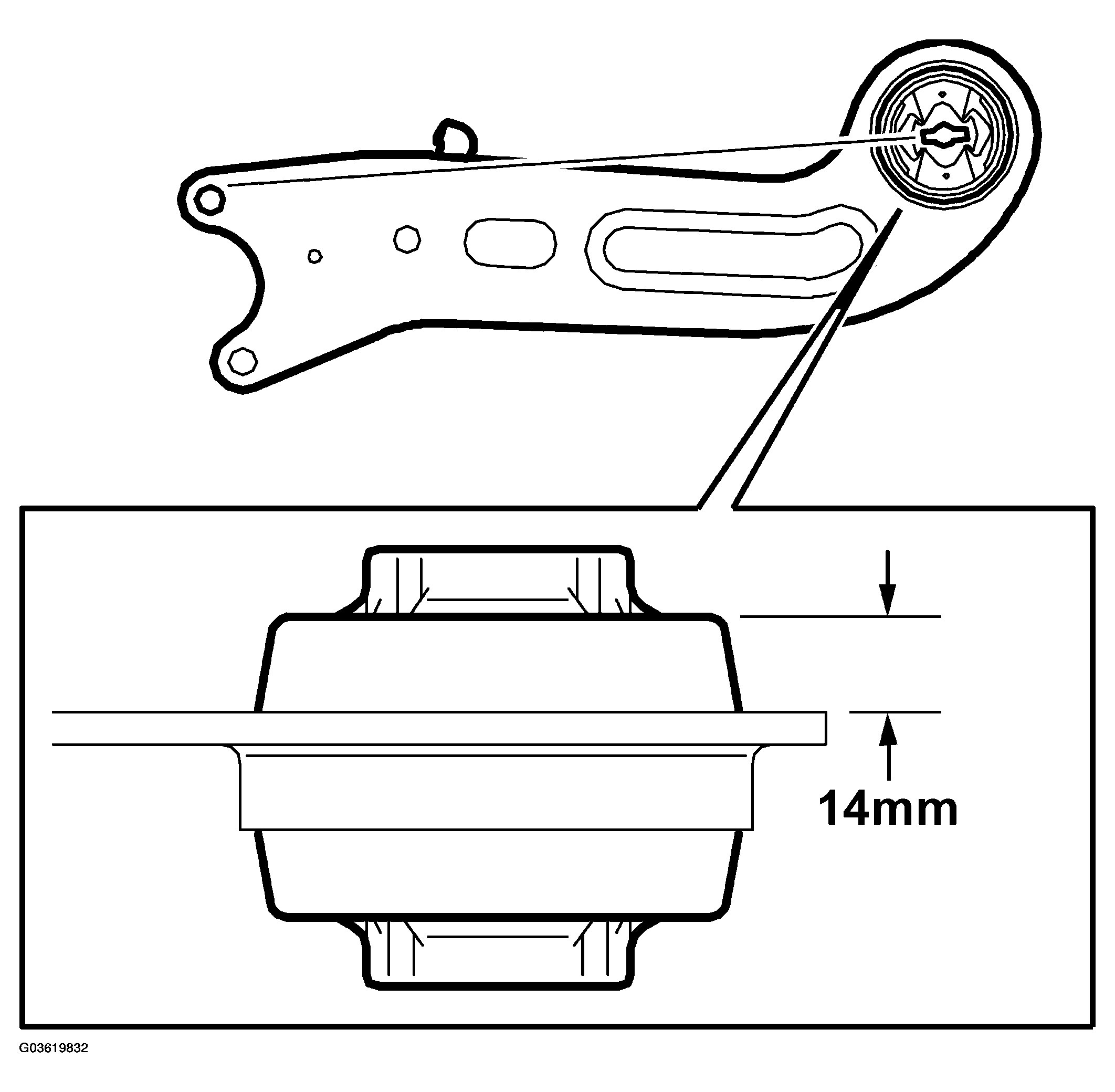

    Fig 1: Longitudinal Link Upper Hole Alignment Dimension
    G03619832Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Use 83 90 122 DRIFT  and 87 91 188 SUPPORT, FOR REMOVING PINION SHAFT  to press in the bush. The bush should protrude 14 mm above the flat side of the link arm.
  3. Fit the LONGITUDINAL LINK  .
