To remove

  1. Raise the car.
  2. Detach the anti-roll bar from the steering swivel members.

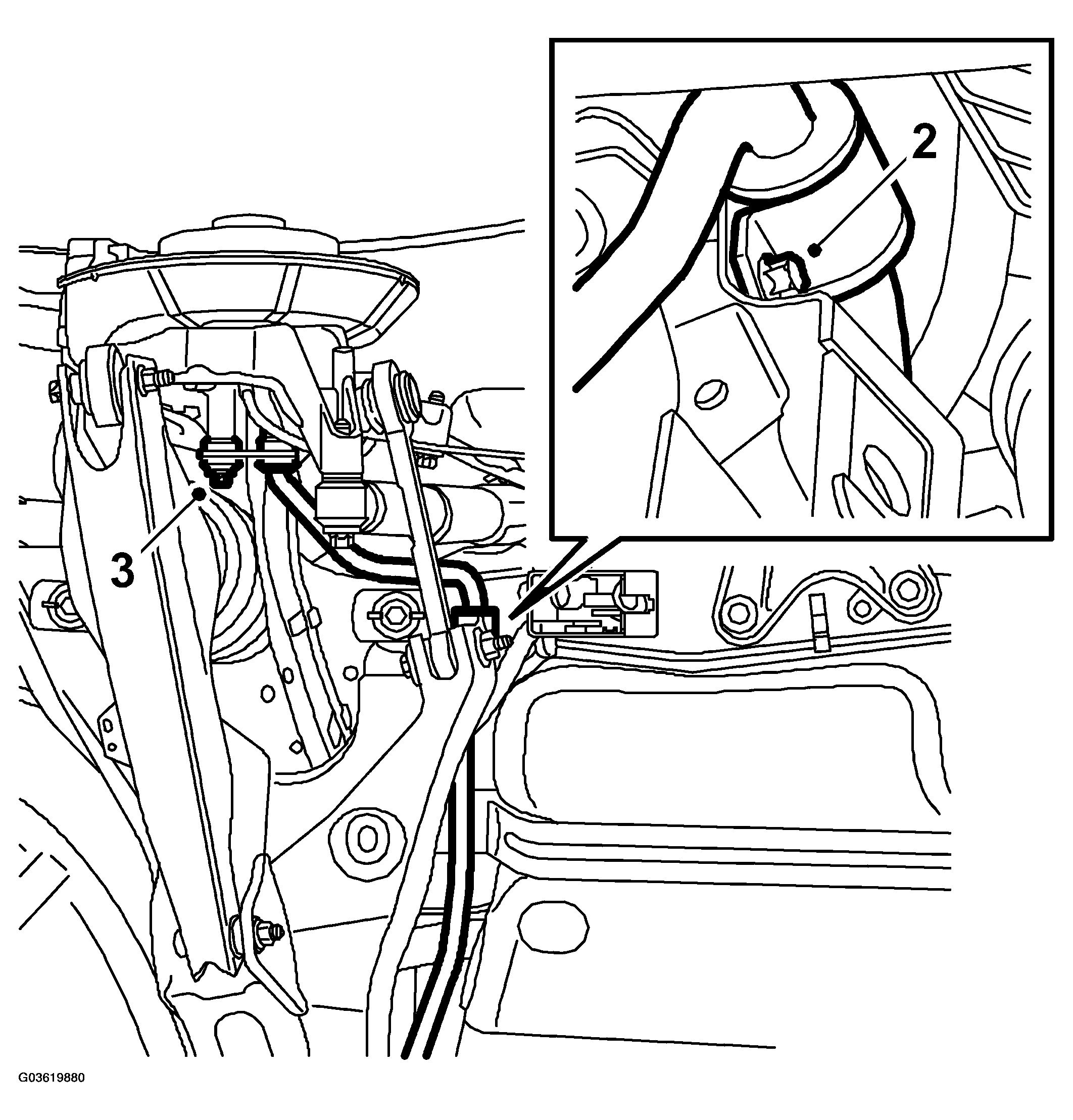

    Fig 1: Illustration For Steps 2-3
    G03619880Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the anti-roll bar mountings from the subframe.
  4. Remove the bushes from the anti-roll bar.
